The wedi Fundo® Linear Shower Kit offers a fully-sealed, factory-integrated waterproof drain assembly, designed for customizable shower floor systems with linear drainage. It features a true one-way slope towards the drain, perfect for tub-to-shower conversions without needing to move the floor drain pipe. The system ensures a clean, professional tile installation with large, tileable areas around the drain.
Key Features & Benefits
- Fully-Sealed Drain Assembly: The only market solution with a factory-integrated waterproof drain.
- One-Way Slope: Ensures proper water drainage and easy installation, especially for tub-to-shower conversions.

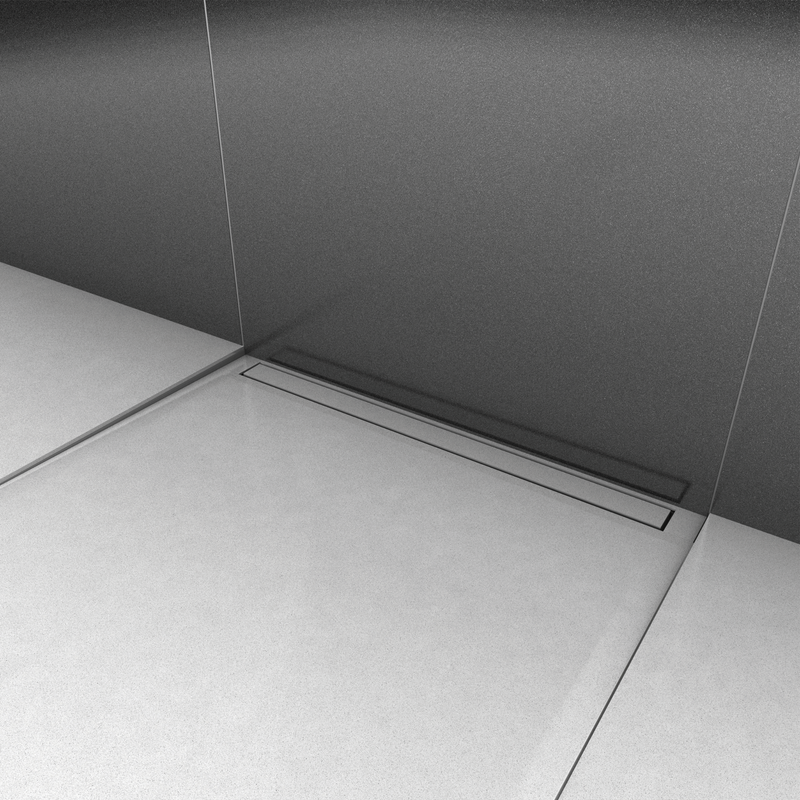

- Tileable Design: The surface around the linear drain is perfectly sloped for a clean, professional finish.
- Adjustable Drain Cover: Stainless steel drain cover can be adjusted to match your tile or stone height.

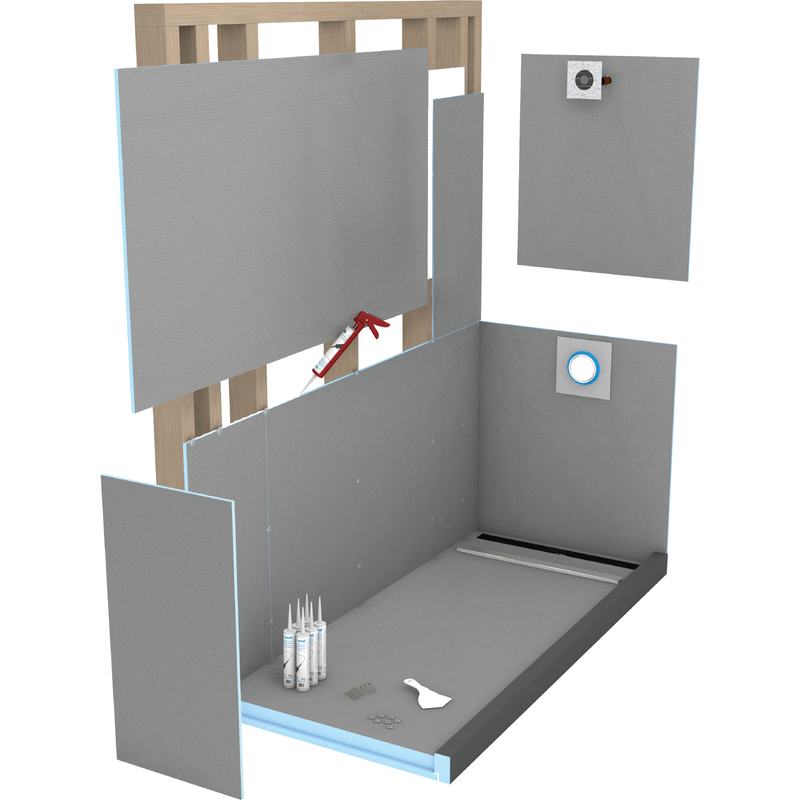

- Comprehensive Kit: Includes all necessary components for installation, such as wedi® joint sealant, building panels, and a shower curb.
- Optional Add-Ons: Soap niches, seats, and benches are available separately to customize your shower.

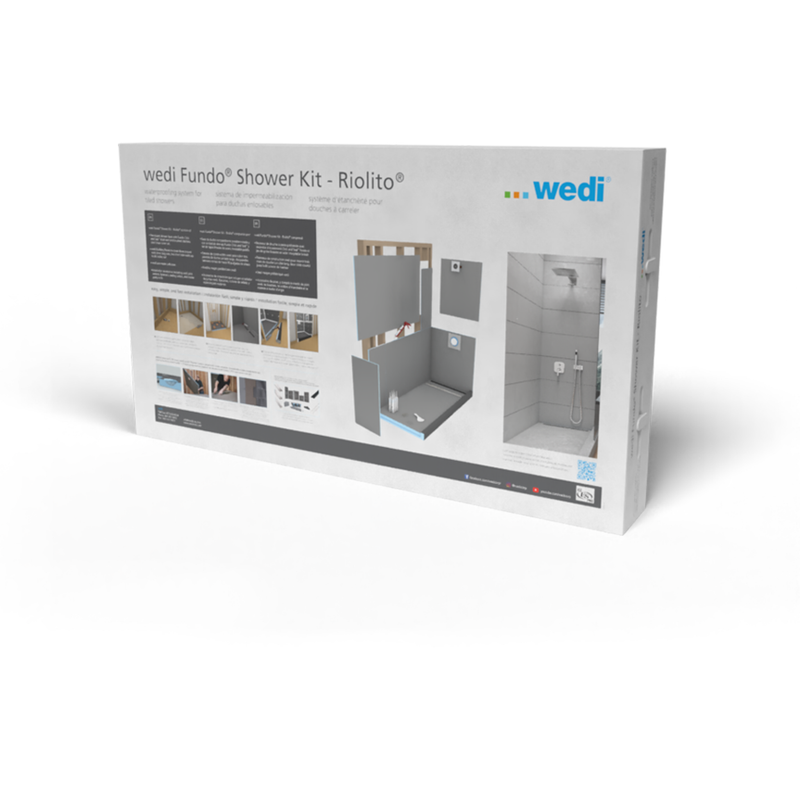

What's Included
- 8 10.5 oz tubes of wedi® Joint Sealant
- 6 pieces of wedi 36 in. x 60 in. x 1/2 in. Building Panels
- 1 wedi Fundo® Linear Shower Module 32 in.
- 1 wedi Fundo® Linear Extension Module
- 1 wedi Fundo® Linear Stainless Steel Drain Cover
- 1 wedi® Shower Curb, Lean
- 1 wedi® Fastener Kit (100 screws/washers)
- 1 wedi® Corner Putty Knife
- 1 wedi Fundo® Click and Seal® Drain Kit
- 1 wedi® Subliner Dry Mixing Valve Seal
- 1 wedi® Subliner Dry Pipe Seal
| Specifications | Details |
|---|---|
| Tensile Strength | 65 psi (ASTM C297) |
| Shear Strength | 216 psi (Dry, 4 weeks), 217 psi (Dry, 12 weeks), 201 psi (Wet, 100 days) |
| Waterproof | Passed (ASTM D4068 / ANSI A118.10-1999) |
| Capillarity | 0 |
| Fungus/Bacteria Resistance | Passed (ASTM G21, No Growth) |
| Linear Variation | Passed (less than 0.07%) |
| Floor & Trench Drain Compliance | Passed (ASME A112.18.2, ICC PMG 1189) |
| Seam Strength | 36.4 lbs (ASTM D751-11) |
Order Today and enhance your shower installation with this reliable, customizable, and professional solution!
