Waterproofing Accessories

Waterproofing accessories are used to complete specific details within compatible tile waterproofing systems. Bands, corners, pipe seals, valve seals, patches, and sealants can treat seams, changes of plane, plumbing penetrations, curbs, and transitions where the primary waterproofing membrane requires additional components to maintain continuity.

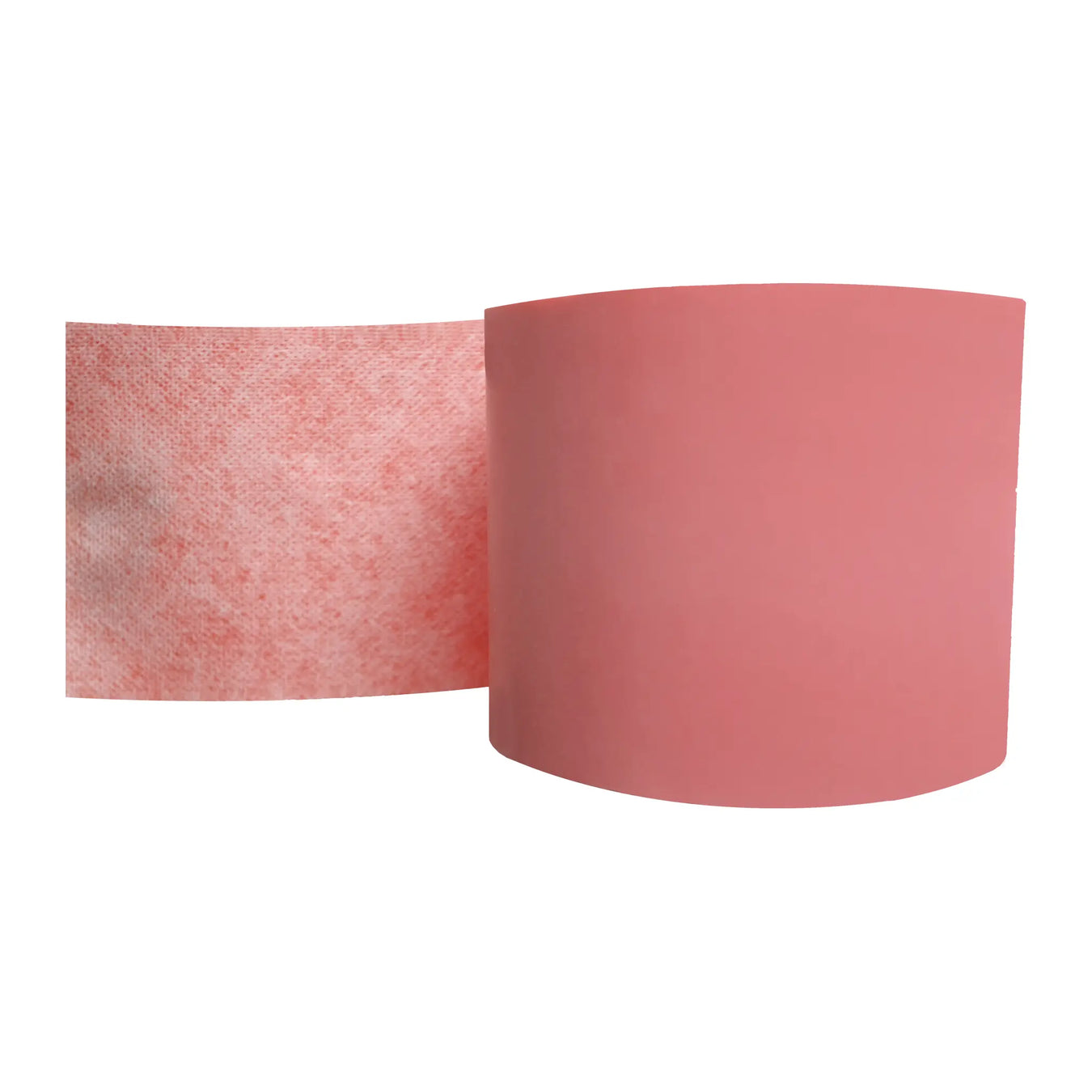

Waterproofing band is used with compatible membrane systems to treat seams, joints, and transitions between waterproof surfaces. Common applications include wall-to-floor transitions, adjoining walls, membrane seams, and connections to other shower components. Required overlap, bonding materials, and installation methods depend on the specific waterproofing system.

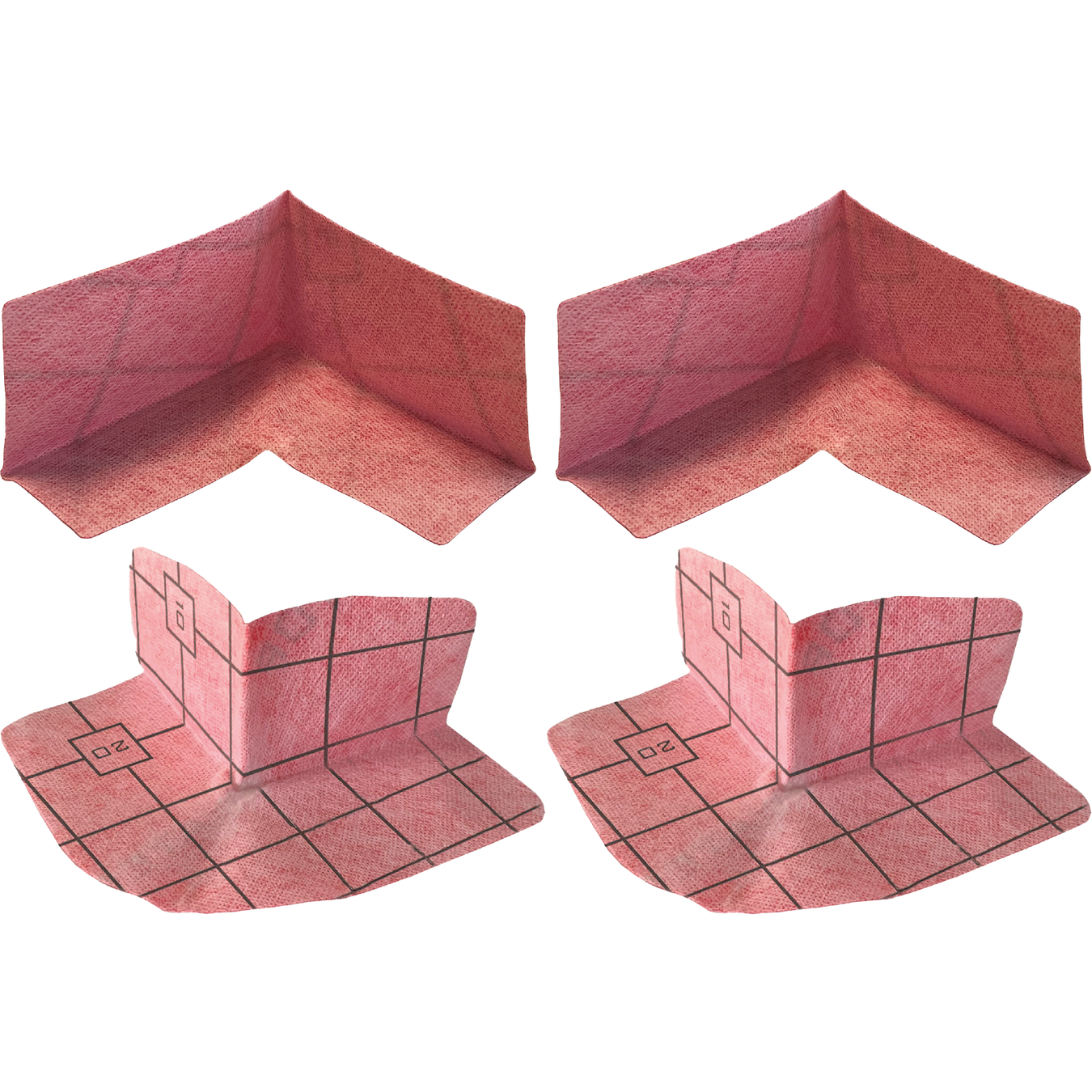

Preformed waterproofing corners are shaped for locations where waterproof surfaces intersect and can simplify treatment of complex changes in plane. Inside and outside versions are used for different corner configurations around shower walls, floors, curbs, benches, and other components. They should be compatible with the surrounding membrane system.

Pipe seals help maintain waterproofing continuity where shower arms, supply lines, and other pipes penetrate a waterproofed wall. The seal integrates the penetration with a compatible membrane while allowing the pipe to pass through the assembly. Select the seal according to the pipe dimensions and waterproofing system requirements.

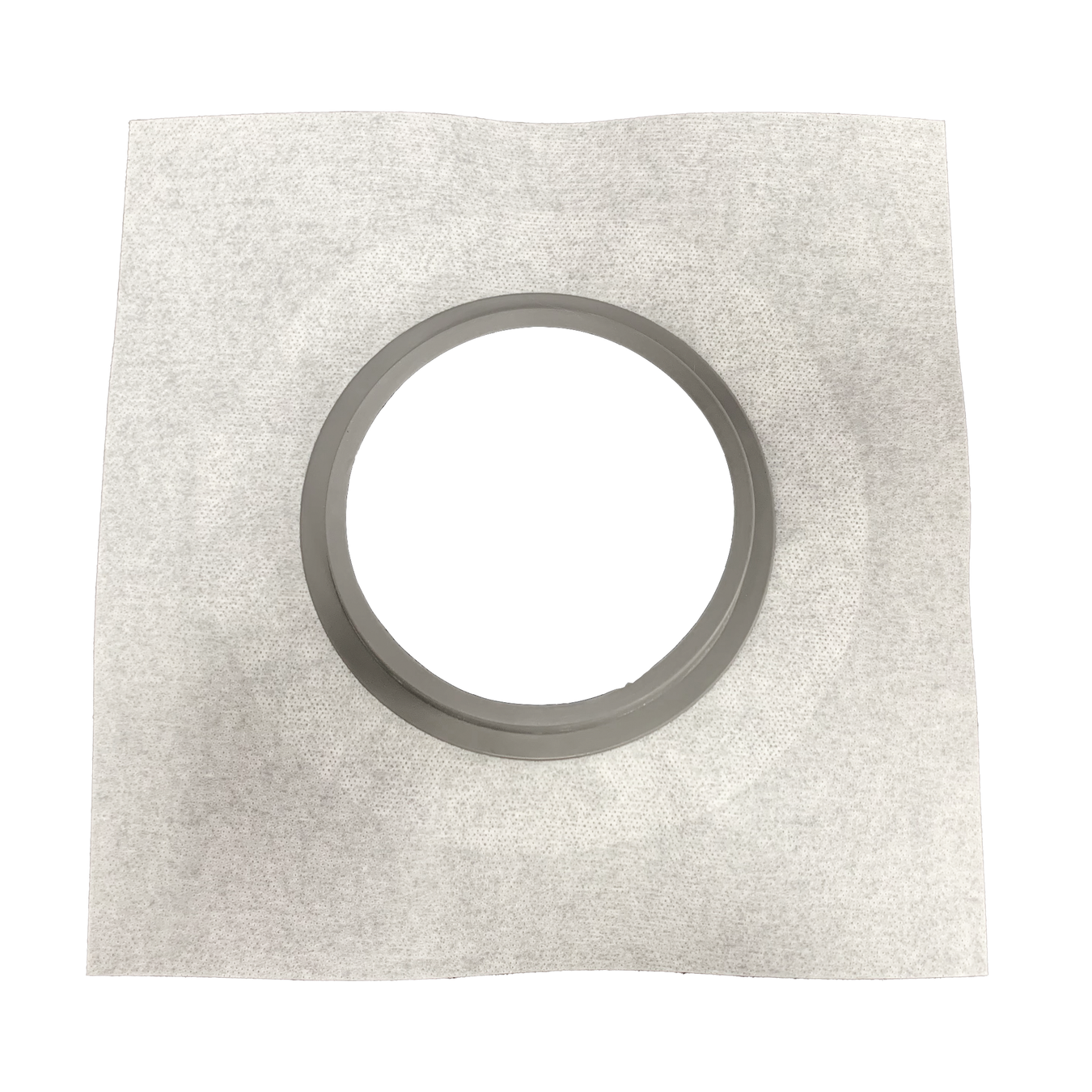

A mixing valve seal provides a waterproofing detail around the larger wall opening required for a compatible shower valve or control. It integrates with the surrounding membrane behind the finished trim. Valve opening size, seal dimensions, membrane compatibility, and installation method should be verified before installation.

Not generally. Preformed corners are designed for specific inside or outside corner details, while waterproofing band is commonly used along seams and transitions. Many waterproofing systems use both products together, with specified overlaps between components to create continuity across the complete waterproofed area.

Waterproofing accessories should not automatically be considered interchangeable between systems. Membranes, bands, corners, seals, adhesives, and sealants can have specific material and bonding requirements. When combining products from different manufacturers or systems, verify that the combination is approved for the intended waterproofing assembly.

Start with the waterproofing membrane or system being installed and identify the details that require treatment. Consider seams, corners, wall-to-floor transitions, pipes, valves, drains, curbs, and terminations. Select compatible accessories specified for those locations and follow the manufacturer's requirements for bonding, overlap, and installation.
