Waterproofing & Uncoupling

Waterproofing and uncoupling perform different functions within a tile assembly. Waterproofing products help prevent water from reaching moisture-sensitive areas, while uncoupling products help manage stresses caused by movement between the substrate and tile. Some membrane systems can provide both functions when installed according to manufacturer requirements.

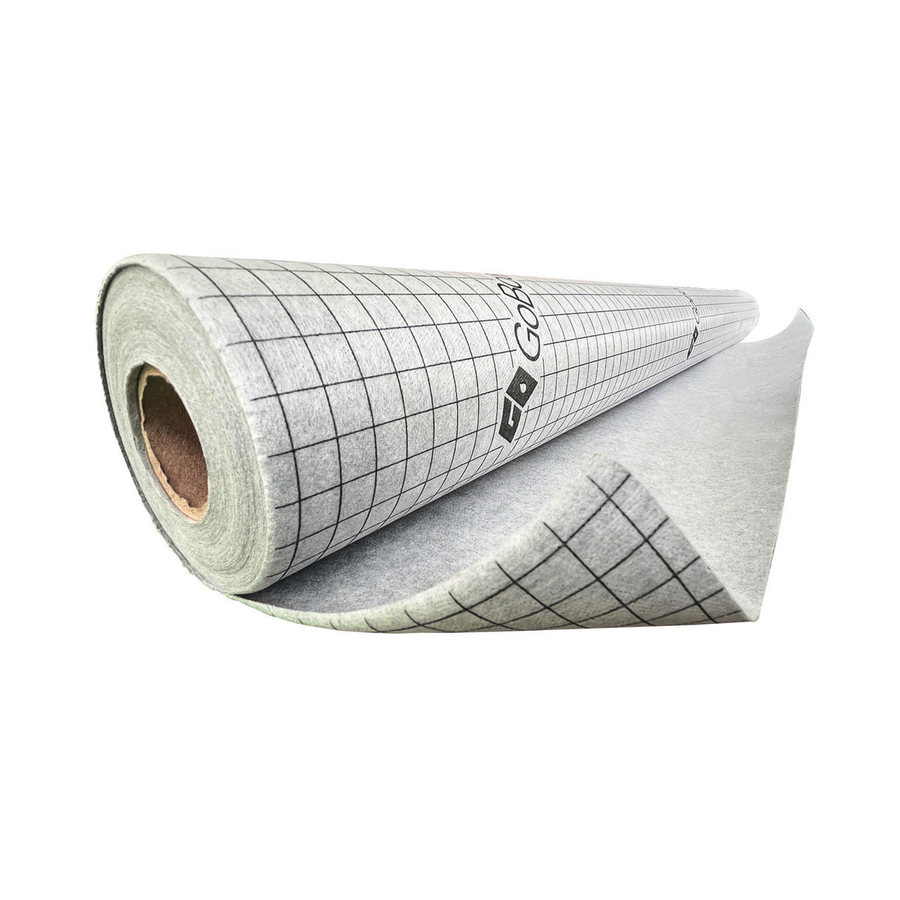

Waterproofing membranes are used where the tile assembly requires protection from water or moisture exposure, including showers and other wet areas. Requirements vary by application, construction method, and applicable installation standards. The selected membrane should be compatible with the substrate, drain system, setting materials, and surrounding waterproofing components.

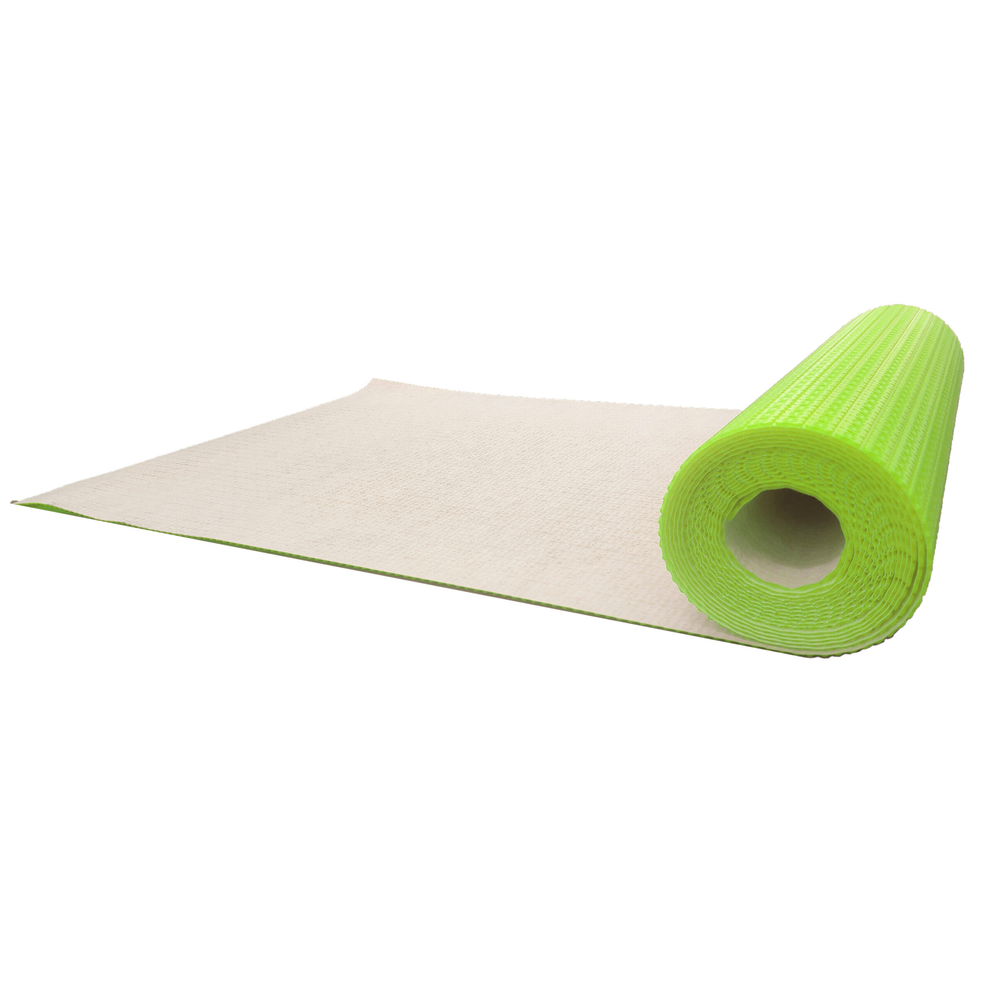

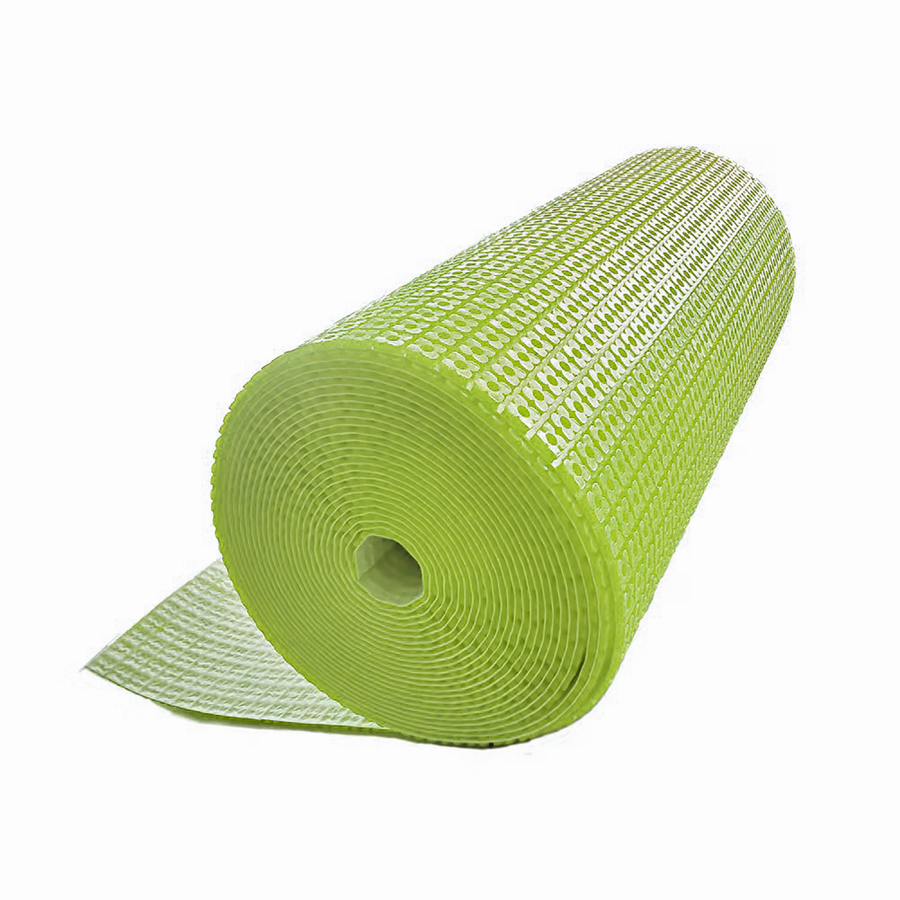

An uncoupling membrane creates an intermediate layer between the substrate and tile assembly that is designed to manage specified stresses caused by differential movement. This can help reduce stress transfer into the finished tile and grout. Performance capabilities, approved substrates, tile requirements, and installation methods vary by membrane system.

Some uncoupling membranes can form part of a waterproof assembly, but this capability should not be assumed for every product. Systems that provide waterproofing can require seams, transitions, penetrations, and perimeter areas to be treated with compatible bands, sealants, or other accessories before the assembly is considered waterproof.

A crack isolation membrane is designed to help reduce the transfer of specified in-plane cracks or movement from a substrate into the finished tile assembly. Its capabilities depend on the individual product and installation. Crack isolation membranes do not correct structural instability or substrate movement beyond their manufacturer-specified limitations.

Many tile waterproofing membranes are designed to receive tile directly using compatible setting materials after the membrane has been properly installed. Requirements vary by membrane type and manufacturer, including substrate preparation, curing or drying times, mortar selection, and tile installation methods. Follow the specifications for the particular waterproofing system.

Some uncoupling membrane systems are compatible with electric radiant floor heating, and certain products are specifically designed to work with heating cables. Compatibility varies by membrane and heating system. Verify the required installation sequence, cable spacing, substrate preparation, setting materials, and tile requirements before combining the systems.

Start with the function required from the tile assembly. Consider moisture exposure, substrate material and condition, movement or crack-isolation requirements, shower or floor application, radiant heating, and finished tile requirements. Then select a membrane and compatible accessories approved for those conditions and follow the manufacturer's complete installation system.
