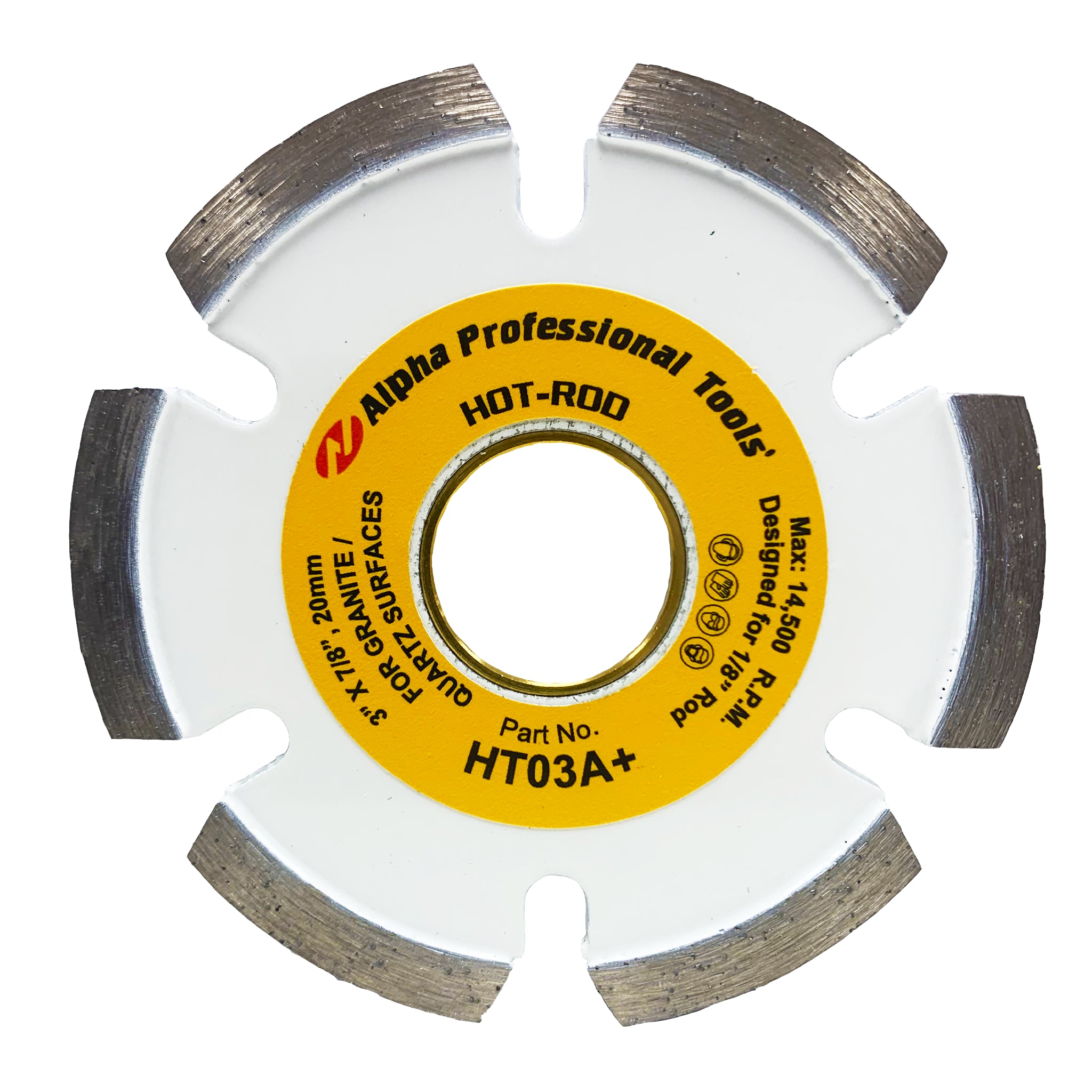

Alpha Hot-Rod Granite Channel Cutting Diamond Blades
Fast Shipping
Easy Returns
Secure Checkout
Recommended Add-Ons
You May Also Need
Alpha
Alpha ECC-125 Ecocutter 5" Dry Tile Cutting System
Virtually Dust-Free 5" Cutting for Tile and Surface Preparation
$456.03
At a Glance
Quick Decision Guide
Blade Diameter
3"
Blade Thickness
4.2mm
Recommended Rod
1/8"
Material
Granite
Maximum RPM
14,500
Arbor
7/8" & 20mm
Cutting Method
Wet or Dry
Primary Application
Reinforcing Rod Channels
Why Choose This Product
Key Benefits
Single-Pass Channels
Cuts reinforcing rod channels in granite in one pass
Rod-Specific Widths
Multiple blade thicknesses accommodate common reinforcing rod sizes
Granite Diamond Matrix
Diamond grit and matrix formulated for granite, including hard red granite
Wet or Dry Cutting
Supports either cutting method with wet cutting recommended by Alpha
Countertop Rodding
Creates reinforcement channels around sink and cooktop cutouts
Tool Compatibility
Designed for channel cutting with compatible Alpha wet/dry stone cutters
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
HT03A+
UPC
749173470394
Product Type
Granite Channel Cutting Diamond Blade
Blade Series
Hot-Rod
Blade Diameter
3"
Blade Thickness
4.2mm
Recommended Rod
1/8"
Recommended Material
Granite
Maximum RPM
14,500
Arbor
7/8" & 20mm
Cutting Method
Wet or Dry
Primary Application
Reinforcing Rod Channel Cutting
Additional Application
Grout Removal
Stone Cutter Compatibility
Alpha AWS-110 & AWS-125
Ecocutter Compatibility
Yes
About This Product
Diamond Blades for Granite Rodding Channels
Alpha® Hot-Rod Granite Channel Cutting Diamond Blades are designed for cutting channels in the underside of granite countertops for reinforcing rods around sink and cooktop cutouts. The blade cuts the channel in a single pass, reducing the labor required to prepare granite for rodding.
Blade Thicknesses for Reinforcing Rod Sizes
The Hot-Rod lineup includes blade thicknesses matched to common reinforcing rod sizes, including 1/8", 3/16", 1/4", and 3/8" threaded rods. Available 3" and 4" blade diameters provide options for different cutting setups, while the diamond grit and matrix are formulated for granite, including hard red granite.
Wet or Dry Channel Cutting
Hot-Rod blades can be used wet or dry, although Alpha recommends wet cutting. They are designed for channel cutting with compatible wet/dry stone cutters, including the Alpha AWS-110 and AWS-125, and can also be used for grout removal with the Alpha Ecocutter.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What are Alpha Hot-Rod blades used for?
Hot-Rod blades are designed to cut channels in granite countertops for reinforcing rods, particularly around sink and cooktop cutouts. They can also be used for grout removal with a compatible Alpha Ecocutter.
Which Hot-Rod blade thickness should I use?
Select the blade according to the reinforcing rod size. The 4.2mm blades are recommended for 1/8" rods, the 5.5mm blade for 3/16" rods, the 7.0mm blades for 1/4" rods, and the 11.5mm blade for 3/8" threaded rods.
Can Alpha Hot-Rod blades cut hard granite?
Yes. The diamond grit and matrix of the granite Hot-Rod blades are formulated for granite categories including hard red granite.
Can Hot-Rod blades be used wet or dry?
Yes. The blades can be used wet or dry, although Alpha recommends wet cutting.
What is the maximum RPM for Hot-Rod granite blades?
All of the listed 3" and 4" Hot-Rod granite blade variants have a maximum speed of 14,500 RPM.
Which stone cutters can be used with Hot-Rod blades?
Alpha specifically identifies the AWS-110 and AWS-125 Wet Stone Cutters for cutting reinforcing rod channels with Hot-Rod blades. Tool compatibility should also be verified against the blade diameter, arbor, and maximum operating speed.
