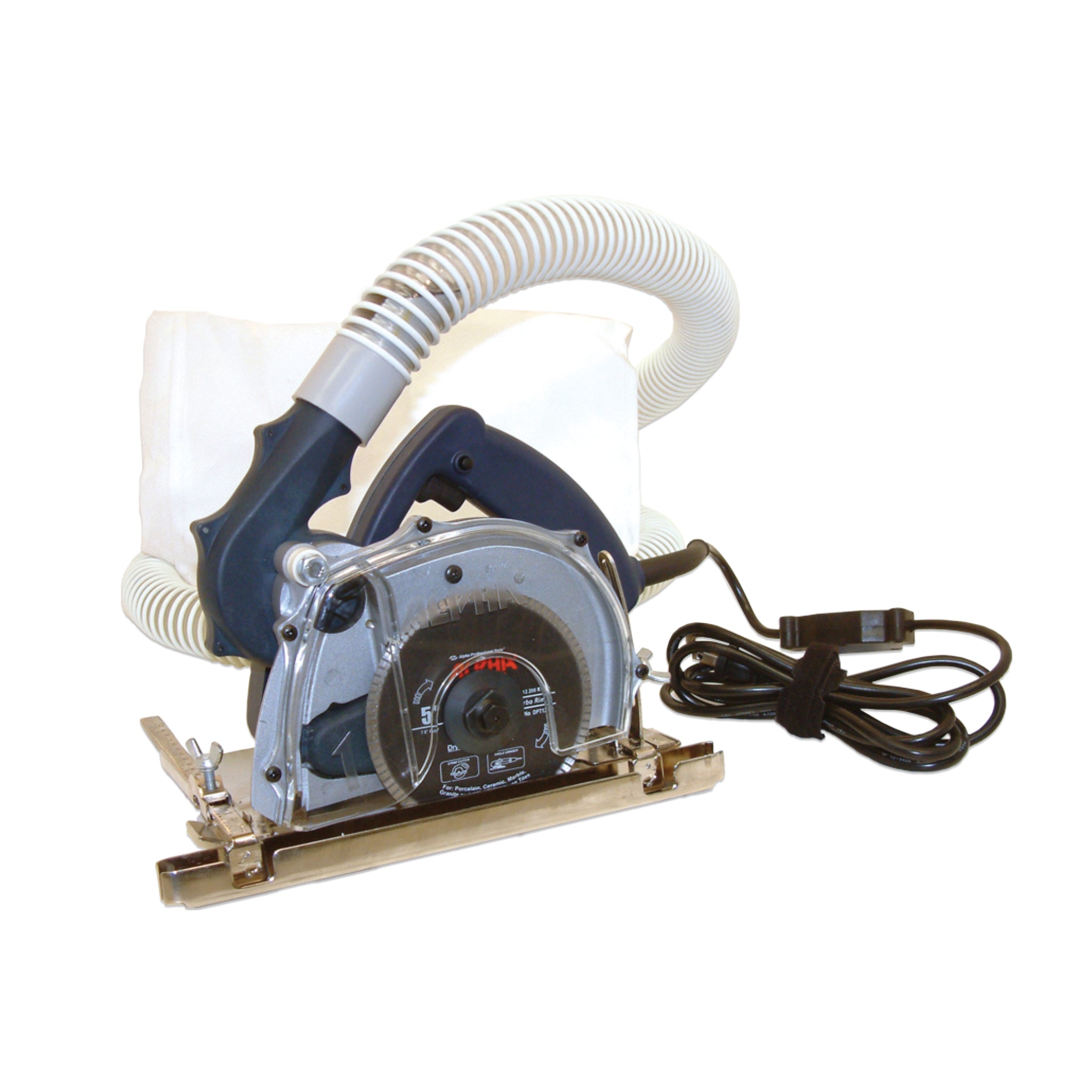

Alpha ECC-125 Ecocutter 5" Dry Tile Cutting System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Cutting Disc Diameter
5" (125mm)
Maximum Cutting Depth
1-1/8" (29mm)
No-Load Speed
12,000 RPM
Power
1200W
Voltage
110V
Amperage
11.2A
Arbor
7/8" (22.23mm)
Weight
9.5 lbs (4.3 kg)
Why Choose This Product
Key Benefits
Dust-Controlled Cutting
Built-in impeller draws cutting dust toward the included dust bag
Portable Dry Cutting
Cuts tile without requiring a water-fed cutting setup
Built-In Breaker
Integrated breaker assembly supports efficient completion of tile cuts
Accurate Cutting
TT ruler and cutting system support controlled tile cutting
Multiple Applications
Supports grout removal, crack chasing and concrete profiling with proper accessories
Jobsite Ready
9.5 lb design combines portability with 1200W cutting power
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
ECC-125
UPC
749173660016
Product Type
Dry Tile Cutting System
Model
ECC-125
Cutting Disc Diameter
5" (125mm)
Maximum Cutting Depth
1-1/8" (29mm)
No-Load Speed
12,000 RPM
Maximum RPM
12,000 RPM
Voltage
110V
Amperage
11.2A
Power
1200W
Arbor
7/8" (22.23mm)
Weight
9.5 lbs (4.3 kg)
Dust Collection
Built-In Impeller with Dust Bag
Breaker Assembly
Built-In
Recommended For
Virtually Dust-Free Cutting
Primary Material
Tile
Additional Applications
Grout Removal, Crack Chasing & Concrete Profiling
Included Equipment
Dust Hose, Dust Gate, Side Handle, Hexagon Ring Spanner, Wrench, Dust Bag, TT Ruler & 2 Hook-and-Loop Straps
Tool Warranty
1 Year
About This Product
Virtually Dust-Free Dry Tile Cutting
The Alpha® ECC-125 Ecocutter is a portable 5" dry tile cutting system that controls dust without requiring a separate wet-cutting setup. A built-in impeller generates airflow that draws dust away from the cutting area and directs it through the dust hose to the included dust bag, reducing airborne dust commonly produced during dry cutting applications.
5" Cutting Capacity and Built-In Breaker
The 1200W Ecocutter operates at 12,000 RPM and accepts 5" cutting discs with a 7/8" arbor. It provides a maximum cutting depth of 1-1/8" and incorporates a breaker assembly for completing tile cuts directly with the tool. Its portable 9.5 lb design supports accurate dry cutting in the shop or on the jobsite without the downtime associated with a water-fed cutting system.
Tile Cutting, Grout Removal and Concrete Surface Work
With the appropriate accessories, the ECC-125 can perform more than straight dry tile cutting. Alpha specifies the tool for grout removal, crack chasing, and concrete profiling applications, giving contractors one portable platform for multiple cutting and surface-preparation tasks.
Included Dust Collection and Cutting Accessories
The Ecocutter includes a dust hose, dust gate, dust bag, side handle, TT ruler, hexagon ring spanner, wrench, and two hook-and-loop straps. The ECC-125 is sold as a stand-alone tool, allowing it to be incorporated into an existing cutting setup without purchasing the complete Ecocutter table and stand system.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
How does the Alpha ECC-125 Ecocutter control dust?
The ECC-125 uses a built-in impeller to generate airflow that draws dust away from the cutting area and directs it through the dust collection system to the included dust bag.
What size cutting disc does the ECC-125 use?
The Ecocutter uses a 5" (125mm) cutting disc with a 7/8" (22.23mm) arbor.
What is the maximum cutting depth of the Alpha Ecocutter?
The ECC-125 has a maximum cutting depth of 1-1/8" (29mm).
Can the ECC-125 be used for applications other than cutting tile?
Yes. With the appropriate accessories, Alpha specifies the Ecocutter for grout removal, crack chasing, and concrete profiling in addition to dry tile cutting.
Does the Alpha ECC-125 have a built-in tile breaker?
Yes. The Ecocutter includes a built-in breaker assembly for completing tile cuts with the tool.
What accessories are included with the ECC-125 Ecocutter?
The tool includes a dust hose, dust gate, side handle, hexagon ring spanner, wrench, dust bag, TT ruler, and two hook-and-loop straps.
Does the ECC-125 include the Ecocutter table and stand?
No. The ECC-125 described here is the stand-alone Ecocutter tool. Alpha also references the Ecocutter as part of a larger cutting system with a table and stand.
