At a Glance
Why Choose This Product
Applies controlled pressure to align adjacent tiles
Spins quickly onto R.L.S. VITE clips using two fingers
Caps can be removed and reused after the adhesive sets
Provides finger grips for rotation and final tightening
Hollow cap design keeps the joint visible during installation
Accepts the scratch-preventing washer for sensitive tile finishes
Product Information

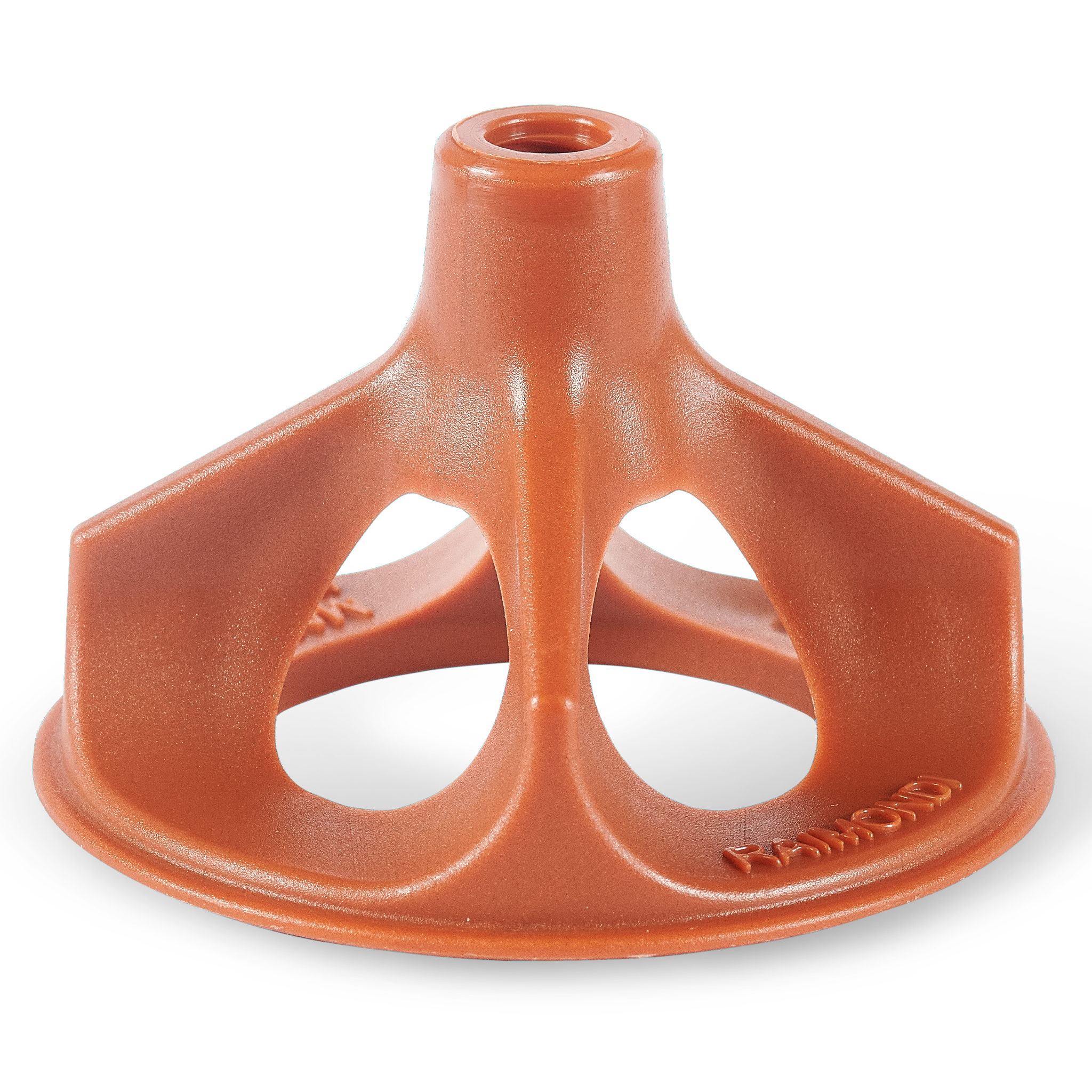

The RaimondiĀ® R.L.S. VITE Cap is a reusable leveling cap designed for use with R.L.S. VITE clips to reduce tile lippage during installation. The cap threads onto the clip and can be quickly spun down with two fingers before final tightening, providing the pressure needed to bring adjacent tiles into alignment.
The cap features dedicated finger grips for quickly starting rotation and applying the necessary tightening force during leveling. Its hollow design keeps the grout joint visible during installation, allowing the system to be positioned along tile edges as well as at tile intersections.
R.L.S. VITE Caps work with the system's range of clips for 1 mm, 1.5 mm, 2 mm, and 3 mm grout joints. Standard clips support tile thicknesses from 3 to 15 mm (1/8" to 5/8"), while tall clips support thicknesses from 14 to 26 mm (17/32" to 1-1/32"). Once the adhesive has set, the cap can be removed for reuse.
For tiles with particularly delicate surface finishes, the cap can be paired with the R.L.S. VITE scratch-preventing washer. Its soft rubber ring helps prevent scratching and tile movement during tightening while allowing the washer to remain stationary without being held by hand. The washer can be removed from the cap when it is not required and does not change the supported tile thickness range of compatible clips.
Common Questions
R.L.S. VITE Caps are used with compatible R.L.S. VITE clips to apply pressure across adjacent tiles and reduce lippage during installation.
Yes. Once the tile adhesive has set, the caps can be removed from the clips and reused on future installations.
R.L.S. VITE clips are available for 1 mm, 1.5 mm, 2 mm, and 3 mm joints, corresponding approximately to 1/32", 1/16", 5/64", and 1/8".
Standard clips accommodate tiles from 3 to 15 mm (1/8" to 5/8") thick. Tall clips accommodate tiles from 14 to 26 mm (17/32" to 1-1/32") thick.
For tiles with particularly delicate surface finishes, Raimondi offers a compatible scratch-preventing washer with a soft rubber ring. The washer helps prevent scratching and tile movement while the cap is tightened.
No. According to Raimondi, using the washer does not affect the minimum or maximum tile thickness supported by the standard or tall R.L.S. VITE clips.
Yes. The hollow cap design keeps the grout joint visible, allowing the cap and clip system to be used along tile sides and at tile intersections.
After the adhesive has set, Raimondi recommends striking the cap with a white rubber mallet parallel to the grout joint. Alternatively, the cap can be unscrewed and removed before the clip is struck parallel to the joint.
