Raimondi R.L.S. VITE Tile Leveling Clips
Fast Shipping
Easy Returns
Secure Checkout
Recommended Add-Ons
You May Also Need
At a Glance
Quick Decision Guide
Joint Size
1/32" (1 mm)
Tile Thickness
1/8"-19/32" (3-15 mm)
Quantity
100 Clips
System
R.L.S. VITE
Application
Tile Leveling
Cap Connection
Threaded
Cap Reusable
Yes
Clip Removal
Break-Off
Why Choose This Product
Key Benefits
Lippage Reduction
Levels adjacent tile surfaces during installation
Joint Control
Establishes a consistent nominal grout joint
Hand Tightening
Threaded cap twists onto the clip without a tightening tool
Visible Joint
Hollow cap design keeps the grout joint visible during leveling
Reusable Caps
Caps are removed after curing and reused with new clips
Simple Removal
Clips break off parallel to the joint after adhesive cures
Product Information
Product Details
Specifications
Brand
RaimondiĀ®
Part Number
180VB010C0100
UPC
8050532002982
Product Type
Tile Leveling Clips
System
R.L.S. VITE
Joint Size
1/32" (1 mm)
Tile Thickness
1/8"-19/32" (3-15 mm)
Quantity
100 Clips
Packaging
Bag
Cap Connection
Threaded
Cap Compatibility
R.L.S. VITE Cap
Application
Tile Leveling & Lippage Reduction
Clip Removal
Break-Off After Adhesive Sets
About This Product

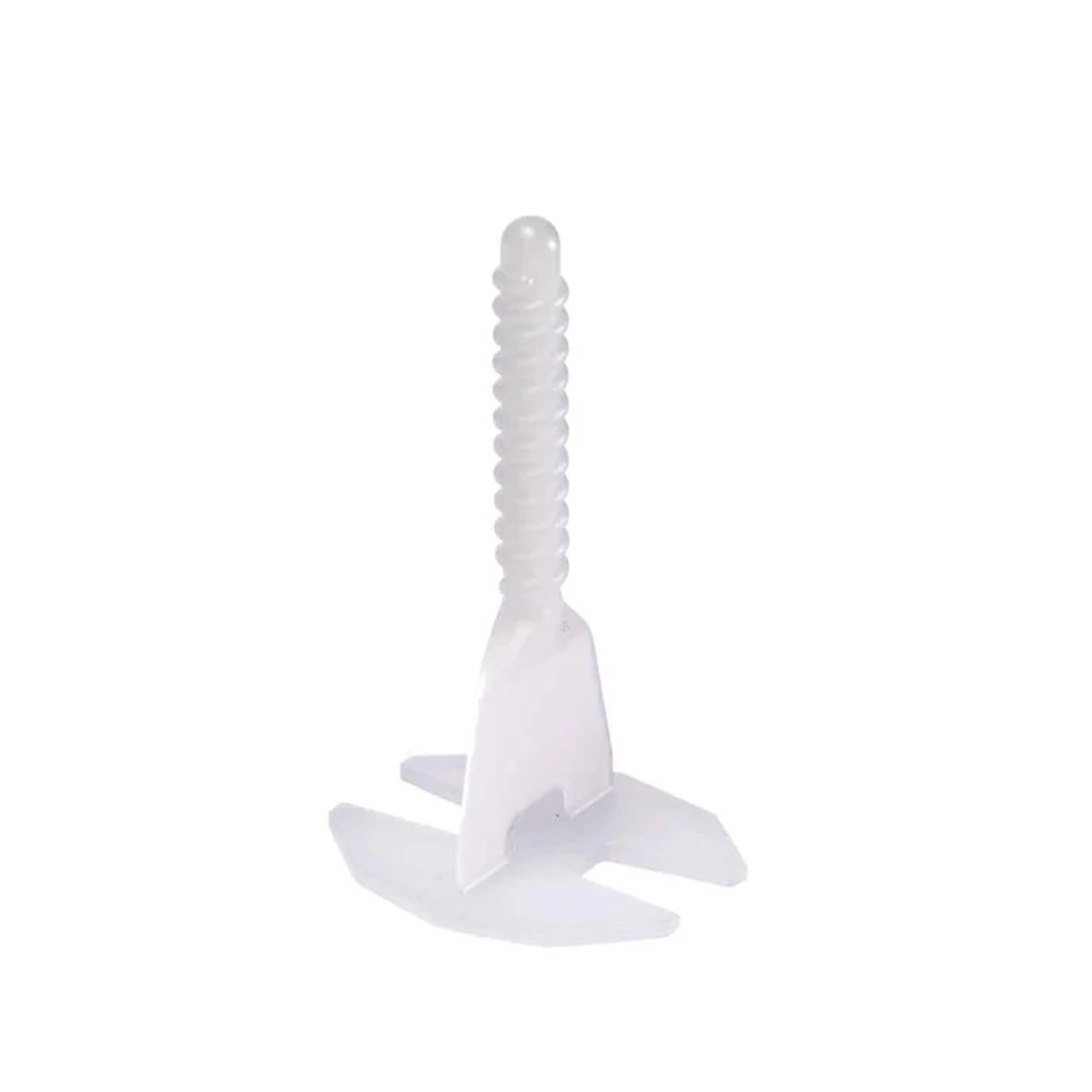

Threaded Clips for the R.L.S. VITE Leveling System
RaimondiĀ® R.L.S. VITE Tile Leveling Clips work with R.L.S. VITE reusable caps to level adjacent tiles and reduce lippage during installation. The cap threads directly onto the clip and is tightened by hand to bring neighboring tile surfaces into alignment.
Joint Sizes for Tile Installation
The clips are available in 1/32" (1 mm), 1/16" (1.5 mm), and 1/8" (3 mm) joint sizes for tiles from 1/8" to 19/32" (3 to 15 mm) thick. The clip establishes the nominal grout joint while the threaded cap provides the leveling force.
Break-Off Removal After the Adhesive Sets
After the tile adhesive has set, the leveling cap can be removed and reused. The clip is broken off by striking it parallel to the grout joint with a white rubber mallet or by foot.
Common Questions
Frequently Asked Questions
What are Raimondi R.L.S. VITE Clips used for?
R.L.S. VITE Clips work with reusable threaded VITE caps to level adjacent tiles and reduce lippage during installation.
What grout joint sizes are available?
These clips are available for 1/32" (1 mm), 1/16" (1.5 mm), and 1/8" (3 mm) nominal grout joints.
What tile thicknesses are compatible with these clips?
These R.L.S. VITE Clips are designed for tiles from 1/8" to 19/32" (3 to 15 mm) thick.
Do R.L.S. VITE Clips require a leveling tool?
No. The VITE cap threads onto the clip and is tightened by hand to apply the force needed to level adjacent tiles.
Are the R.L.S. VITE caps reusable?
Yes. After the adhesive has set, the cap can be removed from the clip and reused with new R.L.S. VITE Clips.
How are R.L.S. VITE Clips removed?
After the adhesive has set, strike the clip parallel to the grout joint using a white rubber mallet or by foot. The cap can also be unscrewed first before breaking off the clip.
