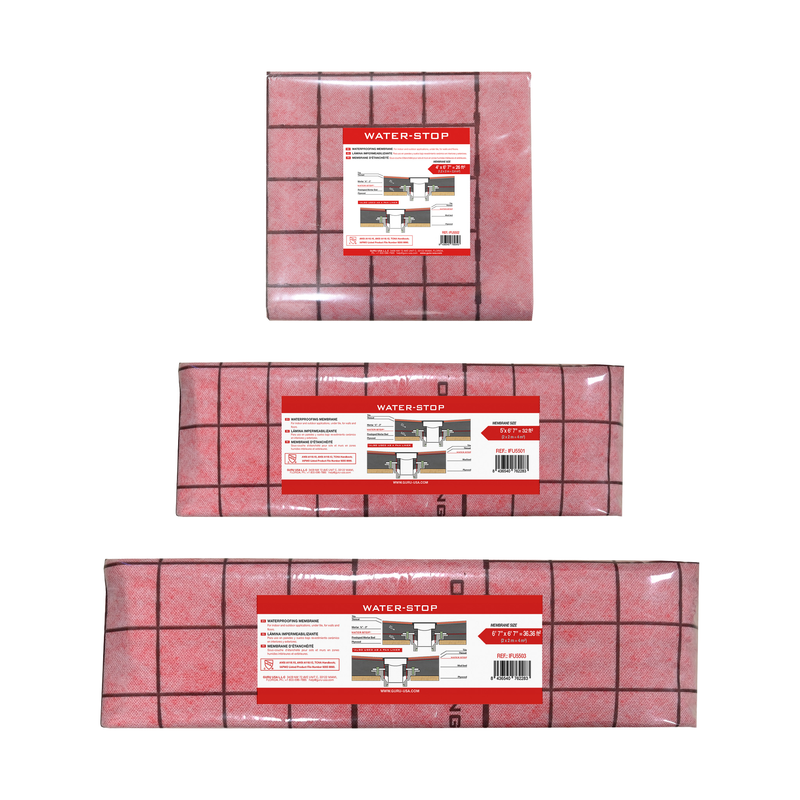

GURU Water-Stop Waterproofing Membrane Sheets

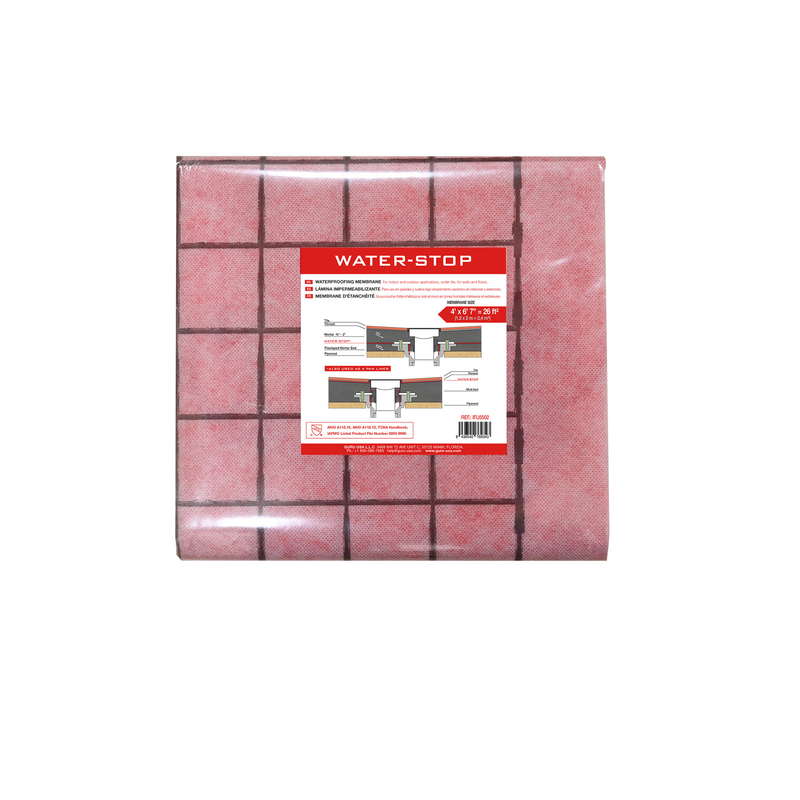

GURU Water-Stop Waterproofing Membrane Sheet, 26 sq ft

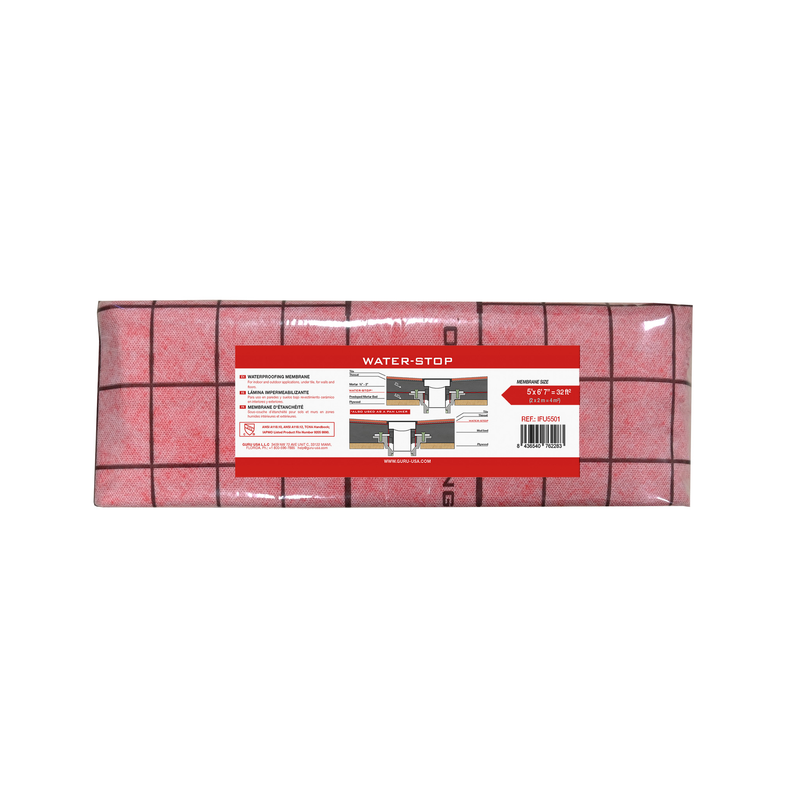

GURU Water-Stop Waterproofing Membrane Sheet, 32 sq ft

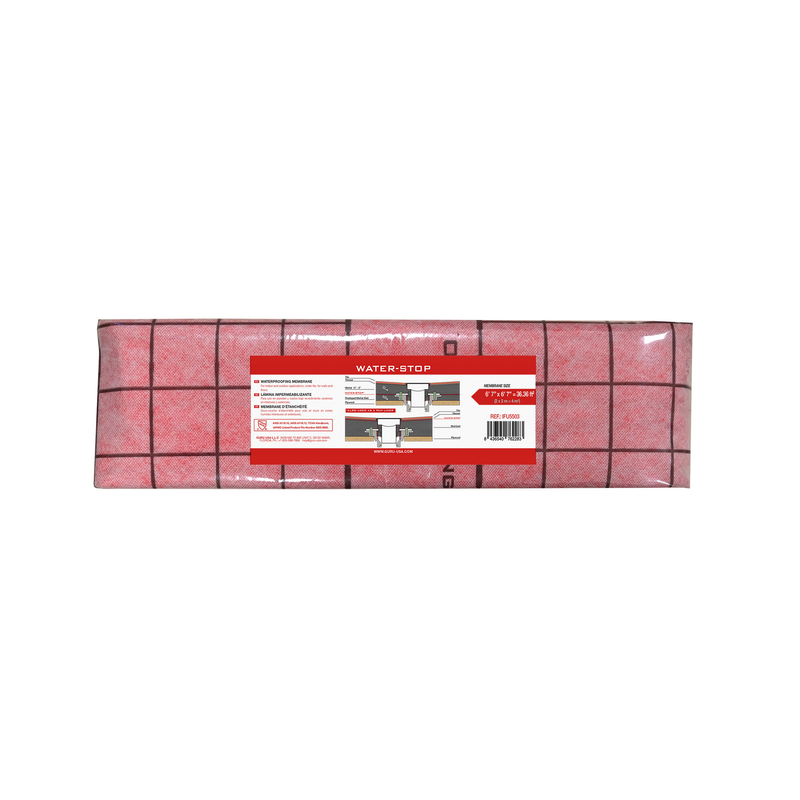

GURU Water-Stop Waterproofing Membrane Sheet, 43 sq ft

Price Save $20.28

Low Stock – 6 left
Backordered, shipping soon

30 Day Returns

Secure payments

Quantity

[{"id":44331743871171,"title":"26 sq ft (4' x 6'7\")","option1":"26 sq ft (4' x 6'7\")","option2":null,"option3":null,"sku":"GURU-WS-MEMBRANE-27-IFU5502","requires_shipping":true,"taxable":true,"featured_image":{"id":44481970995395,"product_id":8148545732803,"position":2,"created_at":"2025-04-09T14:31:21-05:00","updated_at":"2025-06-03T09:32:48-05:00","alt":"GURU Water-Stop Waterproofing Membrane Sheet, 26 sq ft","width":2048,"height":2048,"src":"\/\/tilethis.com\/cdn\/shop\/files\/guru-ws-membrane-sheet-26-sq-ft.png?v=1748961168","variant_ids":[44331743871171]},"available":true,"name":"GURU W-S Waterproofing Membrane Sheet - 26 sq ft (4' x 6'7\")","public_title":"26 sq ft (4' x 6'7\")","options":["26 sq ft (4' x 6'7\")"],"price":3797,"weight":0,"compare_at_price":5825,"inventory_management":"shopify","barcode":"8436540769343","featured_media":{"alt":"GURU Water-Stop Waterproofing Membrane Sheet, 26 sq ft","id":36228481024195,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/tilethis.com\/cdn\/shop\/files\/guru-ws-membrane-sheet-26-sq-ft.png?v=1748961168"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44331743903939,"title":"32 sq ft (5' x 6'7\")","option1":"32 sq ft (5' x 6'7\")","option2":null,"option3":null,"sku":"GURU-WS-MEMBRANE-32-IFU5501","requires_shipping":true,"taxable":true,"featured_image":{"id":44481970929859,"product_id":8148545732803,"position":3,"created_at":"2025-04-09T14:31:21-05:00","updated_at":"2025-06-03T09:33:15-05:00","alt":"GURU Water-Stop Waterproofing Membrane Sheet, 32 sq ft","width":2048,"height":2048,"src":"\/\/tilethis.com\/cdn\/shop\/files\/guru-ws-membrane-sheet-32-sq-ft.png?v=1748961195","variant_ids":[44331743903939]},"available":true,"name":"GURU W-S Waterproofing Membrane Sheet - 32 sq ft (5' x 6'7\")","public_title":"32 sq ft (5' x 6'7\")","options":["32 sq ft (5' x 6'7\")"],"price":3958,"weight":0,"compare_at_price":6200,"inventory_management":"shopify","barcode":"8436540769336","featured_media":{"alt":"GURU Water-Stop Waterproofing Membrane Sheet, 32 sq ft","id":36228480991427,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/tilethis.com\/cdn\/shop\/files\/guru-ws-membrane-sheet-32-sq-ft.png?v=1748961195"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44331743936707,"title":"43 sq ft (6'7\" x 6'7\")","option1":"43 sq ft (6'7\" x 6'7\")","option2":null,"option3":null,"sku":"GURU-WS-MEMBRANE-43-IFU5503","requires_shipping":true,"taxable":true,"featured_image":{"id":44481971028163,"product_id":8148545732803,"position":4,"created_at":"2025-04-09T14:31:21-05:00","updated_at":"2025-06-03T09:32:14-05:00","alt":"GURU Water-Stop Waterproofing Membrane Sheet, 43 sq ft","width":2048,"height":2048,"src":"\/\/tilethis.com\/cdn\/shop\/files\/guru-ws-membrane-sheet-43-sq-ft.png?v=1748961134","variant_ids":[44331743936707]},"available":true,"name":"GURU W-S Waterproofing Membrane Sheet - 43 sq ft (6'7\" x 6'7\")","public_title":"43 sq ft (6'7\" x 6'7\")","options":["43 sq ft (6'7\" x 6'7\")"],"price":4522,"weight":0,"compare_at_price":7108,"inventory_management":"shopify","barcode":"8436540762283","featured_media":{"alt":"GURU Water-Stop Waterproofing Membrane Sheet, 43 sq ft","id":36228481056963,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/tilethis.com\/cdn\/shop\/files\/guru-ws-membrane-sheet-43-sq-ft.png?v=1748961134"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

GURU Water-Stop Shower Waterproofing Membrane Sheet is a professional-grade waterproofing membrane designed for tile installers and contractors. Ideal for tile shower waterproofing, this high-performance membrane delivers reliable protection against moisture infiltration, ensuring your shower walls and floors remain leak-free and durable.

Key Features of the W-S Waterproofing Membrane

Premium Tile Waterproofing Membrane: Engineered with multi-layer, low perm technology for superior moisture barrier performance.
Certified Quality: Meets ANSI A118.10 and ANSI A118.12 standards, with IAPMO acceptance for code-compliant installations.
Versatile Shower Waterproofing Membrane: Suitable for use on shower walls, tub surrounds, steam showers, kitchens, and other moisture-prone areas.
Crack Isolation: Protects tile and stone surfaces from common substrate movement and shrinkage cracks.
Easy Installation: Bonds quickly with modified thin-set mortar suitable for thin-bed and thick-bed tile installations.
Durable and Flexible: 20-mil thick membrane designed to withstand extreme temperature and humidity conditions.
GURU USA Trusted Product: Part of the GURU Waterproofingproducts® line, recognized nationwide by professional contractors.

GURU W-S Membrane Specifications

Specification	Details
Material Type	Multi-layer steam barrier waterproof membrane
Standards	ANSI A118.10, ANSI A118.12, IAPMO approved
Suitable Applications	Shower walls, tub surrounds, steam showers, kitchens, backsplashes, balconies
Installation Method	Bond with modified thin-set mortar compliant with ANSI standards

GURU W-S Membrane Sheet Sizes

Part No.	Size	Thickness	Coverage
IFU5502	4’ x 6’ 7”	20 Mil	26 Sq. Ft.
IFU5501	5’ x 6’ 7” 10”	20 Mil	32 Sq. Ft.
IFU5503	6’ 7” x 6’ 7”	20 Mil	43 Sq. Ft.

Usage Tips for Shower Waterproofing Membrane

Ensure substrate surfaces are clean, dry, and structurally sound before membrane application.
Use a modified thin-set mortar suitable for the substrate type and conforming to ANSI standards for bonding the membrane.
Overlap membrane seams properly to maintain a continuous waterproof barrier.
Seal pipe penetrations and corners with compatible waterproofing accessories from GURU USA to ensure a watertight installation.

Choose GURU Water-Stop Shower Waterproofing Membrane Sheet to safeguard your tile installations with industry-trusted, long-lasting protection. Order now to provide your clients with the highest standard in shower waterproofing membranes, backed by the quality and reliability of GURU Waterproofingproducts®.

Frequently Asked Questions

What is GURU W-S Waterproofing Membrane Sheet?

GURU Water-Stop Shower Waterproofing Membrane Sheet is a professional-grade waterproofing membrane designed for tile installers and contractors. It delivers reliable protection against moisture infiltration in shower walls and floors.

Where can I use this membrane?

This versatile shower waterproofing membrane is suitable for:

Shower walls
Tub surrounds
Steam showers
Kitchens
Backsplashes
Balconies

What standards does GURU W-S Membrane meet?

It meets ANSI A118.10 and ANSI A118.12 standards and has IAPMO acceptance for code-compliant installations.

What sizes and coverage options are available?

Available sheet sizes and coverage:

IFU5502: 4’ × 6’ 7” (20 Mil) – 26 Sq. Ft.
IFU5501: 5’ × 6’ 7” 10” (20 Mil) – 32 Sq. Ft.
IFU5503: 6’ 7” × 6’ 7” (20 Mil) – 43 Sq. Ft.

How do I install the membrane?

Ensure substrate surfaces are clean, dry, and structurally sound. Bond the membrane with modified thin-set mortar that conforms to ANSI standards. Overlap seams properly and seal corners and pipe penetrations with compatible GURU USA accessories.
