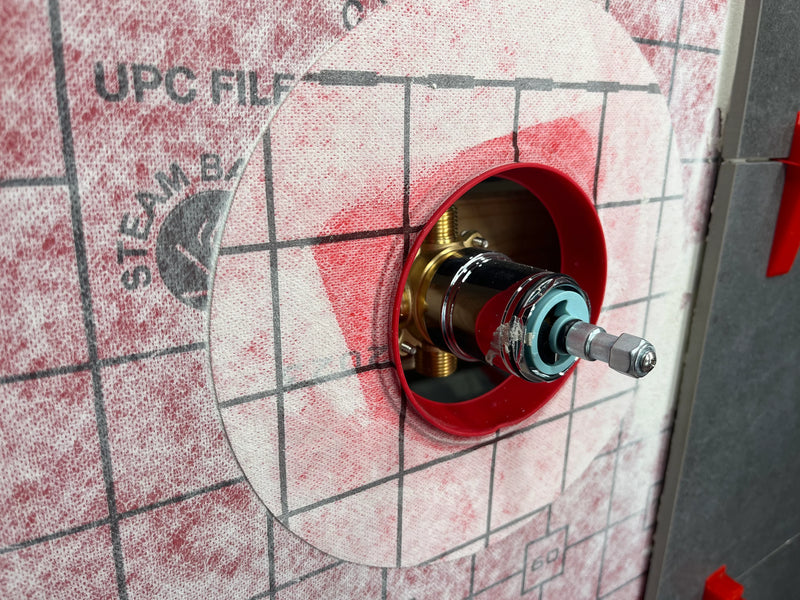

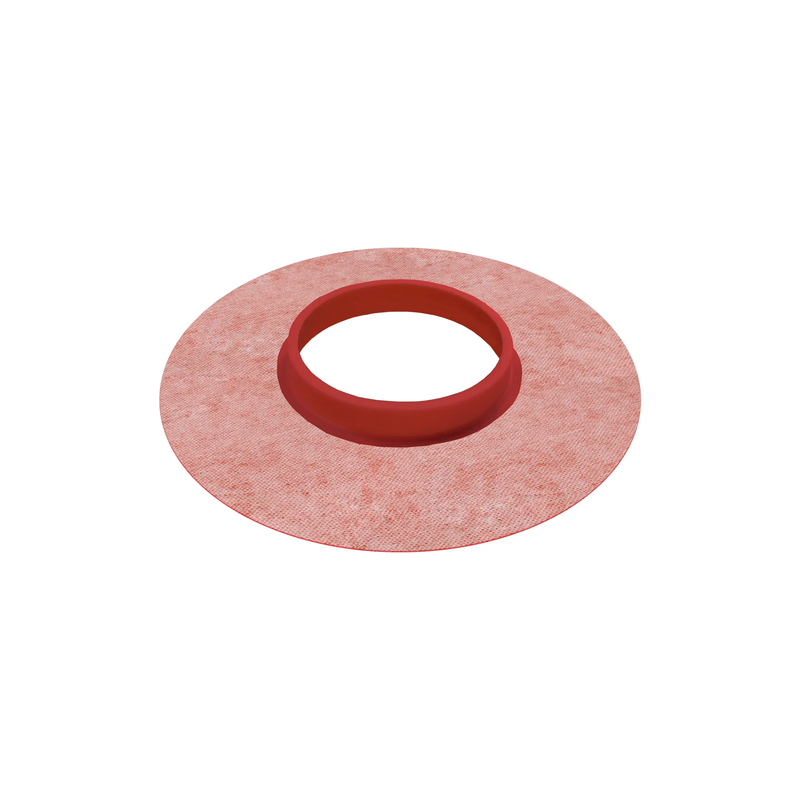

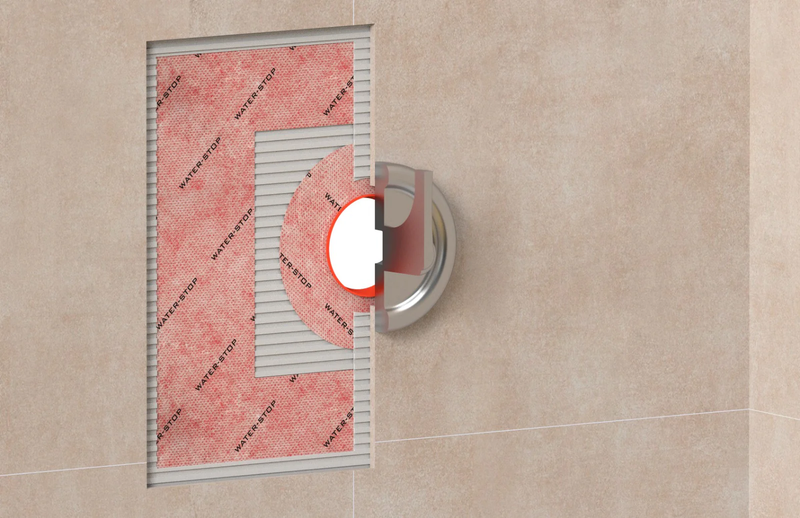

The GURU W-S Mixing Valve Seal provides contractors and tile installers with a durable, watertight solution to prevent leaks around shower mixing valves. Designed for straightforward thinset installation, this seal features a robust rubber gasket and integrates seamlessly with waterproofing membranes, ensuring long-lasting protection in residential and commercial tile projects.
Key Features of the GURU W-S Mixing Valve Seal
- 2-1/2" Water-Stop Membrane Overlap: Creates a secure waterproof barrier to safeguard substrates from moisture damage.
- 4-1/2” Diameter Rubber Gasket: Provides a tight, leak-proof seal around mixing valves for enhanced durability.
- Easy Thinset Installation: Applies directly onto the substrate for fast and reliable waterproofing on tile installations.
- Industry-Standard Compliance: Meets ANSI A118.10, ANSI A118.12, TCNA Handbook guidelines, and Uniform Plumbing Code (UPC®) for assured quality.
Mixing Valve Seal Specifications
| Specification | Details |
|---|---|
| Membrane Overlap Size | 2-1/2" |
| Rubber Gasket Diameter | 4-1/2" |
| Installation Method | Thinset on substrate |
| Standards Compliance | ANSI A118.10, ANSI A118.12, TCNA Handbook, UPC® |
Protect your tile installation from water damage with the GURU W-S Mixing Valve Seal, trusted by professionals for reliable waterproofing and simple installation. Order now to ensure your project’s integrity and longevity.
