At a Glance
Why Choose This Product
Repeated square openings complement contemporary tile layouts
CNC milled from 6061-T6 aircraft-grade aluminum
Creates a clean appearance without exposed mounting hardware
Adds precise definition around the openings and grate perimeter
Lifts from the FX Riser when access beneath the grate is needed
Fits the GoBoard FX Riser and Point Drain Body system
Product Information

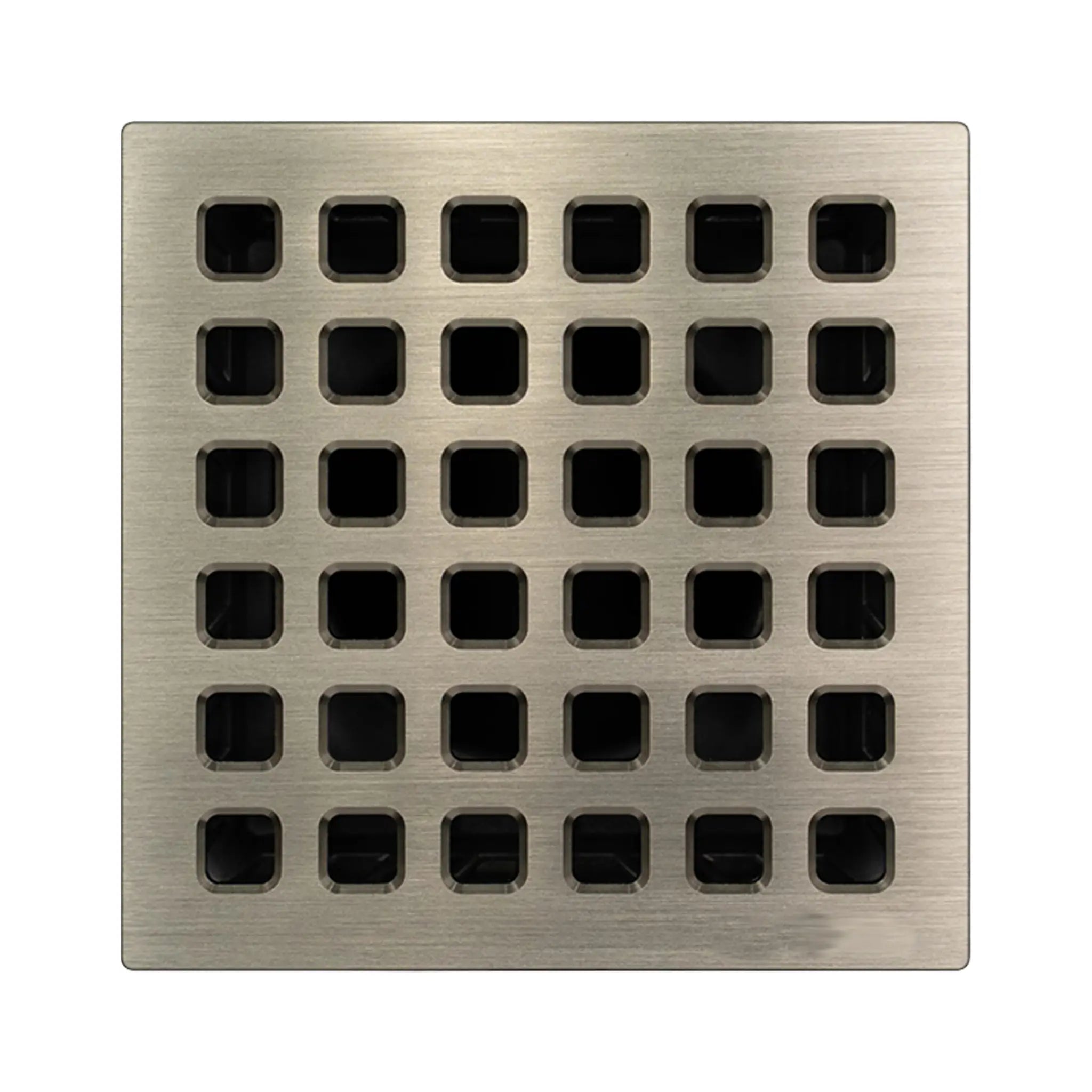

The GoBoard® FX ThirtySix Square Shower Drain Grate gives tiled showers a clean, geometric finish with a repeated grid of square openings. Its screwless drop-in design eliminates visible mounting hardware while keeping the grate removable for access beneath the drain cover.
CNC milled from a solid plate of 6061-T6 aircraft-grade aluminum, the grate provides a rigid, precisely finished surface for tiled shower floors. Chamfered edges define the square openings and outer perimeter, creating a refined transition between the decorative grate and surrounding tile.
The ThirtySix grate fits the GoBoard FX Riser used with the GoBoard Point Drain Body. The compatible FX Riser and drain body are required and sold separately, making this grate the decorative finishing component rather than a complete shower drain assembly.
Common Questions
This product includes one ThirtySix decorative drain grate in the selected finish. The GoBoard FX Riser, temporary installation plate, Point Drain Body, waterproofing components, and plumbing connection are not included. Those separate components are required to build a complete GoBoard FX shower drain assembly.
The ThirtySix grate drops into the GoBoard FX Riser. That riser connects to the GoBoard Point Drain Body used in the shower system. The grate does not install directly into the drain body, so both compatible components are needed to complete the FX drain assembly.
The ThirtySix grate is CNC milled from a solid plate of 6061-T6 aircraft-grade aluminum. This construction provides a rigid, precisely machined drain cover with chamfered edges and a finished surface designed for use in tiled shower floors.
The drain grate measures approximately 3.9" × 3.9" and fits within the compatible 4" × 4" GoBoard FX Riser. The riser creates the surrounding grout rim, so the grate is slightly smaller than the complete installed riser footprint.
The grate drops into the FX Riser without visible mounting screws. It remains removable so the area beneath the drain cover can be accessed when necessary. The screwless design requires the matching FX Riser, which holds the grate at the correct finished position.
Yes. The ThirtySix grate can replace another GoBoard FX Designer Series grate when the shower already has a compatible FX Riser. Replacing the grate changes only the visible pattern or finish. It does not replace the riser, drain body, or waterproofing connection.
The ThirtySix design uses a repeated grid of square openings across the grate face. This geometric arrangement gives the drain a structured, contemporary appearance while allowing water to pass into the drain assembly. Chamfered edges add definition to the openings and perimeter.
