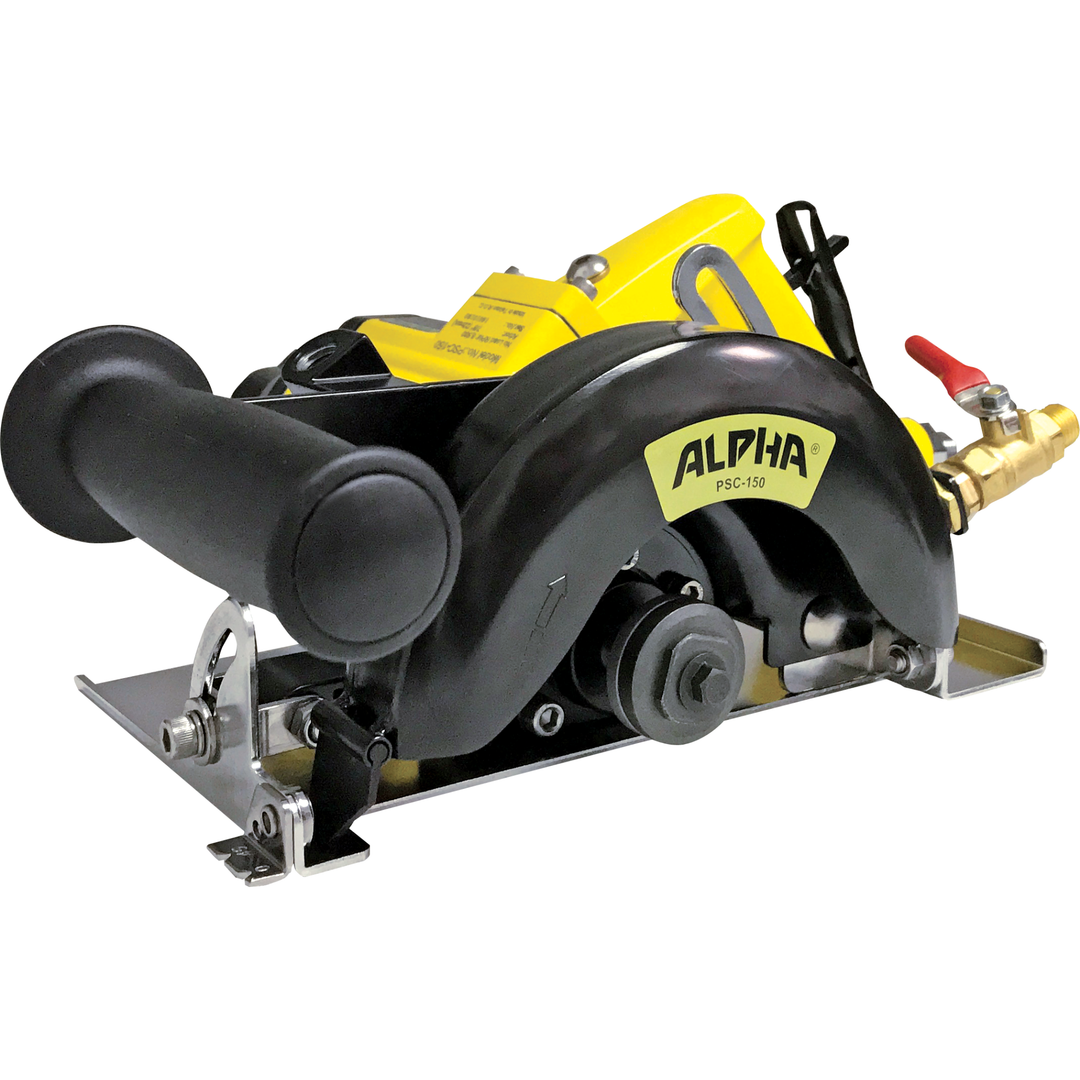

The Alpha® PSC-150 Pneumatic Stone Cutter is a powerful and reliable stone cutting machine designed specifically for industrial applications. Engineered for stone fabricators and contractors, this pneumatic stone cutter delivers precise, efficient cuts on 1-1/4" (3cm) thick stone slabs with ease. Featuring a 2 HP motor with a speed governor, it regulates air consumption to provide the optimal torque needed for demanding stone cutting tasks. Whether you require miter cutting, sink-hole cutting, or groove cutting, the PSC-150 is built to handle wet or dry operations, reducing maintenance costs typically associated with electric saws.
Key Features of the Alpha® PSC-150 Stone Cutter
- 2 HP Pneumatic Motor with Speed Control Governor: Optimizes air consumption based on torque needs.
- Miter Cutting Capability: Easily cuts 1-1/4" (3cm) thick stone slabs with precise angles.
- Kink-Free Water and Air Hoses: Improves maneuverability and reduces operator fatigue during extended use.
- Versatile Cutting Applications: Ideal for sink-hole cutting, groove cutting, and rodding projects.
- Durable and Long-Lasting: 2,000-hour duty cycle for extended industrial use.
- Includes Eclipse II 6” Turbo Blade and Rust Inhibitor Oil: Ready for granite, engineered stone, porcelain, and marble cutting.
- Wet or Dry Operation: Adaptable to different cutting environments to suit project needs.
- One Year Tool Warranty: Confidence in product reliability and support.
Product Specifications for Alpha® PSC-150 Pneumatic Stone Cutter
| Specification | Details |
|---|---|
| Model | PSC-150 |
| Air Pressure | 90 PSI (6.2 Bar) |
| Air Consumption Min | 929 l/min (32 CFM) / 1 HP |
| Air Consumption Max | 48 CFM / 2 HP |
| No Load Speed | 8,500 RPM |
| Air Inlet | 3/8” NPSM |
| Water Inlet | 1/4” BSPP |
| Arbor Diameter | 7/8” (22.23 mm) |
| Max Power | 2.0 HP |
| Cutting Disc Diameter | 6” (150 mm) |
| Weight | 10.3 lbs (4.6 kg) |

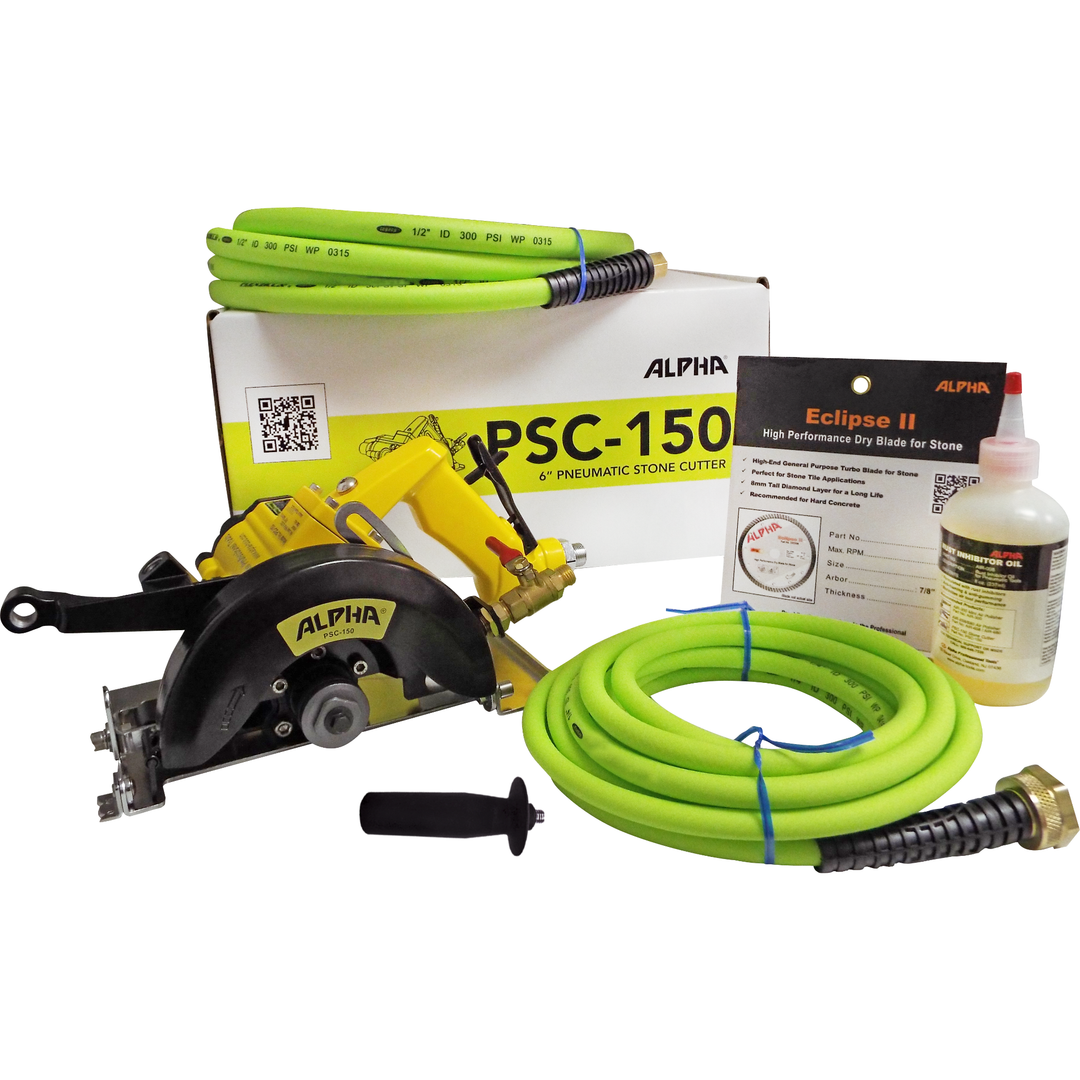

Included Equipment with the Alpha® PSC-150 Stone Saw
| Item | Quantity |
|---|---|
| Flanges | 3 |
| Bolts (M6X30 Left) / (M6x20 Left) | 2 |
| Side Handle | 1 |
| Combination Wrench (9mm) | 1 |
| Hex Wrench (5mm) | 1 |
| Open End Spanner Wrench (22mm) | 1 |
| Air Hose (15ft / 4.5m) | 1 |
| Water Hose (15ft / 4.5m) | 1 |
| Rust Inhibitor Oil (8oz / 237ml) | 1 |
| Alpha® Eclipse II 6" Blade | 1 |
| Muffler | 2 |
| Reduced Flow Air Inlet Fitting | 1 |
| Hook & Loop Strap | 2 |
Usage Instructions for the Alpha® Pneumatic Stone Cutting Machine

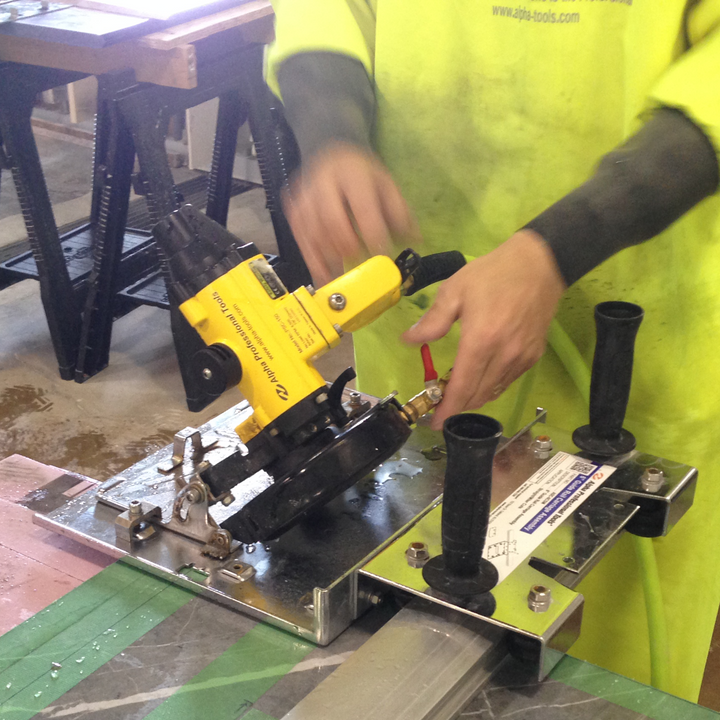

The Alpha® PSC-150 pneumatic stone cutter is designed for industrial stone cutting applications, including miter cutting of granite, engineered stone, porcelain panels, and marble. It can be used for precise sink-hole and groove cutting, as well as rodding applications. Operate the cutter with compressed air supplied at 90 PSI, ensuring the use of the recommended manifold system with a regulator and filter to extend maintenance intervals. Use the included Eclipse II turbo blade for granite or switch to specialized blades such as the Katana for porcelain or the Libero for marble. The kink-free water and air hoses enhance mobility and reduce operator fatigue during prolonged use.
Warranty Information
The Alpha® PSC-150 Pneumatic Stone Cutter comes with a one-year tool warranty, providing peace of mind with your investment in industrial-grade stone cutting equipment.
Upgrade your stone cutting capabilities with the Alpha® PSC-150 Pneumatic Stone Cutter today. Designed to combine power, precision, and portability, this stone saw is the ideal tool for contractors and stone fabricators who demand the best. Order now to experience efficient and reliable stone cutting performance on your next project.
