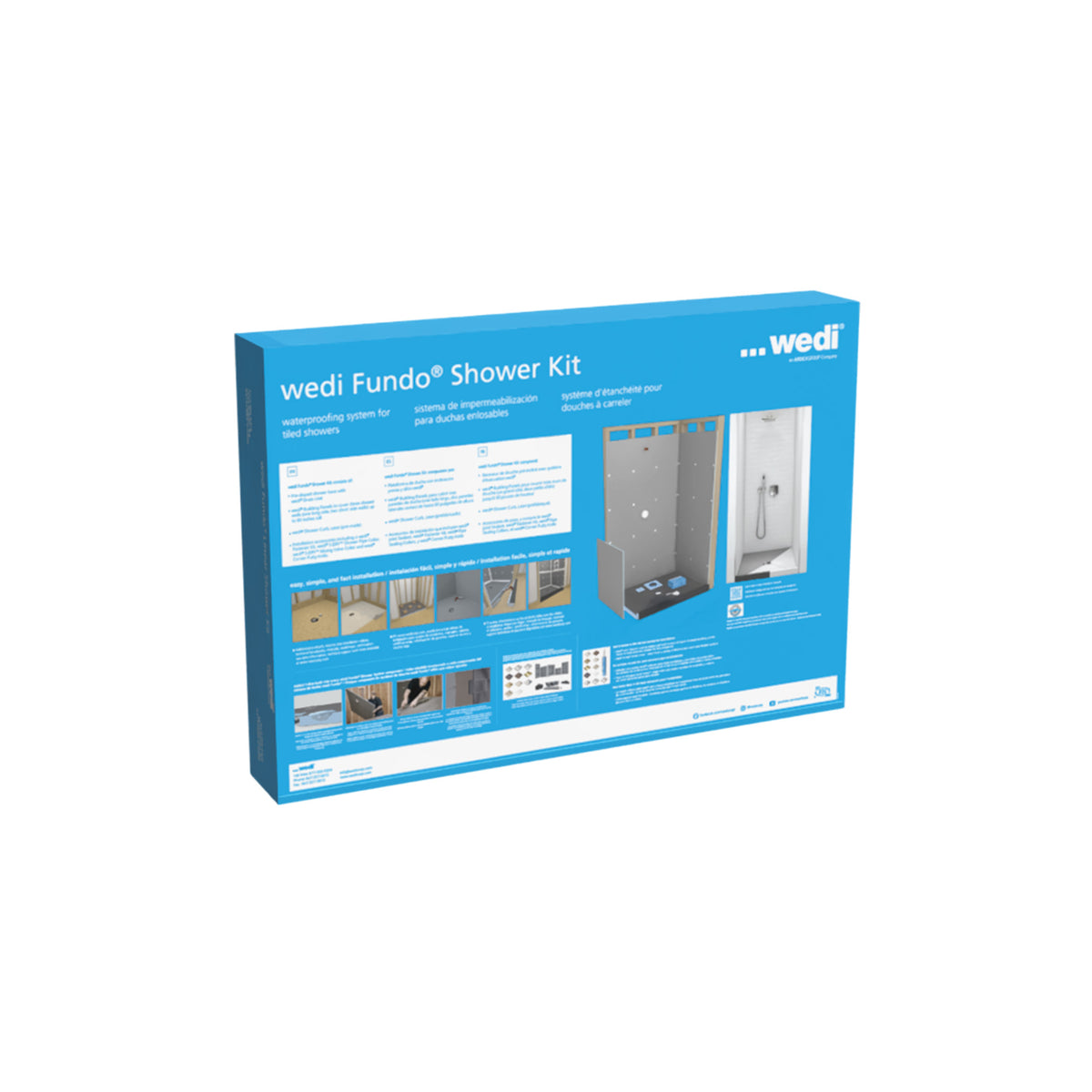

wedi Fundo Shower Kits
Fast Shipping
Easy Returns
Secure Checkout
Recommended Add-Ons
You May Also Need
Wedi
wedi Fundo Point Drain Covers
304 Stainless Steel Point Drain Covers for wedi Shower Systems
$163.91
At a Glance
Quick Decision Guide
Size
36" x 36"
Drain
Center
Wall Coverage
3 walls up to 80"
Curb
Fundo Curb Lean
Why Choose This Product
Key Benefits
Coordinated Shower Package
Combines the shower base, wall panels, drain unit, curb, fasteners, and plumbing seals.
Pre-Sloped Shower Base
Directs water toward the drain without forming a traditional mortar-bed slope.
Point Drain Flexibility
Offers center and off-center drain configurations for different plumbing layouts.
Click and Seal Connection
Connects mechanically to compatible 2" waste pipes without glue at the drain connection.
Three-Wall Coverage
Includes Building Panels for one long wall and two short walls up to 80" high.
Lean Shower Curb
Provides a coordinated threshold for defining the shower entrance.
Plumbing Penetration Seals
Includes components for the mixing valve and pipe openings.
Eleven Configurations
Accommodates shower footprints ranging from 36" x 36" through 48" x 72".
Product Information
Product Details
About This Product
wedi Shower Kit with Pre-Sloped Base
wedi Fundo Shower Kits provide coordinated waterproofing components for constructing tiled showers with center or off-center point drains. Each kit combines a pre-sloped Fundo shower base with a Fundo Shower Curb Lean, creating a defined shower floor and entrance without forming a traditional mortar-bed slope.
Integrated wedi Shower System Components
The shower base directs water toward the Fundo Click and Seal drain unit, which uses a mechanical compression connection with compatible 2" PVC, ABS, or cast-iron waste pipes. wedi Building Panels cover three shower walls up to 80" high to continue the coordinated waterproofing system beyond the shower floor.
Multiple Sizes and Drain Layouts
Eleven configurations cover shower footprints from 36" x 36" through 48" x 72". Most models feature a center drain, while the 36" x 72" size is also available with an off-center drain. Included fasteners, plumbing seals, and a corner putty knife help complete the wedi shower assembly.
Specifications
Brand
wedi
Part Number
US2000017
UPC
810204530582
Product Type
Tiled shower waterproofing kit
Size
36" x 36"
Drain Location
Center
Shower Base
Pre-sloped Fundo
Wall Coverage
3 walls up to 80"
Drain Unit
Fundo Click and Seal
Curb
Fundo Shower Curb Lean
Fastener Kit
100 screws and washers
Included Tool
Corner Putty Knife
Plumbing Seals
S-DRY mixing valve collar and pipe seal
Sold Separately
Drain cover and Joint Sealant
Assembly
U.S.A. with U.S. and German content
Common Questions
Frequently Asked Questions
What is included with each wedi Fundo Shower Kit?
Each kit includes a pre-sloped Fundo shower base, Building Panels for three walls, Click and Seal drain unit, Fundo Shower Curb Lean, a 100-count fastener kit, corner putty knife, S-DRY Mixing Valve Collar, and S-DRY Pipe Seal. Quantities and base dimensions vary by configuration.
Which sizes and drain locations are available?
Center-drain sizes include 36" x 36", 36" x 48", 36" x 60", 36" x 72", 42" x 42", 42" x 60", 42" x 72", 48" x 48", 48" x 60", and 48" x 72". A 36" x 72" off-center version is also available.
Are the drain cover and wedi Joint Sealant included?
No. The wedi Fundo drain cover and wedi Joint Sealant are sold separately with these kit configurations. Select a compatible drain cover and purchase enough Joint Sealant to complete panel seams, fastener locations, curb connections, and other required waterproofing transitions.
How does the pre-sloped shower base work?
The Fundo shower base has a factory-formed slope that directs water toward the selected point drain location. This removes the need to construct a traditional mortar-bed slope and provides a consistent tile substrate when the base is installed according to wedi requirements.
What waste pipes work with the Click and Seal drain?
The Fundo Click and Seal drain unit uses a mechanical compression connection with compatible 2" PVC, ABS, or cast-iron floor waste pipes. The drain connection itself does not require glue or sealant. Drain placement and the completed plumbing connection must still follow wedi instructions and applicable codes.
How much shower wall coverage is included?
The wedi Building Panels supplied with each kit cover three shower walls up to 80" high. The planned layout consists of one long wall and two short side walls. Additional panels may be required for larger enclosures or taller tiled wall areas.
What type of shower curb is included?
Each kit includes a wedi Fundo Shower Curb Lean for defining the shower entrance. The curb coordinates with the Fundo shower base and Building Panels as part of the waterproofing system. Confirm that the completed curb layout works with the planned shower door or enclosure.
What additional materials are required?
Tile, setting mortar, grout, plumbing fixtures, shower doors, and general installation tools are not listed as kit contents. A compatible wedi drain cover and wedi Joint Sealant must also be purchased separately. Project requirements may call for additional panels, sealant, or accessories.
