The Alpha® Quad diamond blade is engineered for stone fabricators and contractors who demand precision in dry flush cutting. This high-performance grinder diamond blade features a unique Quad Drive Adapter design, allowing secure mounting on angle grinders without the need for a lock nut. Ideal for flush cutting applications, the Alpha® Quad blade delivers clean, chip-free cuts while maintaining safety with existing guards in place. Its versatility makes it the preferred choice for creating 90-degree inside corners, cleaning saw marks, and reaching tight or hard-to-access areas.
Key Features of the Alpha® Quad Flush Cutting Blade
- Exclusive Quad Drive Adapter: Eliminates the need for a lock nut and ensures secure mounting on high-speed angle grinders.
- Flush Cutting Capability: Designed specifically for flush cutting, allowing precise cuts close to edges and corners.
- Chip-Free Cutting: Provides clean cuts on the most demanding dry cutting tasks without damaging materials.
- Fits Most Popular Angle Grinders: Compatible with a wide range of 20mm arbor angle grinders.
- Turbo Blade Design: Optimized for dry cutting with enhanced durability and cutting speed.
Alpha® Quad Size Specifications
Part No. | Size | Thickness | RPM | Arbor Type |
---|---|---|---|---|

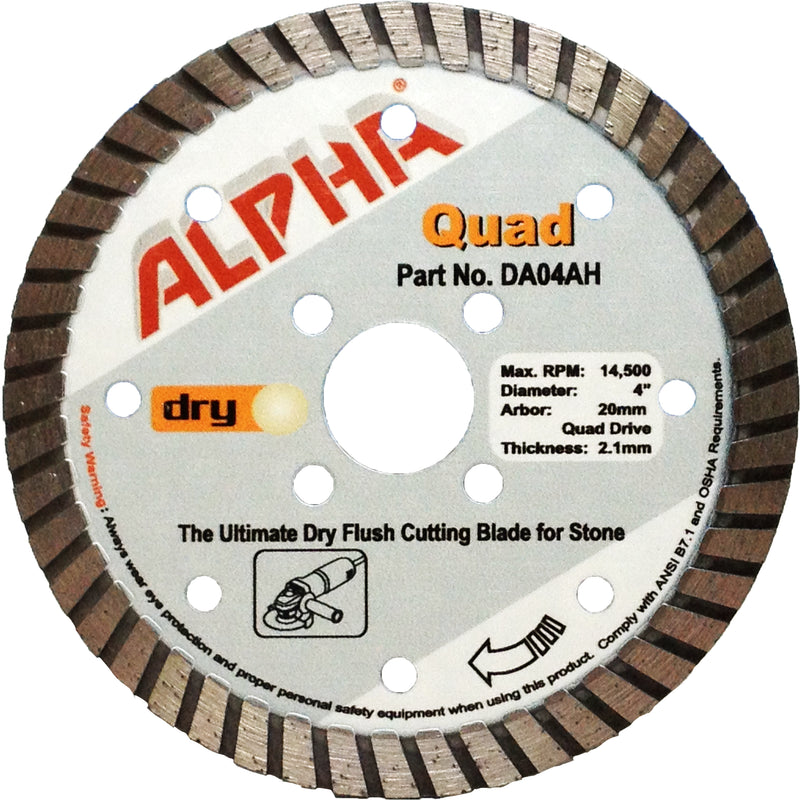

DA04AH | 4" | 2.1 mm | 14,500 | 20mm Quad Drive |

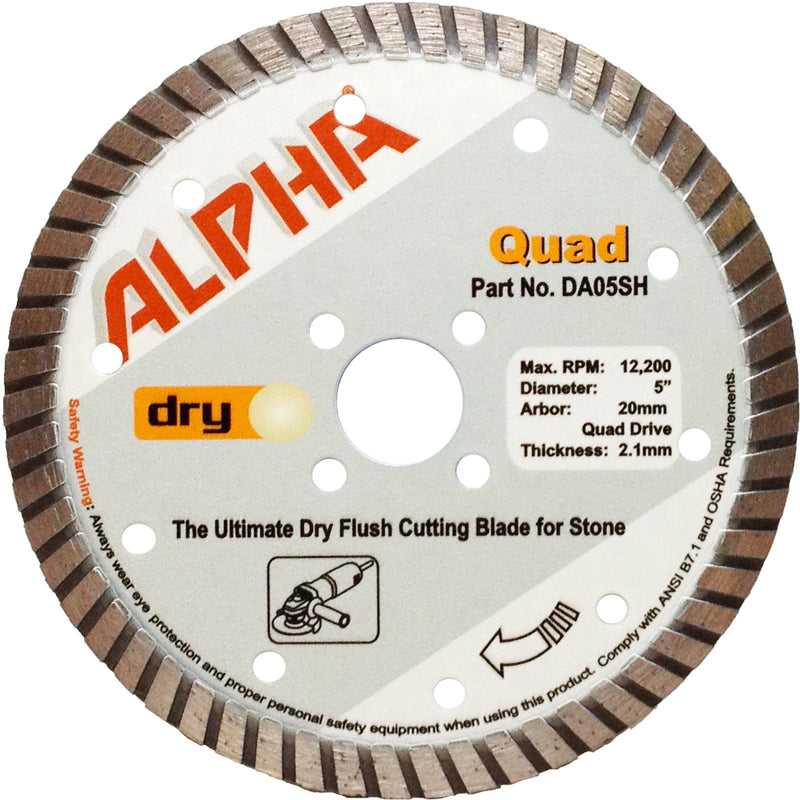

DA05SH | 5" | 2.1 mm | 12,200 | 20mm Quad Drive |

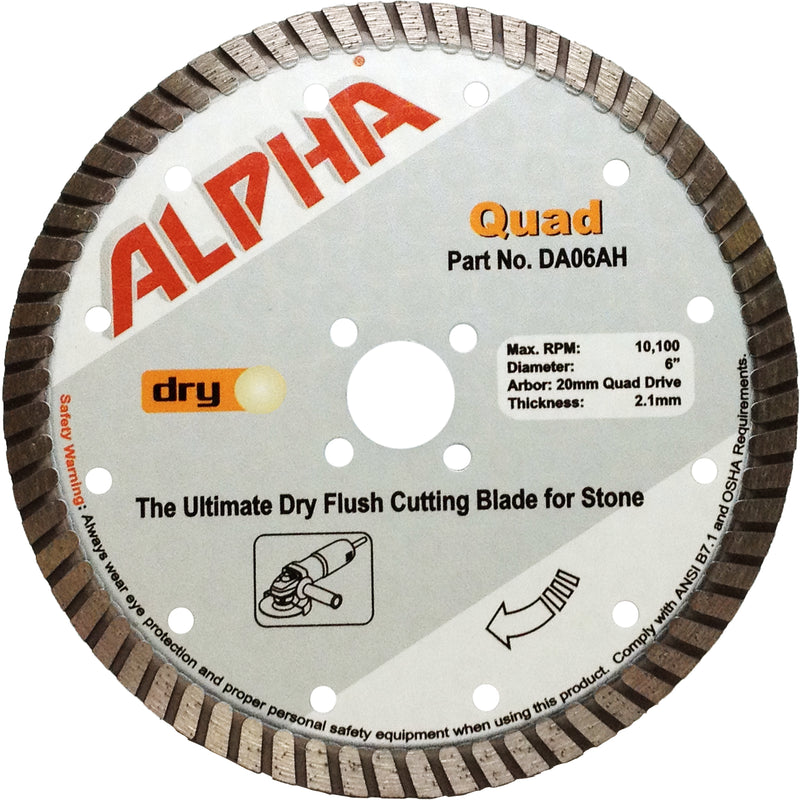

DA06AH | 6" | 2.1 mm | 10,100 | 20mm Quad Drive |

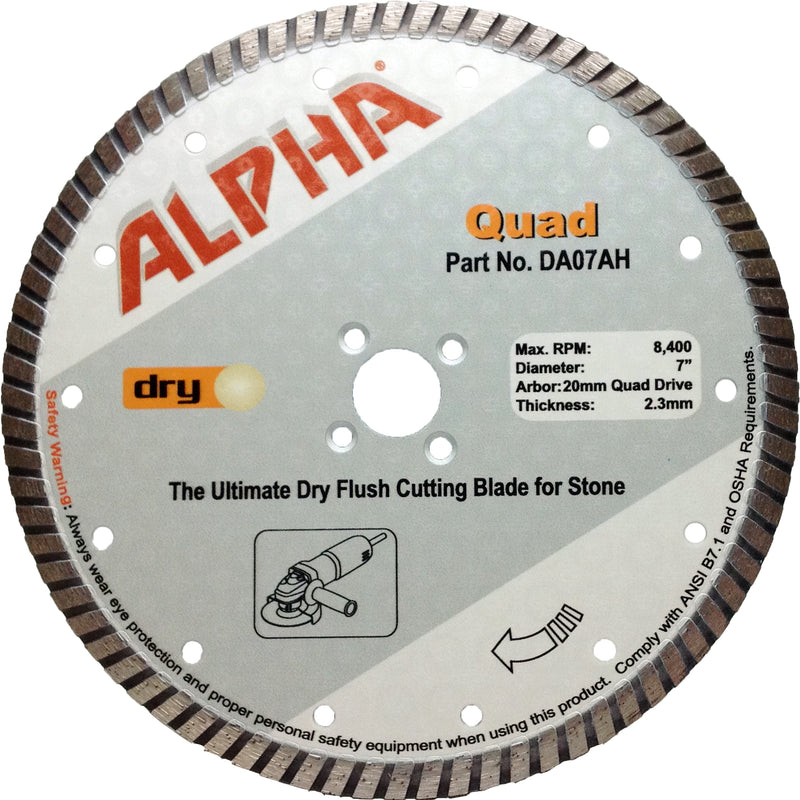

DA07AH | 7" | 2.3 mm | 8,400 | 20mm Quad Drive |
DA08AH | 8" | 2.3 mm | 7,400 | 20mm Flange with 8 holes |

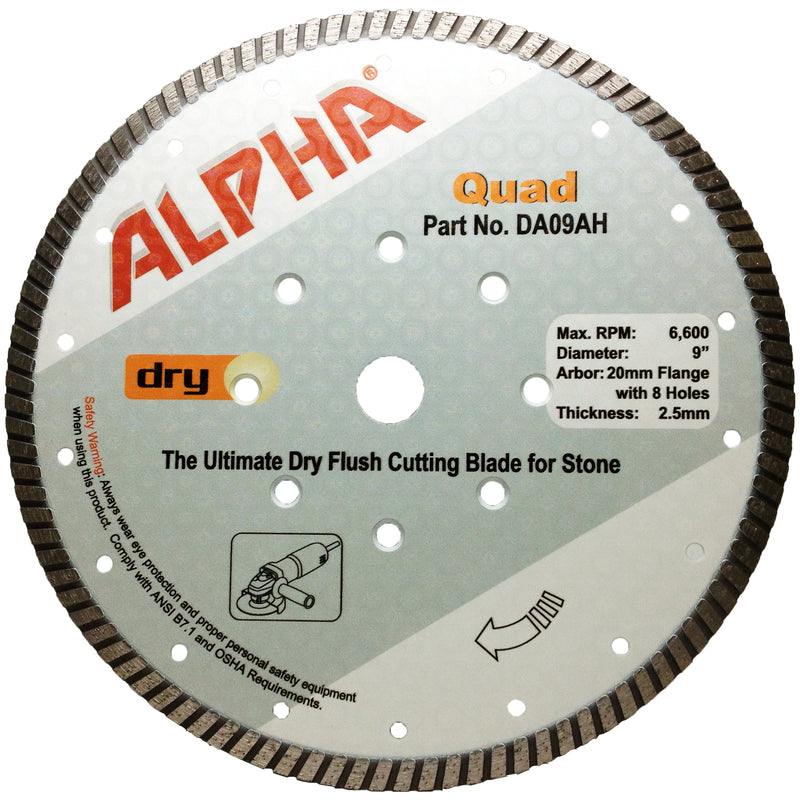

DA09AH | 9" | 2.5 mm | 6,600 | 20mm Flange with 8 holes |

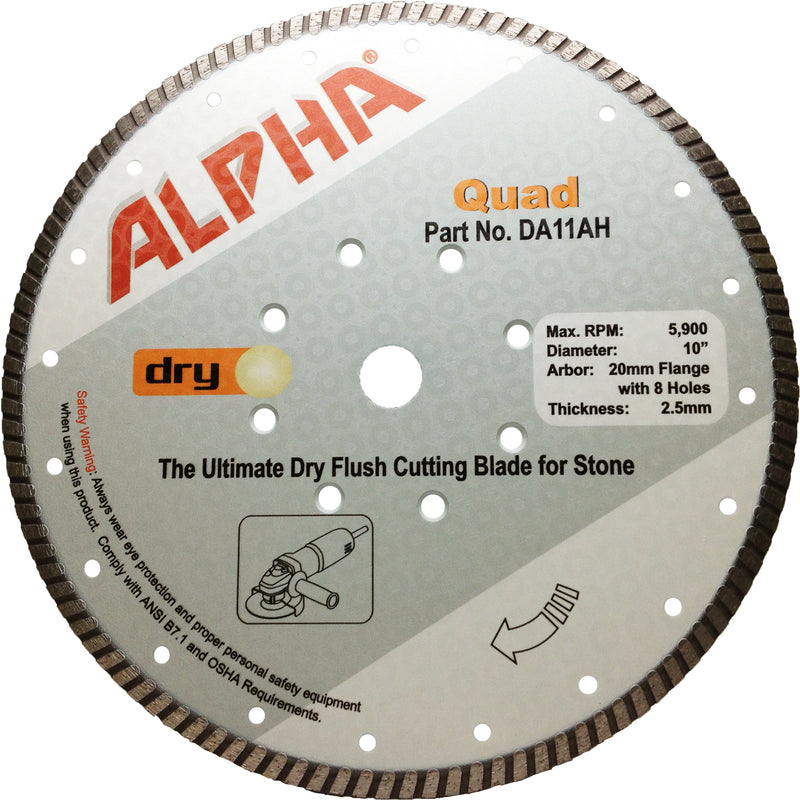

DA11AH | 10" | 2.5 mm | 5,900 | 20mm Flange with 8 holes |
Usage for Stone Fabricators and Contractors
The Alpha® Quad flush cutting blade is ideal for dry flush cutting on stone, concrete, and other hard materials. Stone fabricators use it to achieve precise 90-degree inside corners and clean up large saw cut marks efficiently. Contractors benefit from converting standard angle grinders into cutting tools without removing the safety guard. Sculptors appreciate the blade’s ability to reach tight and hard-to-access corners for detailed work. For best results, use with the Alpha® Quad Drive Adapter on compatible high-speed angle grinders.
Upgrade your cutting tools with the Alpha® Quad diamond blade for unmatched flush cutting performance. Order now to experience precision, durability, and versatility on your next project.
