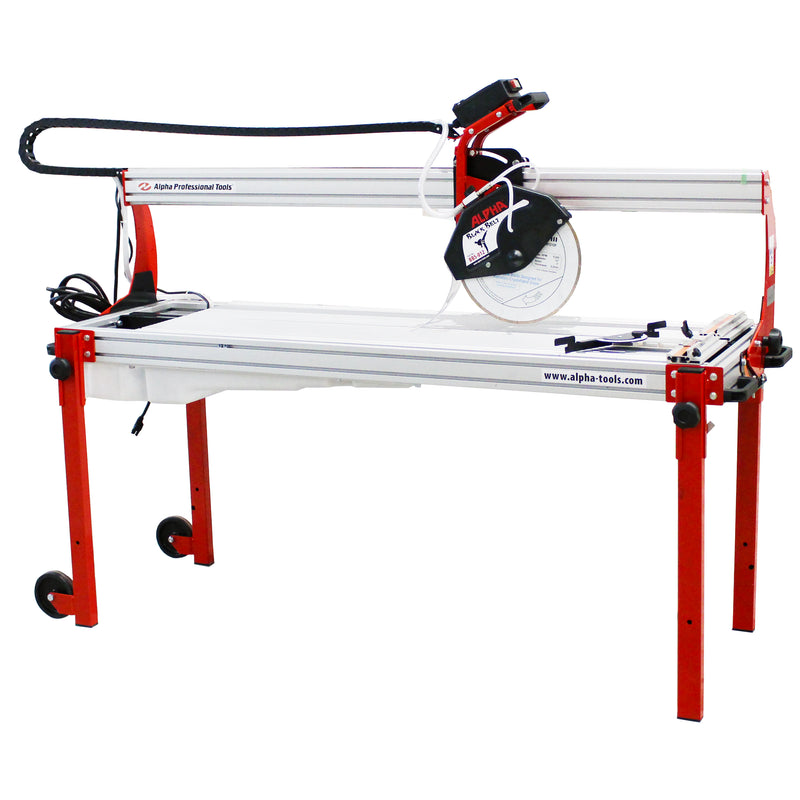

The Alpha® 51" Black Belt Rail Saw is a professional wet saw designed for precise cutting of ceramics, porcelain, glass panels, and various stone materials. Built for contractors, tile installers, and hardscaping experts, this durable wet tile saw combines powerful performance with a rugged aluminum chassis and advanced features for stable, accurate cuts on large format tiles and stones.
Key Features of the Alpha® 51" Black Belt Rail Saw
- Professional Quality Rail Saw: Ideal for ceramics, porcelain, glass, and other materials.
- Rugged Aluminum Table Chassis: Provides stable operation and long service life.
- Powerful Motor: 115V-60Hz, 9.6Amp, 2HP (1.5kW), 2,800 RPM with direct drive shaft.
- Blade Compatibility: Supports 10” and 12” blades with 1” and 60mm arbors.
- Cutting Depth: Up to 2-1/4” in a single pass and 3-3/8” with step cut.
- Adjustable Cutting Head: Mechanical vertical tilting system for depth control.
- Precision Movement: Stainless steel head rails and adjustable armored ball bearings.
- Side Tilt Capability: Up to 45 degrees for miter cuts.
- Maintenance-Free Water Pump: Magnetic-induction pump delivers ample water on both blade sides.
- Safety Features: Retractable legs with fall protection and multiple blade guards to reduce exposure and water splash.
- Mobility: Table handles and heavy-duty wheels for easy transport.
- Cutting Capacity: Rip cut up to 51” and diagonal cut up to 33”.
- Heavy Load Support: Maximum load of 400 lbs (180 kgs).
- Warranty: One year tool warranty for peace of mind.
Alpha® 51" Black Belt Rail Saw Specifications
| Specification | Details |
|---|---|
| Model | BBS-012 |
| Voltage | 115 Volts |
| Frequency | Single-phase AC, 60 Hz |
| Amperage | 9.6 Amps |
| Power | 1200 Watts (2.0 HP / 1.5 kW) |
| Max RPM | 2,800 RPM |
| Weight | 128 lbs (58 kgs) |
| Arbor Size | 1" (25.4 mm) & 60 mm |
| Blade Diameter | 10” / 12” (250 mm / 300 mm) |
| Max Cutting Depth | 2-1/4” Single Pass, 3-3/8” Step Cut |
| Max Cutting Length | Straight 51" (130 cm), Diagonal 33" (84 cm) |
| Cord Length | 16.4 ft (5 m) |
| Plug Type | 16A 120V ~ 2P+T |
Size Specifications
| Cut Type | Max Length | Max Depth |
|---|---|---|
| Rip Cut | 51" (130 cm) | 2-1/4” Single Pass |
| Diagonal Cut | 33" (84 cm) | 3-3/8” Step Cut |
Usage for Tile Installers and Hardscaping Professionals
This wet tile saw is engineered for demanding hardscaping and tile cutting jobs, including large format tile and stone cutting. Its precise rail system, adjustable cutting head, and robust water delivery pump ensure clean cuts with minimal dust. Perfect for contractors handling porcelain, ceramics, and glass, the Alpha® Black Belt Rail Saw boosts productivity on site with easy transport and reliable operation.
Warranty Information
The Alpha® 51" Black Belt Rail Saw comes with a one-year tool warranty, providing reliable support and protection for your investment.
Invest in the Alpha® 51" Black Belt Rail Saw today for powerful, precise cutting performance you can trust. Order now to enhance your tile installation and hardscaping projects with this versatile electric tile cutter.
