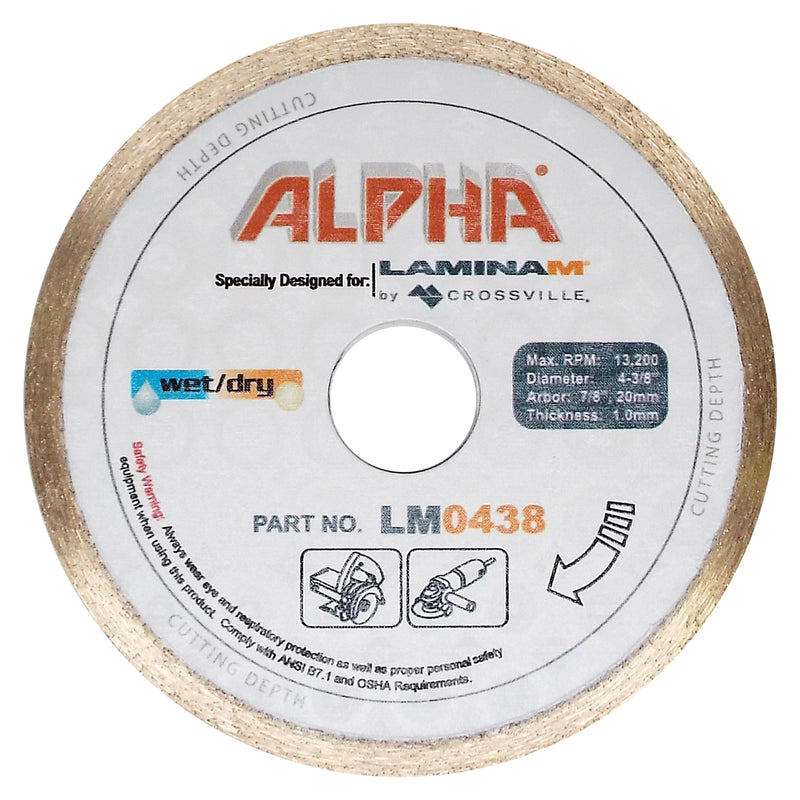

Alpha® Crossville 4-3/8" Laminam® & Thin Porcelain Tile Cutting Blade
SKU: ALP-DB-LAMINAM-438-LM0438
The Alpha® Crossville Laminam Blade is a high-performance saw blade specifically engineered for cutting Laminam and other porcelain thin panels. Ideal for fabricators, contractors, and tile contractors, this diamond blade delivers precise, chip-free cuts with minimal waste. Its smooth continuous diamond rim and bond hardness optimized for glass materials make it perfect for plunge cutting, edge trimming, and cutting internal radii on delicate thin porcelain panels. This blade offers a durable, cost-effective cutting solution that maintains high-quality, straight cuts at high speeds.
Key Features of the Alpha® Crossville Laminam Saw Blade
- Specially Designed for Laminam® by Crossville®: Ensures compatibility and optimal cutting performance on Laminam porcelain panels.
- Chip-Free Cutting: Minimizes chipping on thin porcelain tiles and panels for a clean finish.
- Smooth Continuous Diamond Rim: Provides precise, high-quality cuts with reduced edge damage.
- Bond Hardness Optimized for Glass Materials: Enhances durability and cutting accuracy.
- Versatile Use: Suitable for plunge cutting, trimming near edges, and internal radius cuts.
- Wet and Dry Use: Allows flexible cutting conditions based on job requirements.
Specifications for Alpha® Crossville Laminam Diamond Blade
| Part No. | Size | Thickness | Max RPM | Arbor(s) |
|---|---|---|---|---|
| LM0438 | 4-3/8" | 1.0 mm | 13,200 | 7/8", 20 mm |
Usage for the Alpha® Laminam Diamond Blade
This saw blade is recommended for fabricators and tile contractors working with Laminam® porcelain thin panels. It excels in high-speed cutting applications including plunge cuts, edge trimming, and internal radius cuts. Its ability to operate in both wet and dry conditions offers flexibility on the job site, ensuring clean, straight, and true cuts with minimal chipping, which reduces material waste and improves efficiency.
Equip your saw with the Alpha® Crossville Laminam Diamond Blade to achieve professional, precise cuts on porcelain thin panels. Order today to experience a durable, high-quality diamond blade designed to meet the demands of fabricators and tile contractors.
Frequently Asked Questions
What materials is the Alpha® Crossville Laminam Blade designed to cut?
This blade is specifically engineered for Laminam and other porcelain thin panels, making it ideal for cutting delicate materials with precision.
Can this blade be used for both wet and dry cutting applications?
Yes, the Alpha® Crossville Laminam Blade is suitable for both wet and dry use, allowing flexibility based on your job site conditions.
What types of cutting tasks is this blade suitable for?
It performs well in plunge cutting, edge trimming, and cutting internal radii, all while maintaining clean and chip-free cuts.
What size is the blade and what arbor sizes are supported?
The blade is 4-3/8" in diameter with a 1.0 mm thickness. It supports 7/8" and 20 mm arbor sizes.
Who is the Alpha® Crossville Laminam Blade recommended for?
It is recommended for fabricators, contractors, and tile professionals working with porcelain thin panels who require high-precision and durability.
