The GoBoard Point Drain Shower Pan Kit is a cut-to-fit system used to construct custom point drain shower bases using lightweight waterproof building panels.
The shower pan system allows installers to fabricate a shower base on-site without ordering pre-sloped or pre-sized pans. Pre-sloped wedges, curbs, and the integrated drain assembly are trimmed with a standard utility knife and assembled to form a continuous waterproof base.

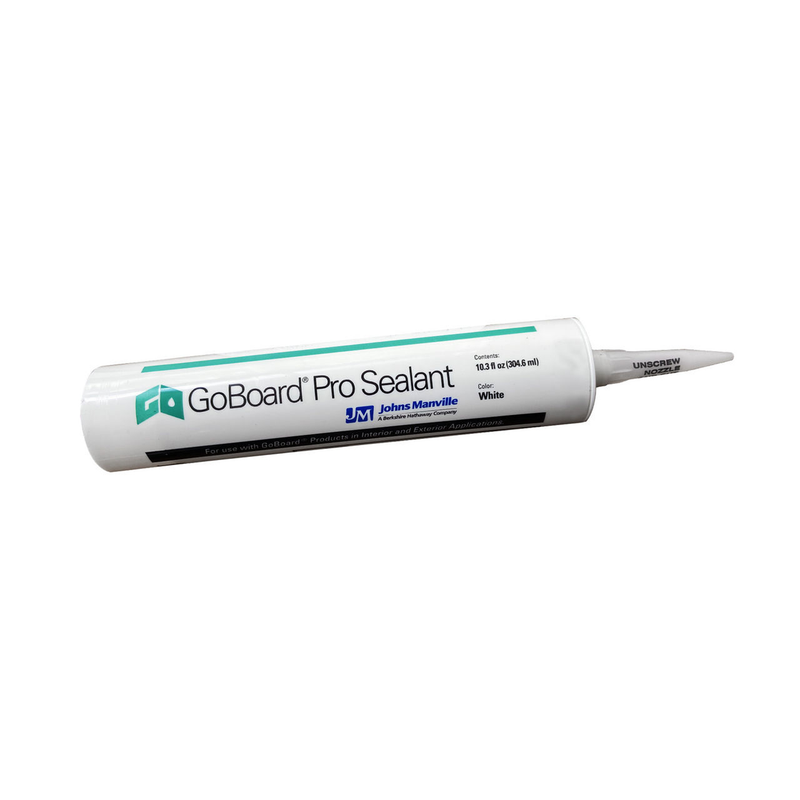

When sealed at the joints using the appropriate sealant, the assembled base provides a tile ready shower pan suitable for direct tile installation. The system is used in residential and commercial applications where a point drain configuration is required.
Key Features
- On-Site Customization: Supports construction of custom-size shower pans and shower bases.
- Utility Knife Cutting: Components can be cut on-site using a standard utility knife.
- Pre-Sloped Wedges: Direct water toward the point drain.
- Lightweight Components: Panels, wedges, and curbs are lightweight for easier handling.
- Integrated Waterproofing: Panels are waterproof and require sealing only at joints and fastener locations.

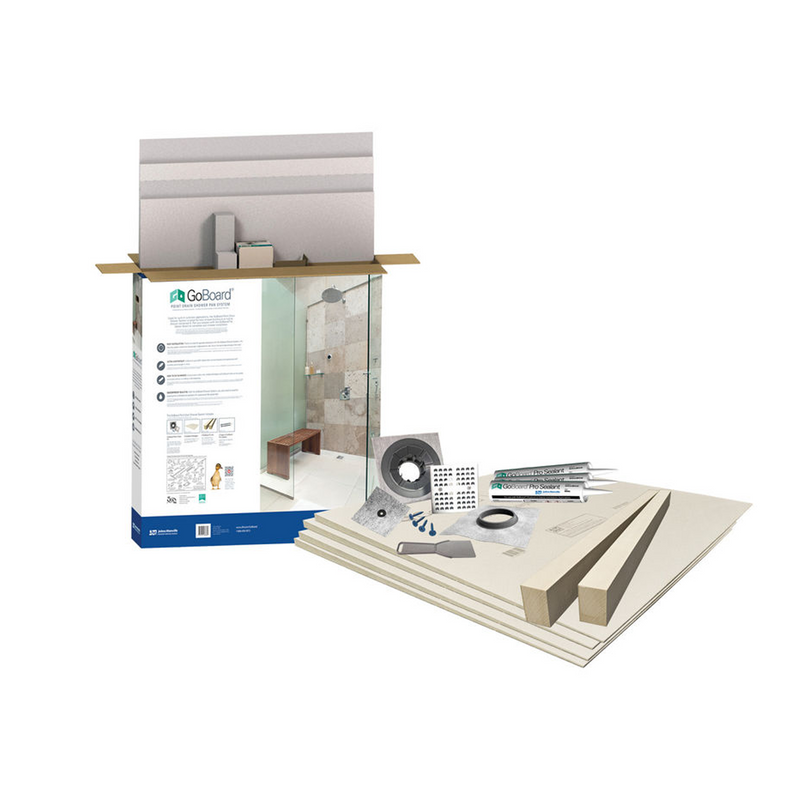

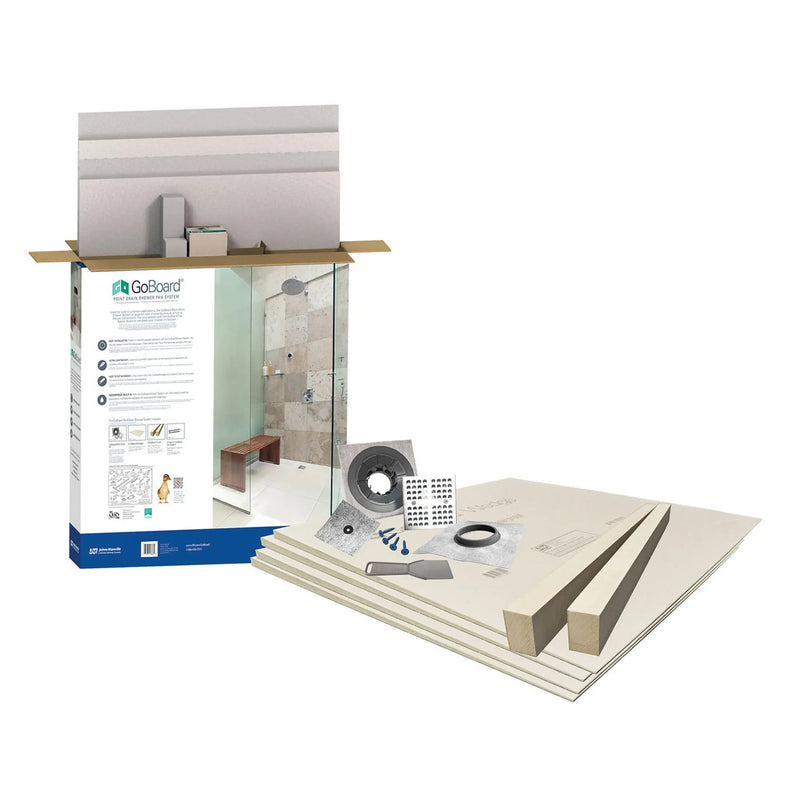

- Complete System Kit: Includes wedges, curbs, and drain assembly for building a point drain shower base.
- Tile Ready Surface: Assembled base supports direct tile installation.
Specifications
| Component | Quantity |
|---|---|

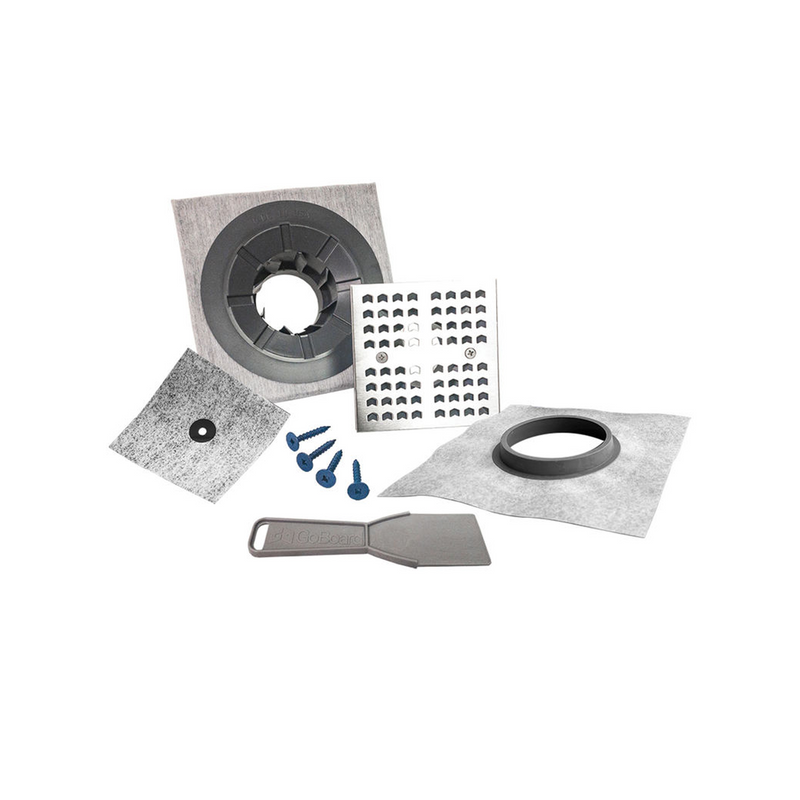

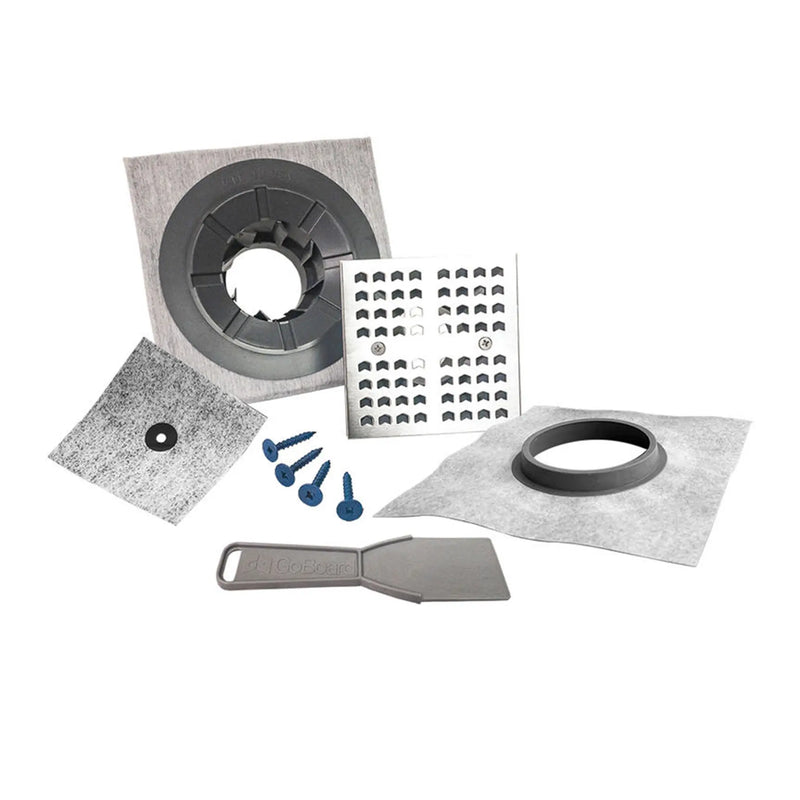

| Point Drain Assembly | 1 |
| Pre-Sloped Wedges (48" x 48") | 4 |

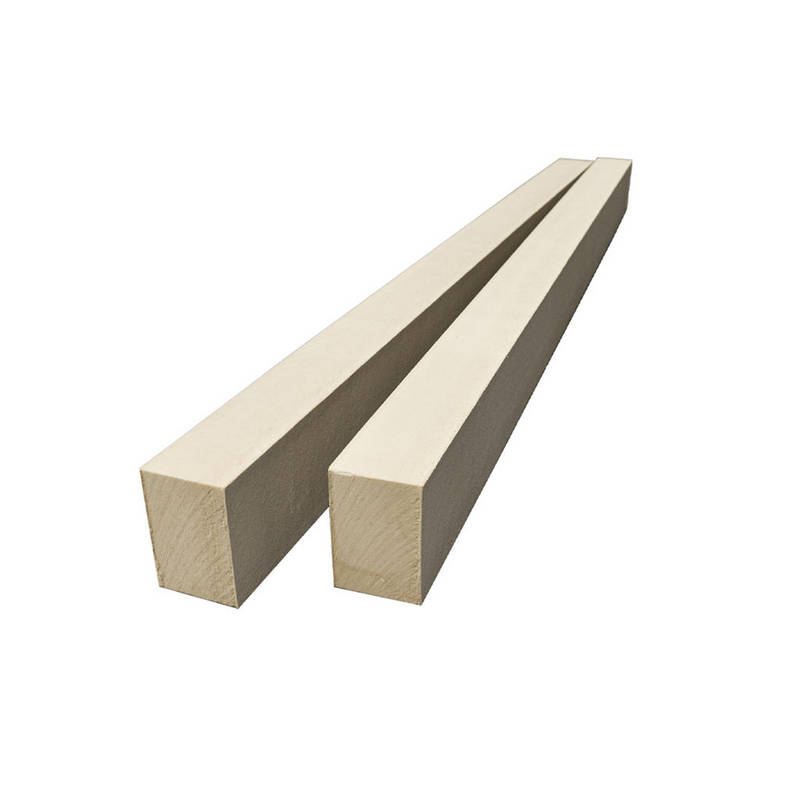

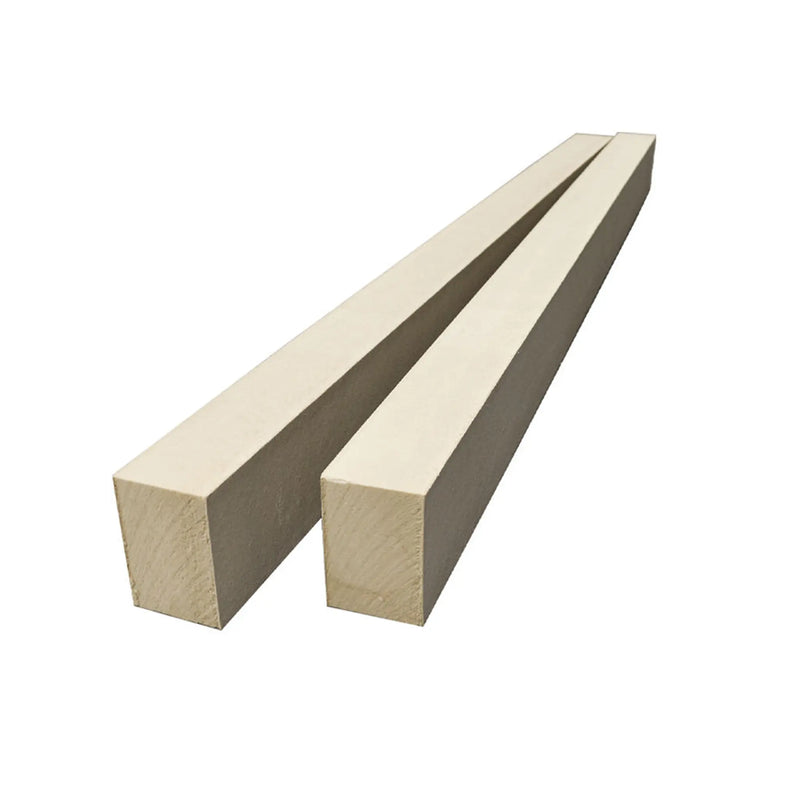

| Curbs (3.5" H x 2.5" W x 48" L) | 2 |
This shower base system is used where a point drain configuration is required.
