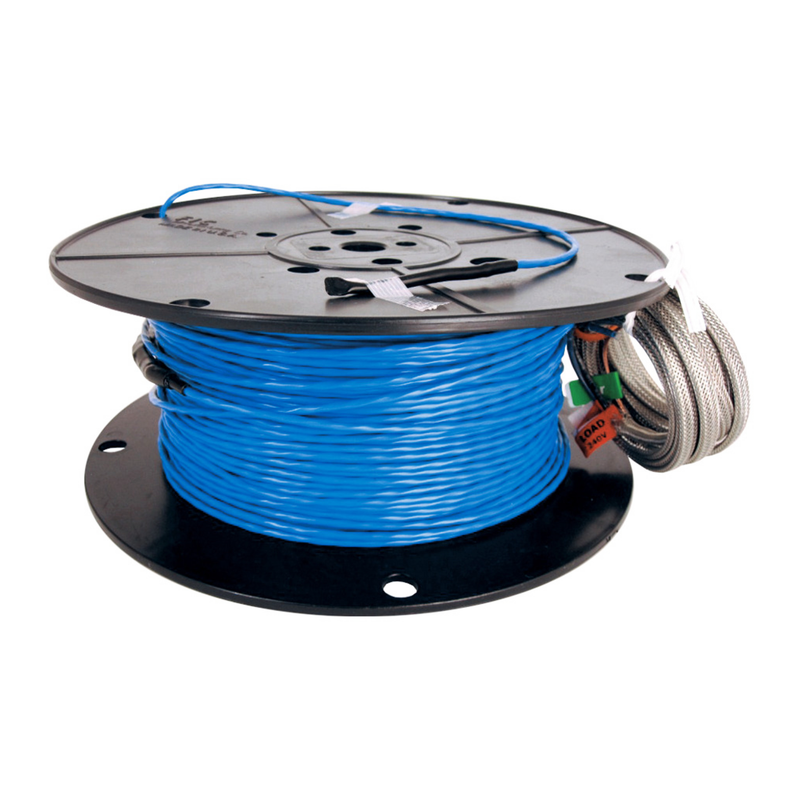

SunTouch 240V WarmWire Cables
SunTouch
SKU: SUN-WWCBL-90-240V-81019579
Stay warm and cozy with SunTouch 240V WarmWire Cables. These heating cables are a smart choice for underfloor heating in places like bathrooms, kitchens, and entryways. They offer a budget-friendly alternative to traditional heated mats, making your floors inviting and comfortable.
Specification | Details |
---|---|
Supply Voltage | 240 VAC, 1-phase |
Amp Draw | 1 amp per 20 ft² |
Maximum Circuit Load | 20 amps (15 amps with SunStat control) |
Wire Spacing | 2.5", 3", or 3.5" |
Maximum Temperature | 194°F (90°C) |
EMF | Less than 1 milligauss at 1/2" |
Minimum Bend Radius | 1" (25 mm) |
Power Lead Length | 10' (2.7 m) |
Watt Density |
|
Minimum Thinset | 3/8" (9.5 mm) |
Allowable Substrates |
|
Allowable Floor Coverings |
|
Transform your home with SunTouch 240V WarmWire Cables. Don’t miss out—order now and enjoy the comfort of warm floors!
