SunTouch 2' Wide 120V TapeMat Kit

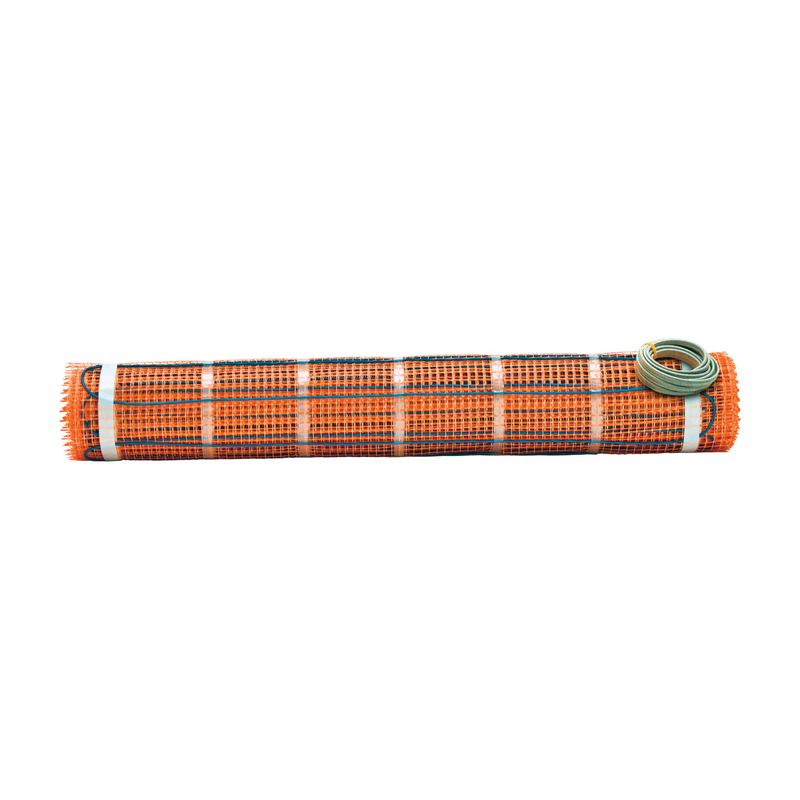

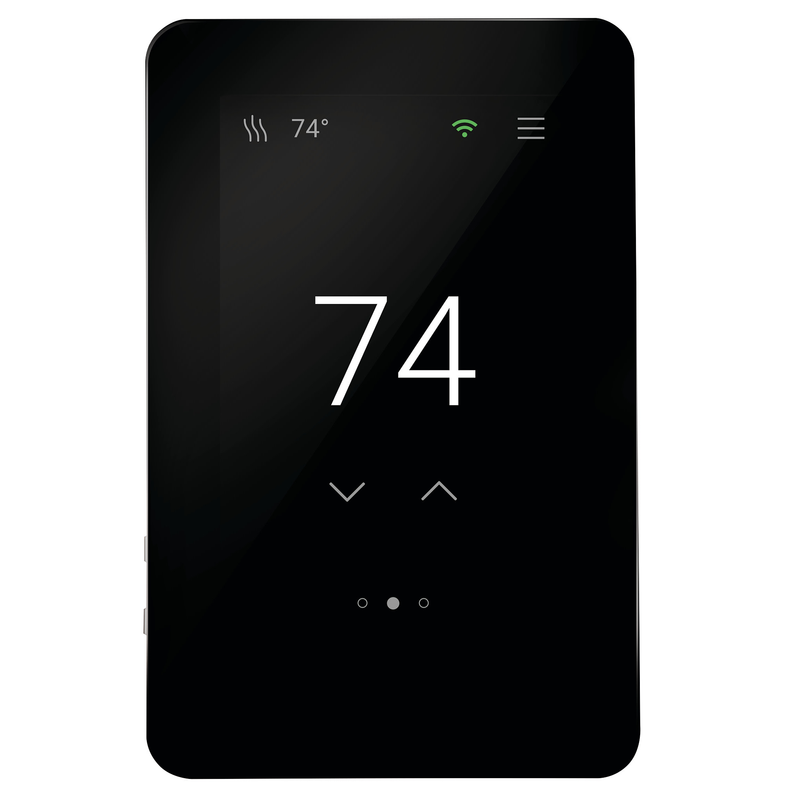

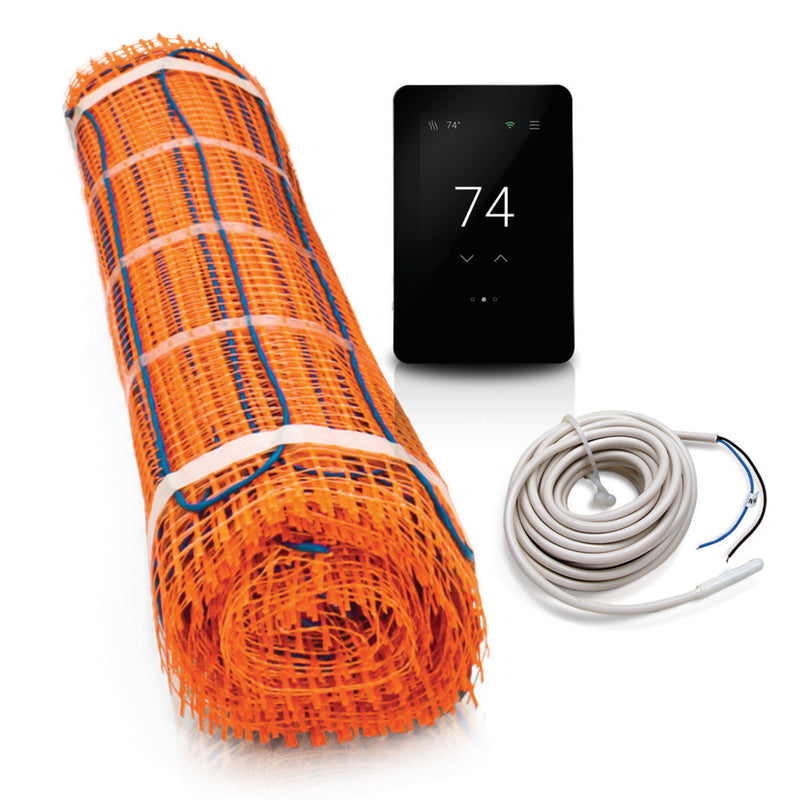

The SunTouch 2' Wide 120V TapeMat Kit offers a quick and easy solution for warming floors in bathrooms, kitchens, entryways, and more. This kit includes a TapeMat with 3-inch spacing, a SunStat ConnectPlus Thermostat, a floor sensor, and an installation manual. It’s suitable for use in shower areas where local authorities allow.
Key Features & Benefits
- Complete Kit: Includes TapeMat, SunStat ConnectPlus Thermostat, and floor sensor for easy installation.
- Versatile Heating: Ideal for bathrooms, kitchens, entryways, and other areas.
- Smart Connectivity: Control remotely via the Watts Home mobile app, compatible with Android and iOS.
- Voice Control: Works with Alexa and Google Assistant for hands-free operation.
- Shower Safe: Suitable for installation in shower areas where allowed by local authorities.
- Energy Efficient: Provides affordable underfloor heating with 3" wire spacing for optimal performance.
| Specifications | Details |
|---|---|
| Supply Voltage | 120VAC, 1-phase |
| Amp Draw | 120VAC: 1 amp per 10 sq ft. |
| Maximum Circuit Load | 20 amps (15 amps with SunStat Control) |
| Wire Spacing | 3" (76 mm) o.c. |
| Maximum Allowable Temperature | 194°F (90°C) continuously |
| EMF | Less than 1 milligauss at 1/2" (12.7 mm) above surface |
| Heating Elements | Oxygen-free copper or nickel-copper |
| Insulation | ETFE Fluoropolymer |
| Ground | Copper |
| Wire Length | 10' (2.7 m) |
| Watt Density | 12W/sq ft (129.0 W/m²) |
| Substrate | Backer board over wood subfloor, polymer-modified setting bed over wood or concrete slab |
| Floor Coverings | Tile/Stone, Carpet, Hardwood |
Order Now to enhance comfort and warmth in your home with this easy-to-install, energy-efficient floor heating solution!
