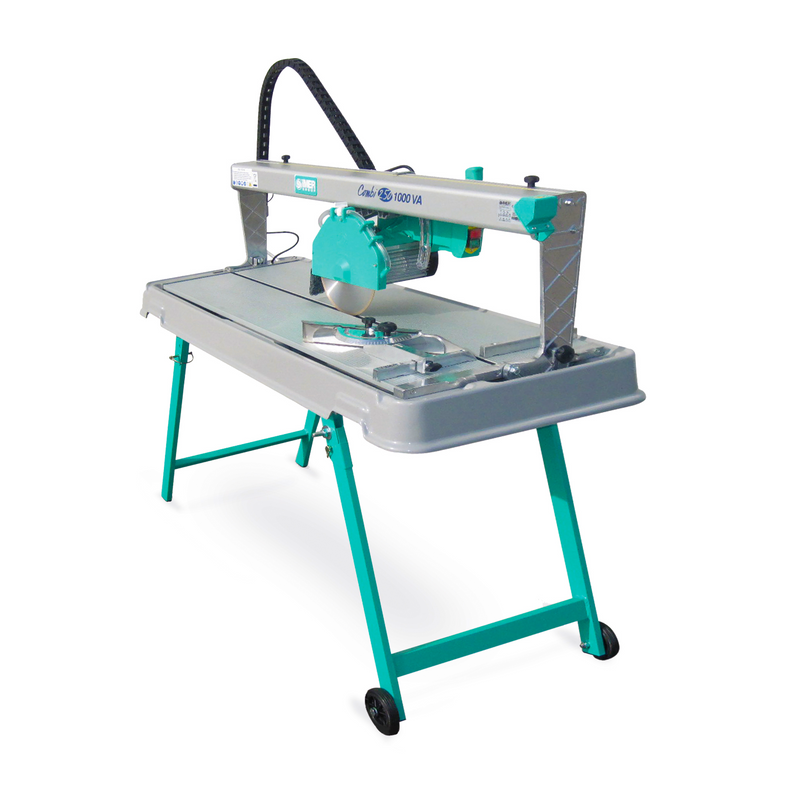

The Imer 40" Combicut 250-1000VA Tile Saw with 10" Blade and Plunge is designed for professional contractors and tile installers. This high-performance tile saw handles tiles up to 40" with ease, delivering precise cuts for your toughest projects.
Key Features
- Accurate Cutting: Overhead rail design ensures stability and precision.

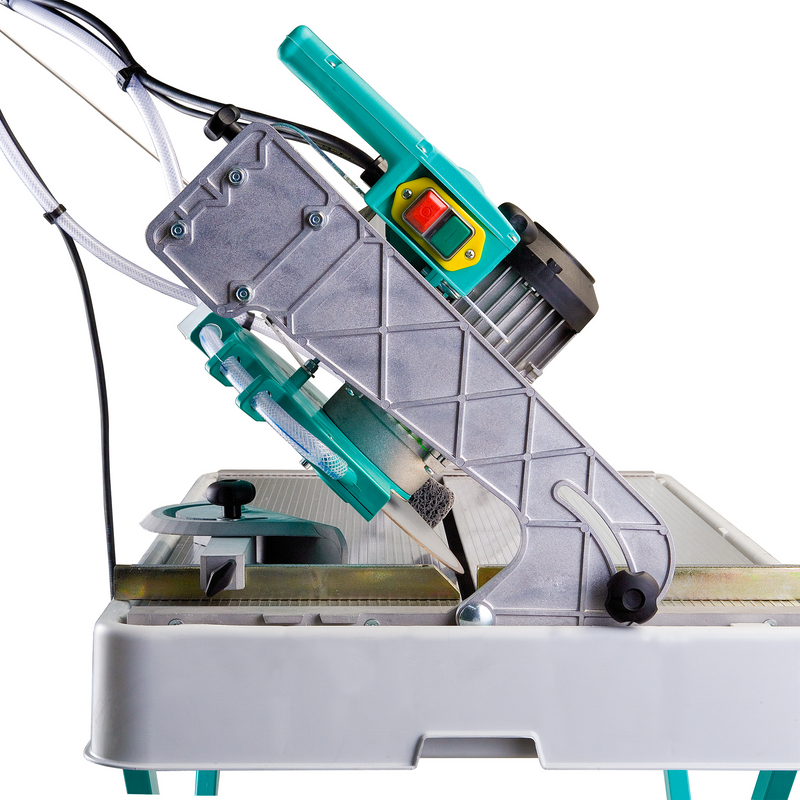

- Plunge Cuts: Cast aluminum cutting head for smooth, precise plunge cuts.

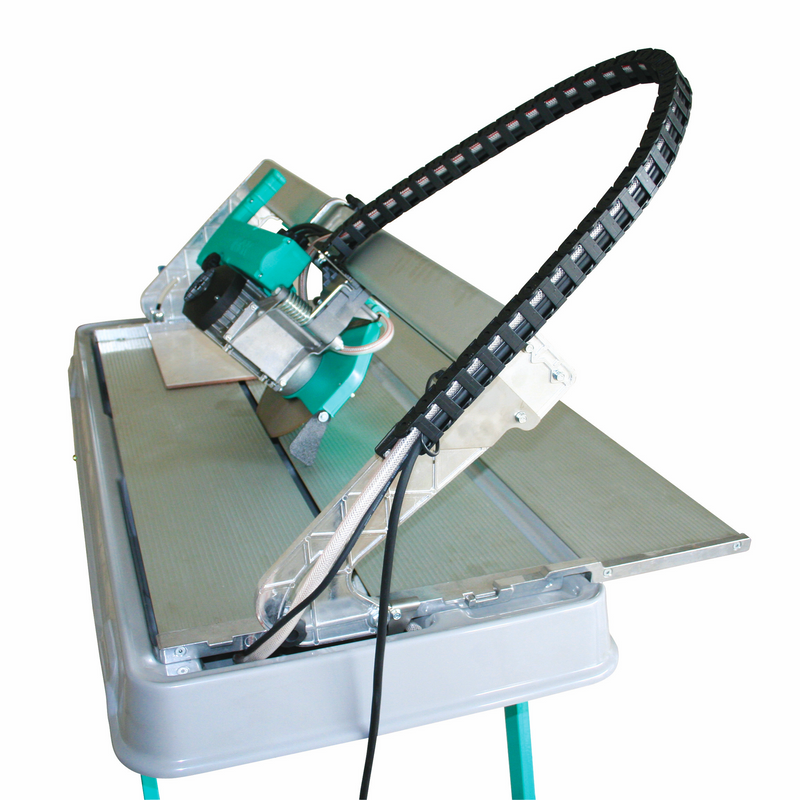

- Effortless Angled Cuts: Tilt the beam for accurate 45-degree cuts.
Standard Equipment
- 10" Continuous Rim Porcelain Blade: High-quality blade for porcelain and other hard materials.
- Integrated Stand with Wheel Kit: Easy mobility and stable setup with included stand and wheels.
- Side Table: Supports larger tiles for convenient handling.
- Protractor with 180Âş Scale: For precise angle measurements and cuts.
- High Flow Water Pump: Ensures steady water flow to keep the blade cool and minimize dust.
- Water Valve Control: Regulates water mist for cleaner cuts.

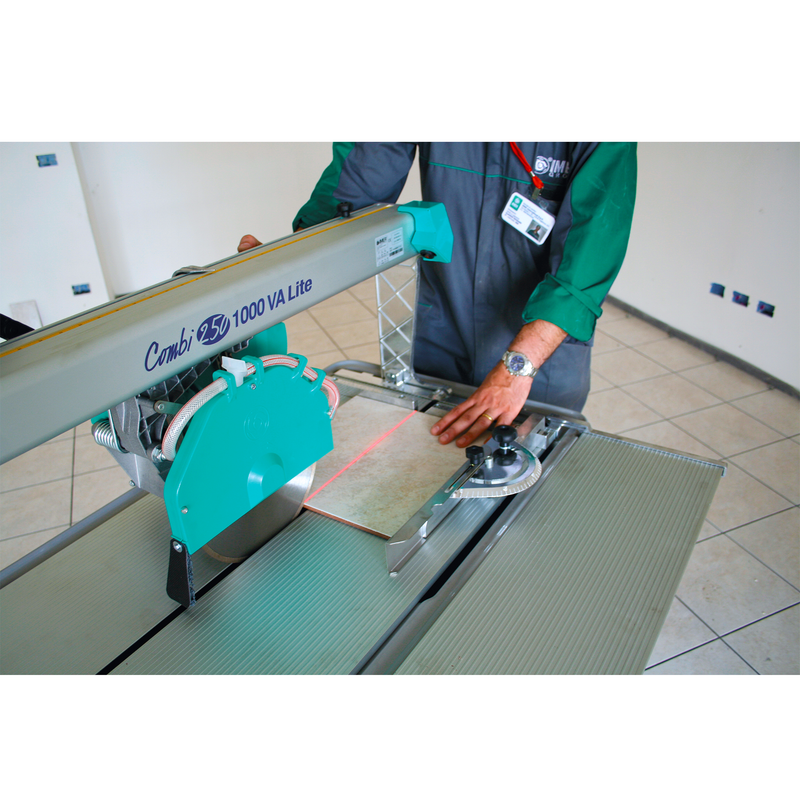

- Laser Guide: Enhances cutting accuracy with a built-in laser guide.
- High Impact Removable Poly Water Pan: Features a baffle to capture water and debris.
Specifications:
| Specification | Details |
|---|---|
| Model # | 1188174 |
| Blade Diameter | 10 in |
| Blade Shaft Diameter | 5/8 in |
| Max. Cutting Length (w/ Plunge Cut) | 37 in (40 in) |
| Max. Cutting Depth | 3.75 in |
| Motor Rating | 1.75 hp, 120V, 15A |
| Blade Speed | 2800 RPM |
| Weight (Boxed) | 92 lbs (98 lbs) |
| Water Pan Capacity | 12 gal |
| Water Pump Flow | 3 GPM |
| Dimensions (Boxed) | Length 55 in (58 in), Height 24 in (26 in), Width 25 in (27 in) |
Order the Imer 40" Combicut 250-1000VA today and elevate your tile cutting performance. Buy now and take your projects to the next level!
