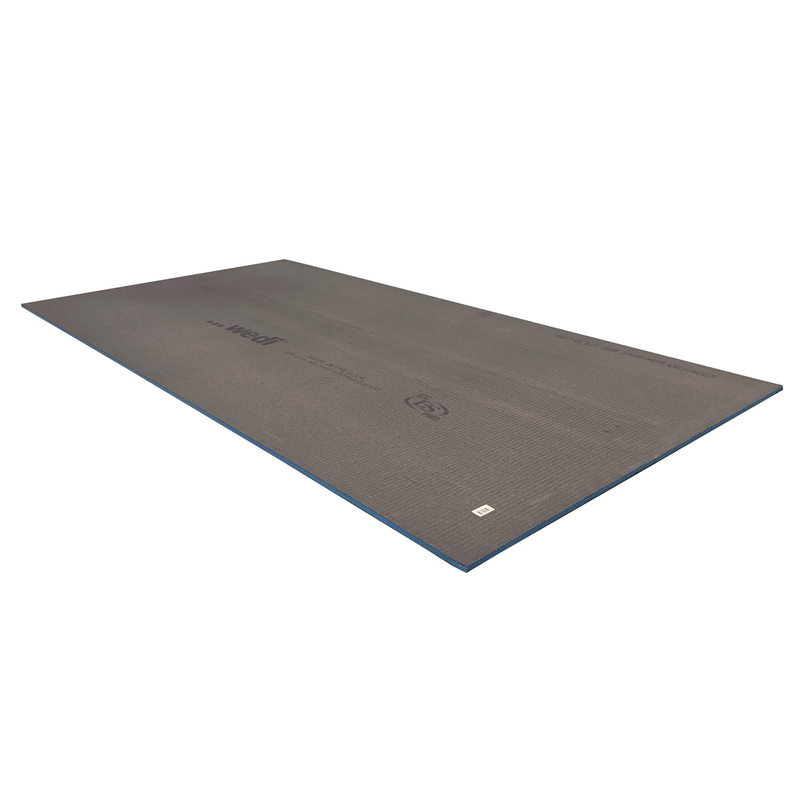

wedi® Building Panel is a versatile, waterproof tile backer board designed for wet rooms, showers, tub walls, and ceilings. This panel combines a tile backer board and waterproofing into one easy step, saving time and money on installations. It can be applied either horizontally or vertically and is fastened securely with wedi screws & washers. Once sealed, tiling can begin right away after the sealant dries to the touch.
Key Features & Benefits
- 100% Waterproof: Made with a closed-cell foam core, ensuring a waterproof barrier for walls and floors.
- Ready for Tiling: No need for additional waterproofing layers, tiles can be applied directly once installed.
- Versatile Installation: Can be installed horizontally or vertically, offering flexibility for your project.
- Easy to Cut: Panels can be easily cut with a utility knife, circular saw, or handsaw.
- Durable & Strong: Provides a solid backing with a strong bond surface for tiles and is resistant to pinholes and delamination.
- Time & Cost Efficient: Quick installation saves both time and money compared to traditional methods.
Specifications
| Property | Details |
|---|---|
| Compliant Standards | ASTM C 578, ANSI A118.10 |
| Thermal Conductivity | 0.23 Bbtu in/hr F |
| R-Value | 4.3 hr ft² F/Btu/in (for 1” thickness) |
| Tensile Strength | 65 psi |
| Flexural Strength | 627 psi |
| Waterproof Test | Passed (ASTM D4068 / ANSI A118.10) |
| Freeze & Thaw | Passed, no disintegration |
| Temperature Limits | -58°F to +165°F |
| Surface Burning Characteristics | Class A (Flame Spread: 20, Smoke Developed: 70) |
