At a Glance
Quick Decision Guide
Membrane Size
39" x 16'
Coverage
53 Sq. Ft.
Membrane Type
Waterproof Sheet Membrane
Vapor Resistance
0.09 Perms
Test Standard
ASTM E96 Method E
Applications
Walls, Floors, Showers & Steam Rooms
Installation
Modified Thinset Mortar
Made In
USA
Why Choose This Product
Key Benefits
Waterproof Protection
Waterproofs interior wall and floor assemblies beneath tile
Steam Room Performance
0.09 perm vapor resistance for steam shower and steam room applications
Flexible Construction
Pliable sheet membrane conforms to walls and floors
Installation Guides
Printed measuring and cutting lines simplify membrane layout
Multiple Substrates
Installs over suitable existing underlayments, including drywall
Tile Ready
Designed for use beneath ceramic tile, slabs and natural stone tile
Waterproof Seams
Compatible with wedi sealants and sealing tape for waterproof and vaporproof seams
Made in USA
Manufactured in the United States
Product Information
Product Details
Specifications
Brand
wedi®
Part Number
US5000001
Product Type
Waterproof Sheet Membrane
Membrane Size
39" x 16'
Coverage
53 Sq. Ft.
Vapor Resistance
0.09 Perms
Test Standard
ASTM E96 Method E
Suitable Coverings
Ceramic Tile, Slabs & Natural Stone Tile
Compatible Underlayment
Suitable Existing Wall & Floor Underlayments, Including Drywall
Installation Mortar
Modified Thinset Mortar, Including wedi PRO-SETâ„¢
About This Product
Waterproof Sheet Membrane for Tile Installations

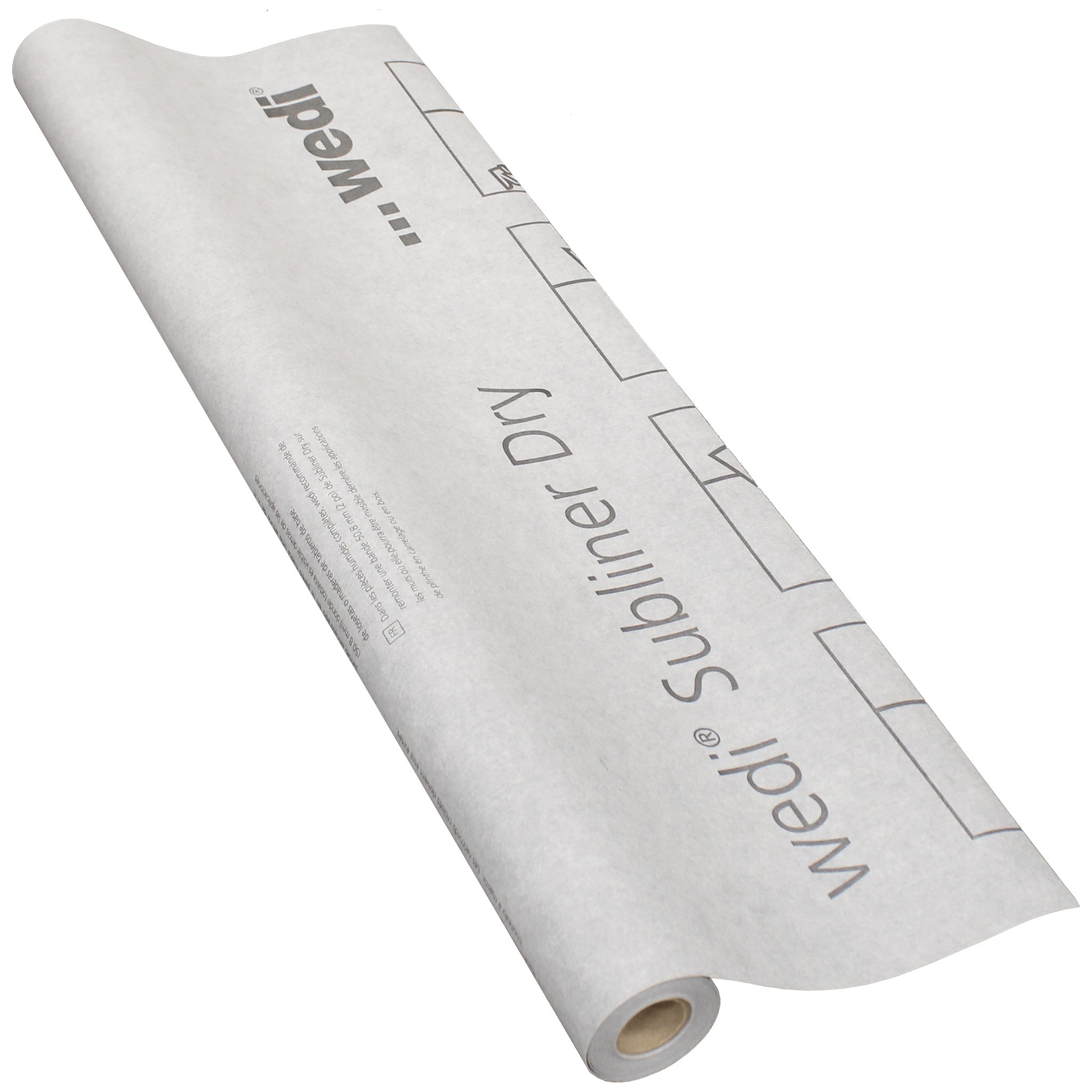

wedi® Subliner Dry is a flexible, tileable sheet membrane for waterproofing interior walls and floors, including showers and steam rooms. It installs over suitable existing wall and floor underlayments, including drywall, and can be covered with ceramic tile, slabs, and natural stone tile.
0.09 Perm Vapor Resistance for Steam Showers
Subliner Dry has a vapor resistance rating of 0.09 perms when tested to ASTM E96 Method E. This low-perm performance makes the membrane suitable for steam showers and steam rooms where both waterproofing and vapor management are required behind the tiled surface.
Flexible Membrane with Printed Installation Guides
The membrane combines strength with a pliable construction that makes it easier to measure, cut, position, and embed over wall and floor surfaces. Measuring and cutting lines are printed directly on the membrane to assist with layout during installation.
Overlapped or Sealing Tape Seam Installation
Subliner Dry installs in modified thinset tile mortar such as wedi® PRO-SET™. Adjacent sheets can be overlapped by 2", or butted together and covered with wedi® Subliner Dry Sealing Tape centered over the seam. Overlaps and sealing tape are embedded in wedi® Sealant 620 or wedi® S-DRY™ SEAL to complete the waterproof and vaporproof assembly.
Common Questions
Frequently Asked Questions
Can wedi Subliner Dry be used in steam showers?
Yes. Subliner Dry has a vapor resistance rating of 0.09 perms when tested to ASTM E96 Method E and is designed for use in steam showers and steam rooms.
Can wedi Subliner Dry be installed over drywall?
Yes. Subliner Dry can be installed over suitable existing wall and floor underlayments, including drywall.
What mortar is used to install wedi Subliner Dry?
Subliner Dry is installed with modified thinset tile mortar, such as wedi PRO-SETâ„¢.
How are wedi Subliner Dry seams waterproofed?
Sheets can be overlapped by 2" or installed with butted seams covered by wedi Subliner Dry Sealing Tape. Overlaps or sealing tape are embedded in wedi Sealant 620 or wedi S-DRYâ„¢ SEAL to create waterproof and vaporproof seams.
What types of tile can be installed over Subliner Dry?
Subliner Dry can be used beneath ceramic tile, slabs, and natural stone tile on interior walls and floors.
