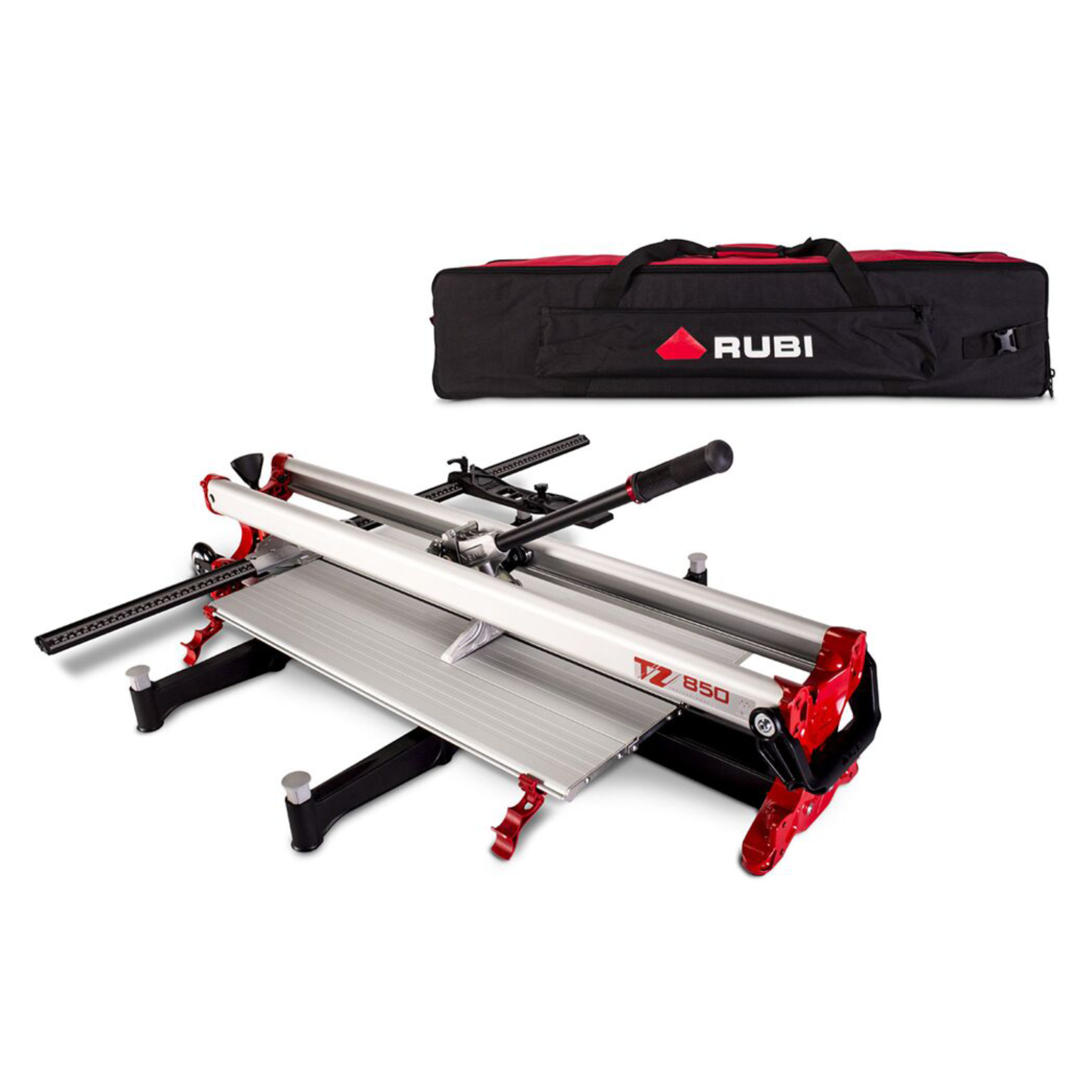

RUBI TZ Manual Tile Cutters
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut
33.5"
Diagonal Cut
24" × 24"
Tile Thickness
1/8" - 13/16"
Breaking Force
3,307 lbs.
Breaker Type
MULTIPOINT
Scoring System
SLS Secure Lock System
Included Scoring Wheels
5/16" & 3/4" PLUS
Best For
Porcelain & Ceramic Tile
Why Choose This Product
Key Benefits
3,307 lb Breaking Force
High-performance MULTIPOINT breaker handles demanding porcelain tile
SLS Scoring System
Provides precise and efficient scoring control
Bearing-Guided Carriage
Double-row radial bearings provide smooth and accurate movement
Rigid Guide System
Closed aluminum guides with steel bearing raceways improve cutting accuracy
Large-Format Support
Floating tables and foldable extensions support larger tile
Repetitive Cutting
Rotating square and 12" lateral stop support repeat and angled cuts
Durable Construction
Steel frame and aluminum components withstand intensive professional use
Transport Ready
Includes wheels, transport handle and reinforced textile carrying bag
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
17956
UPC
8413797179569
Product Type
Professional Manual Tile Cutter
Model
TZ-850
Straight Cut Capacity
33.5"
Diagonal Cut Capacity
24" × 24"
Tile Thickness
1/8" - 13/16"
Breaking Force
3,307 lbs.
Recommended Materials
Porcelain & Ceramic Tile
Breaker
MULTIPOINT
Scoring System
SLS Secure Lock System
Included Scoring Wheels
5/16" & 3/4" PLUS
About This Product
Professional Manual Tile Cutter for Porcelain Tile
RUBI® TZ Manual Tile Cutters are designed for intensive professional cutting of ceramic tile, with performance optimized for porcelain. The high-performance MULTIPOINT breaker delivers up to 3,307 lbs. of breaking force for cutting tile from 1/8" to 13/16" thick.
Precise Scoring and Smooth Guide Movement
The SLS Secure Lock System provides precise scoring control, while radial double-row bearings deliver smooth, accurate carriage movement. Closed-section extruded aluminum guides with chromed steel bearing raceways increase rigidity and cutting accuracy while maintaining clear visibility of the scoring line.
Large-Format Tile Support and Repetitive Cuts
Floating aluminum tables and foldable extensions with a suspension system support large-format tile during scoring and breaking. The rotating square locks securely for angled and repetitive cuts, while the 12" lateral stop adjusts from 45° to 90°.
Built for Professional Transport and Daily Use
A steel frame, cast aluminum guide supports, forged aluminum breaker components, and a 7/8" aluminum handle rod provide durability for intensive use. Each cutter includes 5/16" and 3/4" PLUS scoring wheels, transport wheels with a handle, and a reinforced textile carrying bag.
Common Questions
Frequently Asked Questions
What types of tile can RUBI TZ Tile Cutters cut?
RUBI® TZ Tile Cutters are designed for intensive professional cutting of ceramic tile and are particularly suited for porcelain tile.
How thick of a tile can the RUBI TZ cut?
All listed TZ models are designed to cut tile from 1/8" to 13/16" thick.
How much breaking force does the RUBI TZ provide?
The high-performance MULTIPOINT breaker provides up to 3,307 lbs. of breaking force.
What is the cutting capacity of the RUBI TZ series?
Straight cutting capacity ranges from 33.5" on the TZ-850 to 71" on the TZ-1800. Diagonal capacity ranges from 24" × 24" to 47" × 47", depending on the model.
What scoring wheels are included with RUBI TZ Tile Cutters?
Each cutter includes 5/16" and 3/4" PLUS scoring wheels.
Does the RUBI TZ support repetitive and angled cuts?
Yes. The cutter includes a rotating square with a locking system and a 12" lateral stop that can be positioned from 45° to 90° for repetitive and angled cuts.
Are RUBI TZ Tile Cutters designed for large-format tile?
Yes. Floating aluminum tables and foldable table extensions with a suspension system provide additional support for large-format ceramic and porcelain tile.
Does the RUBI TZ include a carrying case?
Each cutter includes rubber transport wheels with a handle and a reinforced textile transport bag.
