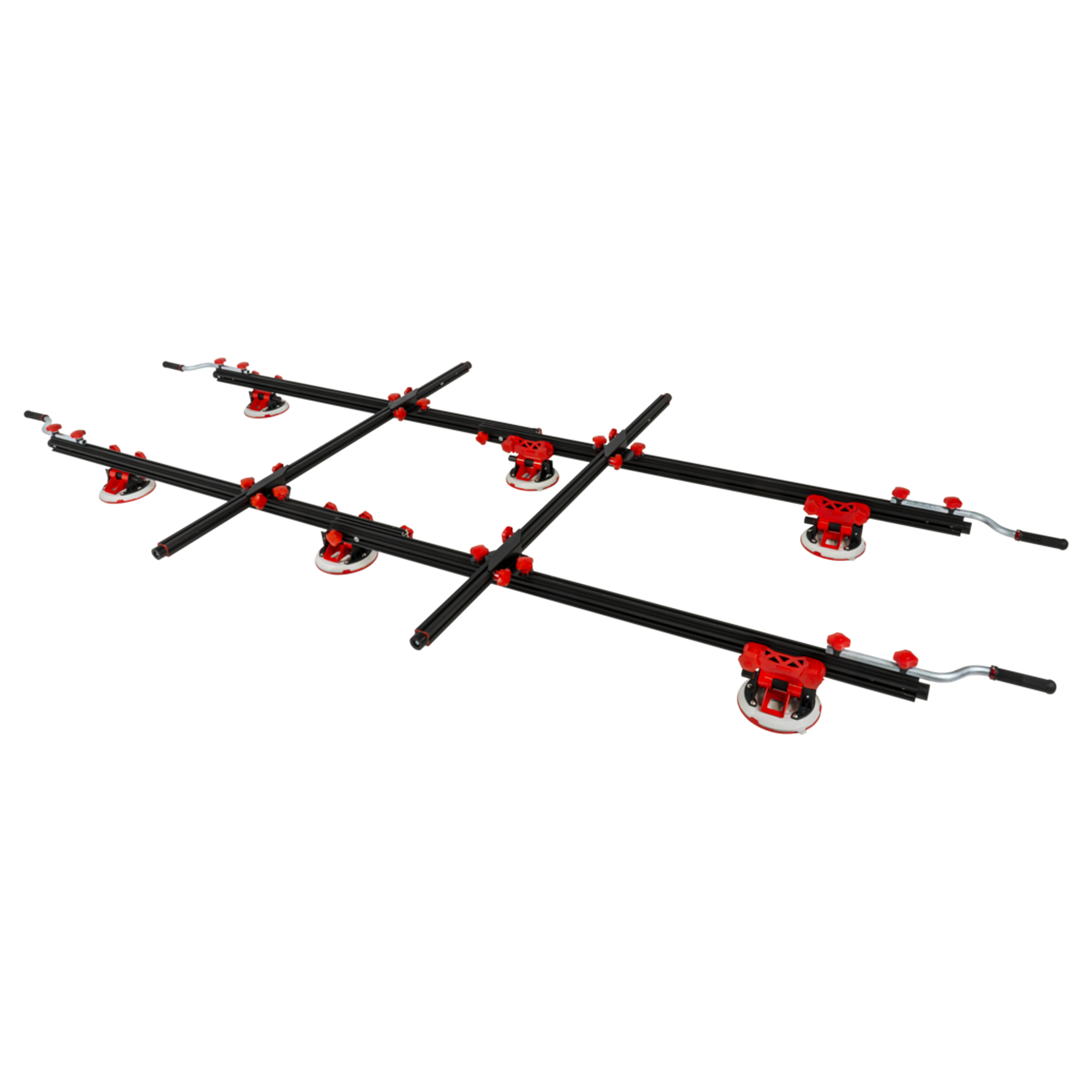

RUBI SLAB TRANS HD N Large Format Tile Transport System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Maximum Load Capacity
375 lbs.
Maximum Handling Size
141.75" × 63"
Recommended Thickness
1/8" to 15/32"
Suction Cups
6 Non-Marking Vacuum Cups
Handles
4 Retractable & Removable Soft-Grip Handles
Frame Material
Reinforced Aluminum
Assembled Dimensions
150" × 37" × 9.25"
Net Weight
78 lbs.
Why Choose This Product
Key Benefits
375 lb. Load Capacity
Supports large and heavy ceramic slabs during handling
Reinforced Frame
Aluminum profile and perpendicular guides increase structural rigidity
Non-Marking Suction
Six light-colored vacuum cups help prevent marks on tile surfaces
Flexible Handling
Four removable soft-grip handles adapt to different carrying positions
Large Format Capacity
Handles slabs up to 141.75" × 63"
Fast Setup
EASY FIX system simplifies assembly and disassembly
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
18982
UPC
8413797189827
Product Type
Large Format Tile & Slab Transport System
Maximum Load Capacity
375 lbs.
Maximum Handling Size
141.75" × 63"
Recommended Material Thickness
1/8" to 15/32"
Frame Material
Reinforced Aluminum
Perpendicular Guides
2
Guide Configuration
Can Be Used Independently
Suction Cups
6
Suction Cup Type
Light-Colored, Non-Marking Vacuum Cups
Handles
4 Retractable & Removable Soft-Grip Handles
Assembly System
EASY FIX
Finish
Black Anodized
Assembled Dimensions
150" × 37" × 9.25"
Net Weight
78 lbs.
About This Product
Handling System for Large Format Tile and Slabs
The RUBI® SLAB TRANS HEAVY DUTY N is a reinforced transport system for handling large format ceramic tile and slabs up to 141.75" × 63". It is especially suited for thicker pieces from 1/8" to 15/32" and supports loads up to 375 lbs.
Reinforced Frame for Increased Rigidity
The reinforced aluminum profile uses a slider connection system for greater structural strength. Two perpendicular aluminum guides increase stiffness during lifting, carrying, and positioning, and each guide can also be used independently.
Six Non-Marking Vacuum Suction Cups
Six light-colored vacuum suction cups provide secure contact with the slab while helping prevent marks on the tile surface. Four retractable and removable soft-grip handles provide multiple handling positions during transport and installation.
Easy Fix Assembly System
The EASY FIX system allows the frame to be assembled and disassembled quickly for setup, transport, and storage. When fully assembled and deployed, the system measures 150" × 37" × 9.25" and weighs 78 lbs.
Common Questions
Frequently Asked Questions
What size slabs can the RUBI SLAB TRANS HEAVY DUTY N handle?
The system can handle large format ceramic tile and slabs up to 141.75" × 63".
What is the maximum load capacity?
The SLAB TRANS HEAVY DUTY N has a maximum load capacity of 375 lbs.
What material thickness is this system designed to handle?
It is especially suited for thicker ceramic pieces from 1/8" to 15/32".
How many suction cups are included?
The system has six light-colored vacuum suction cups designed to provide secure handling without leaving marks on the tile surface.
Can the aluminum guides be used separately?
Yes. Each guide can be used independently when the full assembled transport system is not required.
What are the assembled dimensions?
When fully assembled and deployed, the system measures 150" × 37" × 9.25".
