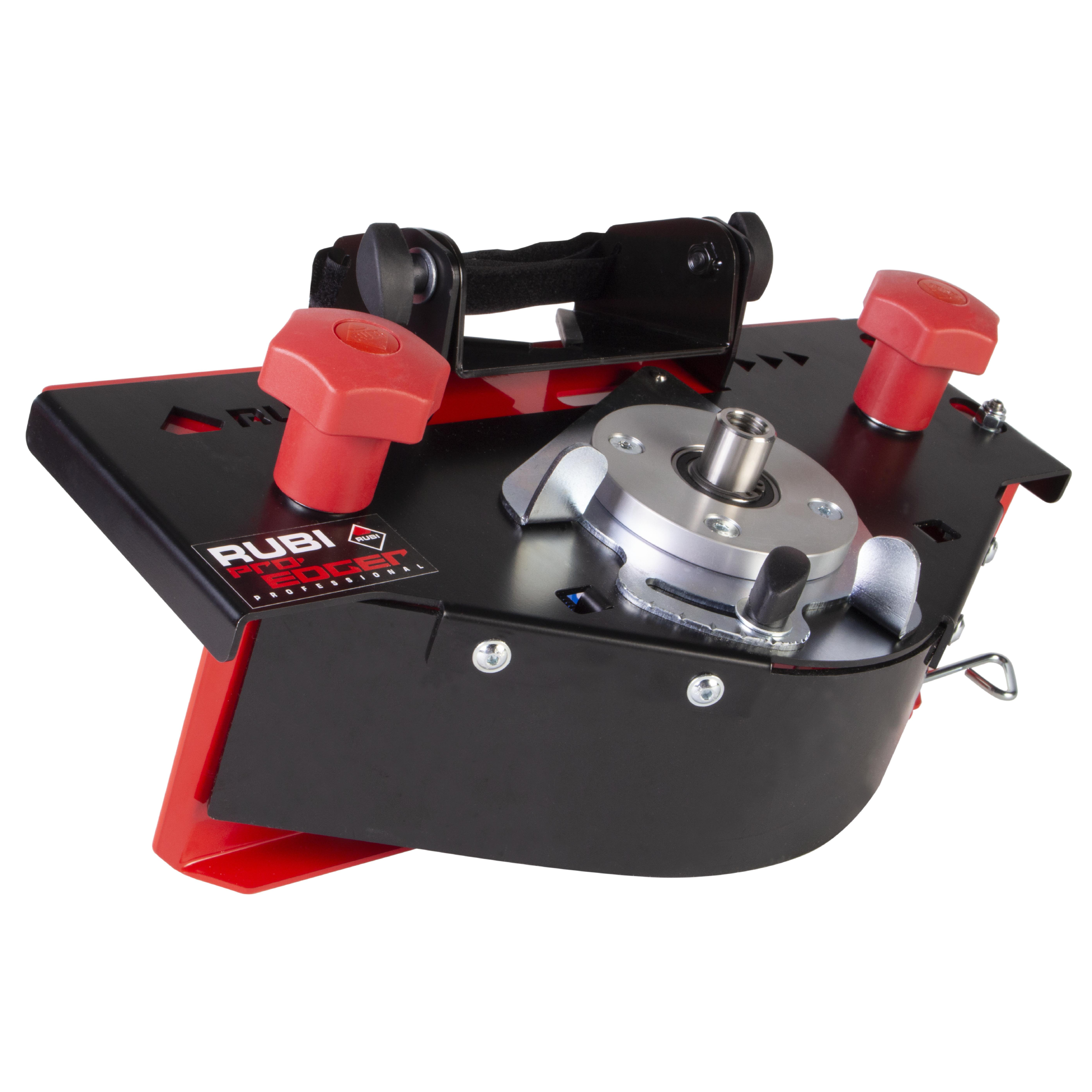

RUBI PRO-EDGER Beveling & Mitering Guide
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Miter Angle
45°
Maximum Miter Thickness
3/4"
Compatible Grinder Size
4-1/2" & 5"
Arbor
5/8"-11
Compatible Materials
Ceramic Tile, Natural Stone & Sintered Stone
Bevel Radius Options
3/16" & 3/8"
Dust Collection
Vacuum Compatible
Included Wheel
45° PRO-EDGER Diamond Wheel
Why Choose This Product
Key Benefits
Guided Edge Grinding
Improves control when beveling and mitering tile and stone
45° Mitering
Miters material up to 3/4" thick with the included wheel
Multiple Edge Profiles
Compatible wheels create 45° miters and rounded bevels
Broad Material Compatibility
Works with ceramic tile, natural stone and sintered stone
Smooth Guidance
Sealed bearings and wear-resistant pads support controlled movement
Dust Extraction
Connects to a vacuum to help control grinding dust
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
16901
UPC
8413797169010
Product Type
Beveling & Mitering Guide
Miter Angle
45°
Maximum Miter Thickness
3/4"
Bevel Radius Options
3/16" & 3/8"
Compatible Grinder Size
4-1/2" & 5"
Arbor
5/8"-11
Compatible Materials
Ceramic Tile, Natural Stone & Sintered Stone
Dust Collection
Vacuum Compatible
Included Wheel
45° PRO-EDGER Diamond Wheel
Dimensions
14" x 8" x 7"
Weight
9 lbs
About This Product
Professional Tile Beveling and Mitering
The RUBI® PRO-EDGER is a professional guide for beveling and mitering ceramic tile, natural stone, and sintered stone with a compatible angle grinder and RUBI PRO-EDGER diamond wheel. It provides guided movement along the material edge for greater control during intensive grinding applications.
45° Miters and Rounded Bevels
Compatible PRO-EDGER diamond wheels allow 45° miters on material up to 3/4" thick and rounded bevels with 3/16" or 3/8" radii, depending on the wheel selected. Progressive grinding at multiple depths is recommended for the best finish and wheel performance.
4-1/2" and 5" Angle Grinder Compatibility
The PRO-EDGER works with compatible 4-1/2" and 5" corded or cordless angle grinders and uses a 5/8"-11 arbor. Grinders with bodies no larger than 4" in diameter are recommended for proper attachment, and 850W or greater power is recommended for improved control during grinding.
Dust Collection and Smooth Edge Guidance
A sealed high-speed bearing system protects against grinding dust, while wear-resistant polyethylene pads support smooth movement along the workpiece edge. The PRO-EDGER is also compatible with vacuum dust extraction to help control airborne dust during grinding.
Common Questions
Frequently Asked Questions
What is the RUBI PRO-EDGER used for?
The RUBI PRO-EDGER guides an angle grinder for controlled beveling and 45° mitering of ceramic tile, natural stone, and sintered stone.
What size angle grinder works with the PRO-EDGER?
The PRO-EDGER is compatible with 4-1/2" and 5" angle grinders. A grinder body diameter of no more than 4" is recommended for proper attachment.
How thick of a tile can the PRO-EDGER miter?
The included 45° diamond wheel is designed for mitering material up to 3/4" thick.
Can the PRO-EDGER make rounded bevels?
Yes. With the appropriate RUBI PRO-EDGER diamond wheel, it can create rounded bevels with 3/16" or 3/8" radii.
What materials can be beveled or mitered?
The PRO-EDGER is designed for ceramic tile, natural stone, and sintered stone.
Does the RUBI PRO-EDGER include a diamond wheel?
Yes. It includes a RUBI PRO-EDGER 45° diamond wheel for mitering material up to 3/4" thick.
Can a vacuum be connected to the PRO-EDGER?
Yes. The PRO-EDGER can be connected to a vacuum for dust extraction during grinding.
