At a Glance
Why Choose This Product
Designed for transporting large-format porcelain slabs
Extends from 67" to 126" for different slab sizes
6.25" high-load vacuum suction cups stabilize slabs during transport
Multiple suction cup positions adapt the system to the slab
Each reinforced aluminum guide can be used independently
Optional crossbars increase maximum load capacity to 264.5 lbs.
Product Information

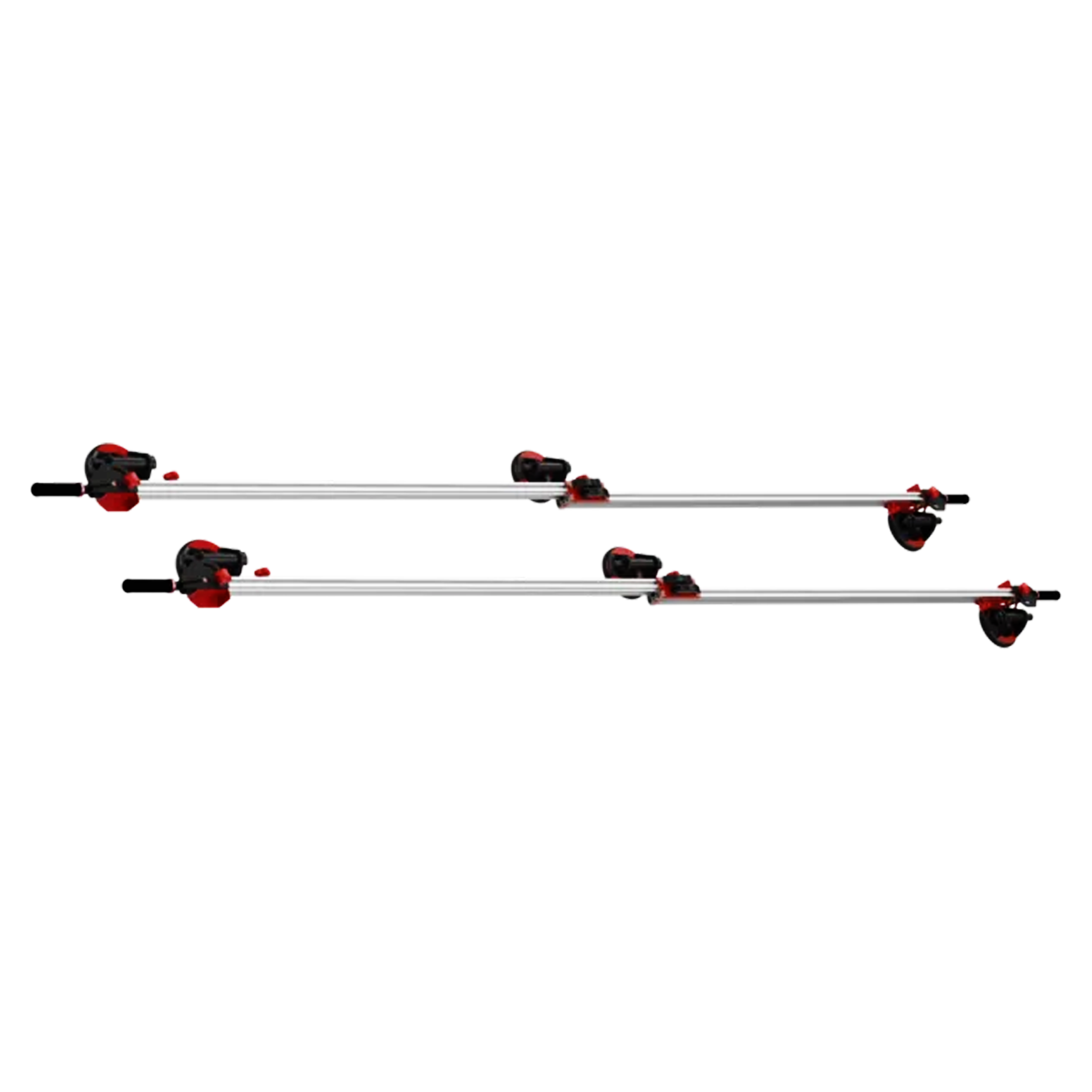

The RUBIĀ® ERGO TILE TRANS is a transport and handling system for large-format porcelain slabs up to 1/4" thick. The system supports loads up to 176 lbs. and uses two reinforced aluminum profiles that extend from 67" to 126" for handling different slab sizes.
The system features adjustable width, multiple suction cup positions, and rotating soft-grip handles for controlled handling. The recommended distance between handles is 27.5". Each guide can also be used individually when the application does not require the complete two-profile system.
High-load 6.25" vacuum suction cups provide secure gripping and stability during transport. The FAST FIX system supports quick setup and adjustment when positioning the profiles and suction cups for the slab being handled.
Optional perpendicular crossbars, part number 28907, increase system rigidity and improve handling stability. With the crossbars installed, maximum load capacity increases from 176 lbs. to 264.5 lbs. The crossbars are sold separately.
Common Questions
The ERGO TILE TRANS has a maximum load capacity of 176 lbs. When used with the optional 28907 crossbars, maximum capacity increases to 264.5 lbs.
The reinforced aluminum profiles retract and extend from 67" to 126" to accommodate different large-format slab sizes.
RUBI recommends the system for large-format porcelain slabs up to 1/4" thick.
The system uses high-load 6.25" diameter vacuum suction cups with multiple positioning adjustments for secure slab handling.
Yes. Each guide is suitable for individual use when the complete two-profile system is not required.
No. The 28907 perpendicular crossbars are sold separately. They increase system rigidity and raise the maximum load capacity to 264.5 lbs.
