Nuheat Cable Electric Floor Heating System
Nuheat Cable is a versatile, free-form floor heating system designed to deliver comfortable, efficient warmth to a variety of flooring types including tile, stone, laminate, engineered wood, and luxury vinyl. Ideal for kitchens, bathrooms, and custom spaces, this system allows contractors and installers to tailor heat coverage on-site for precise and reliable performance.
Key Features & Benefits

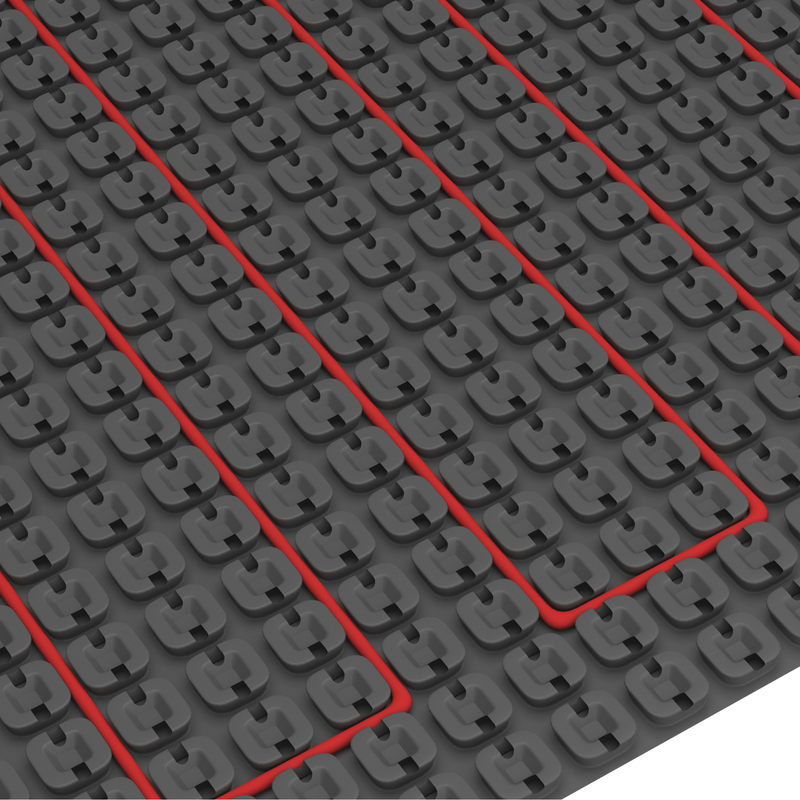

- Customizable Heat Coverage: Patented plastic cable guides let installers adjust spacing on-site, ensuring even warmth tailored to room dimensions.
- Wide Application: Suitable for multiple floor surfaces such as tile, stone, laminate, engineered wood, and luxury vinyl flooring.
- Flexible Sizing: Available in 33 sizes to cover areas from 8 ft² up to 240 ft², with the option to combine kits for larger spaces.
- Dual Voltage Options: Choose between 120 V and 240 V systems to fit a variety of electrical setups and power needs.
- Efficient Power Output: Offers 12 to 15 W/ft² based on cable spacing, optimizing energy use and heating performance.
- Durable Construction: Features a 2-wire grounded heating cable with a protective PVC jacket and a 10-foot cold lead for safe and reliable installation.
- Certified Safety: Holds “-W” wet rating approvals for Canada, meeting strict electrical and safety standards.

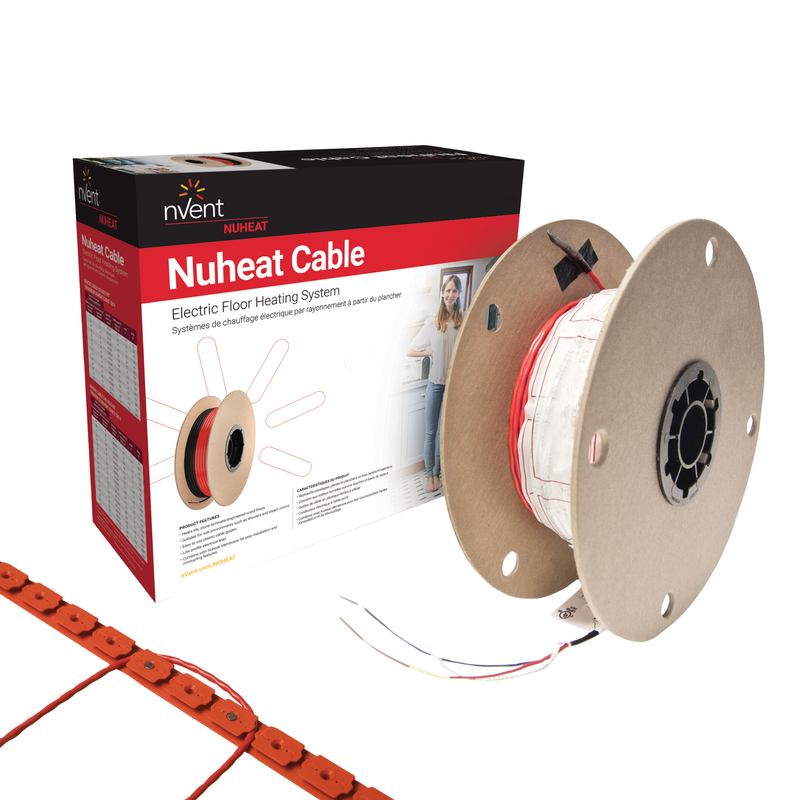

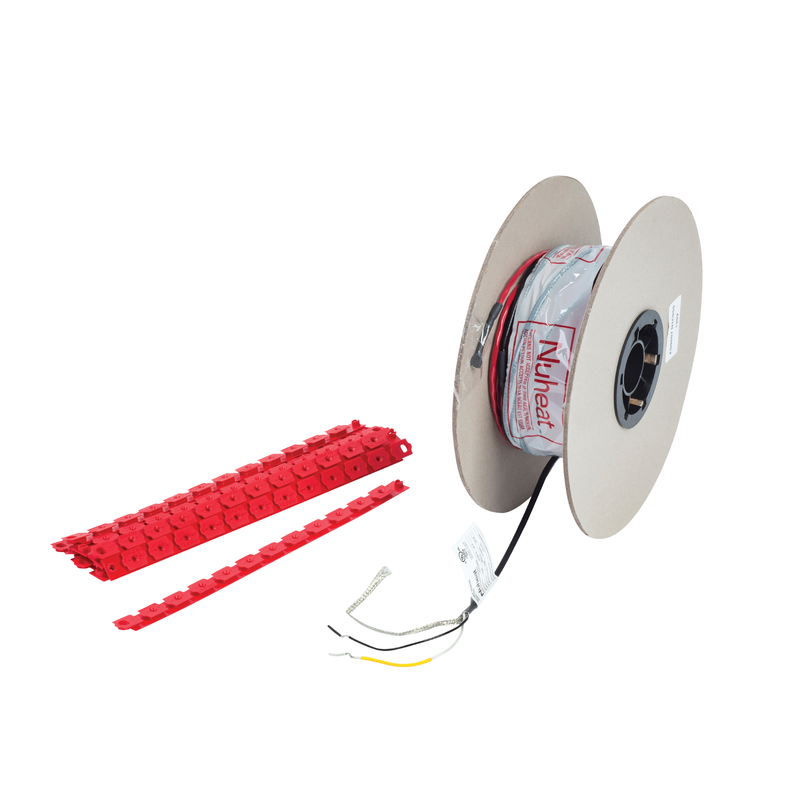

- Complete Kit: Includes the heating cable system and a detailed installation instruction manual for ease of use.
Specifications
| Specification | Details |
|---|---|
| Voltage | 120 V and 240 V options |
| Power Output | 12 to 15 W/ft² (based on cable spacing) |
| Minimum Bending Radius | 0.5 in |
| Maximum Ambient Temperature | 194°F (90°C) |
| Heating Cable Type | 2-wire grounded, twisted pair with PVC jacket |
| Cold Lead Length | 10 ft, 2-wire with ground braid, PVC jacket |
| Coverage Area | 8 ft² to 240 ft², multiple kits can be combined |
120V Cable Size Specifications
Click to View
| Model No. | 3" Spacing (sq ft) | Length (ft) | Amps | Watts |
|---|---|---|---|---|
| N1C008 | 8 | 29 | 0.7 | 80 |
| N1C012 | 12 | 47 | 1.2 | 138 |
| N1C015 | 15 | 57 | 1.4 | 170 |
| N1C025 | 25 | 98 | 2.5 | 299 |
| N1C030 | 30 | 120 | 2.9 | 343 |
| N1C040 | 40 | 148 | 3.7 | 442 |
| N1C050 | 50 | 188 | 4.7 | 562 |
| N1C060 | 60 | 234 | 6.0 | 719 |
| N1C070 | 70 | 265 | 6.8 | 810 |
| N1C080 | 80 | 318 | 7.9 | 947 |
| N1C085 | 85 | 334 | 8.5 | 1021 |
| N1C095 | 95 | 377 | 9.7 | 1161 |
| N1C110 | 110 | 423 | 10.8 | 1299 |
| N1C120 | 120 | 474 | 12.2 | 1461 |
240V Cable Size Specifications
Click to View
| Model No. | 3" Spacing (sq ft) | Length (ft) | Amps | Watts |
|---|---|---|---|---|
| N2C015 | 15 | 56 | 0.7 | 165 |
| N2C020 | 20 | 80 | 0.9 | 224 |
| N2C025 | 25 | 102 | 1.3 | 302 |
| N2C035 | 35 | 136 | 1.7 | 403 |
| N2C045 | 45 | 178 | 2.2 | 523 |
| N2C055 | 55 | 207 | 2.6 | 632 |
| N2C065 | 65 | 250 | 3.1 | 742 |
| N2C070 | 70 | 277 | 3.5 | 842 |
| N2C085 | 85 | 334 | 4.3 | 1020 |
| N2C090 | 90 | 358 | 4.6 | 1102 |
| N2C100 | 100 | 393 | 5.0 | 1211 |
| N2C120 | 120 | 472 | 5.9 | 1427 |
| N2C135 | 135 | 529 | 6.8 | 1621 |
| N2C145 | 145 | 561 | 7.1 | 1704 |
| N2C160 | 160 | 630 | 8.0 | 1914 |
| N2C170 | 170 | 665 | 8.6 | 2054 |
| N2C190 | 190 | 757 | 9.6 | 2314 |
| N2C215 | 215 | 849 | 10.8 | 2589 |
| N2C240 | 240 | 953 | 12.1 | 2905 |
Usage/Application Tip

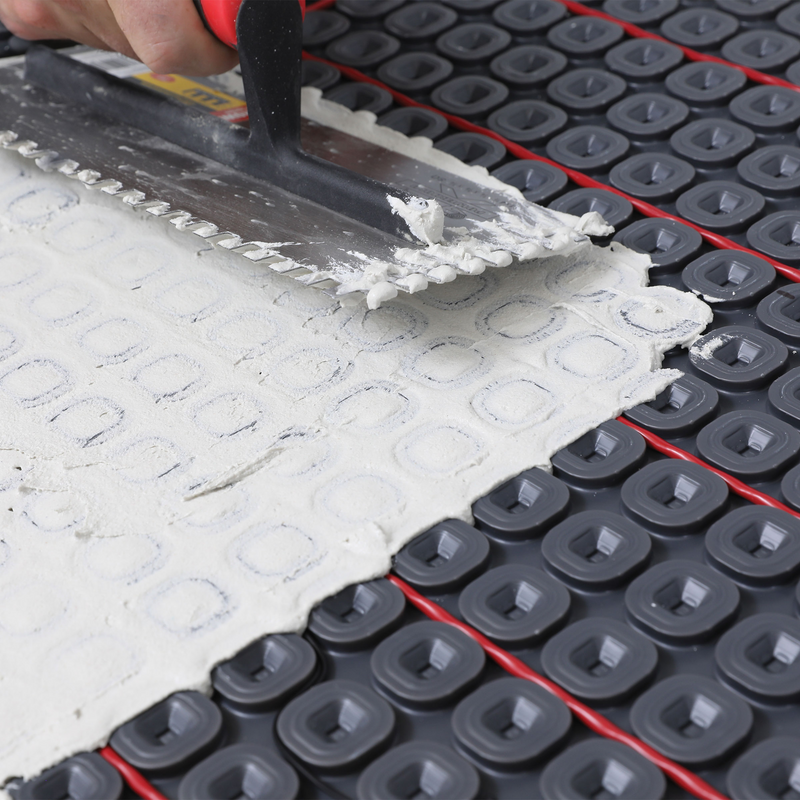

Perfect for areas requiring flexible installation, Nuheat Cable can be spaced on-site to fit custom room shapes and sizes, making it ideal for kitchens, bathrooms, and other living spaces that need efficient, comfortable floor heating.
Upgrade your flooring comfort with Nuheat Cable — a flexible, efficient heating solution designed to fit your space perfectly. Order now to experience reliable warmth tailored to your needs.
