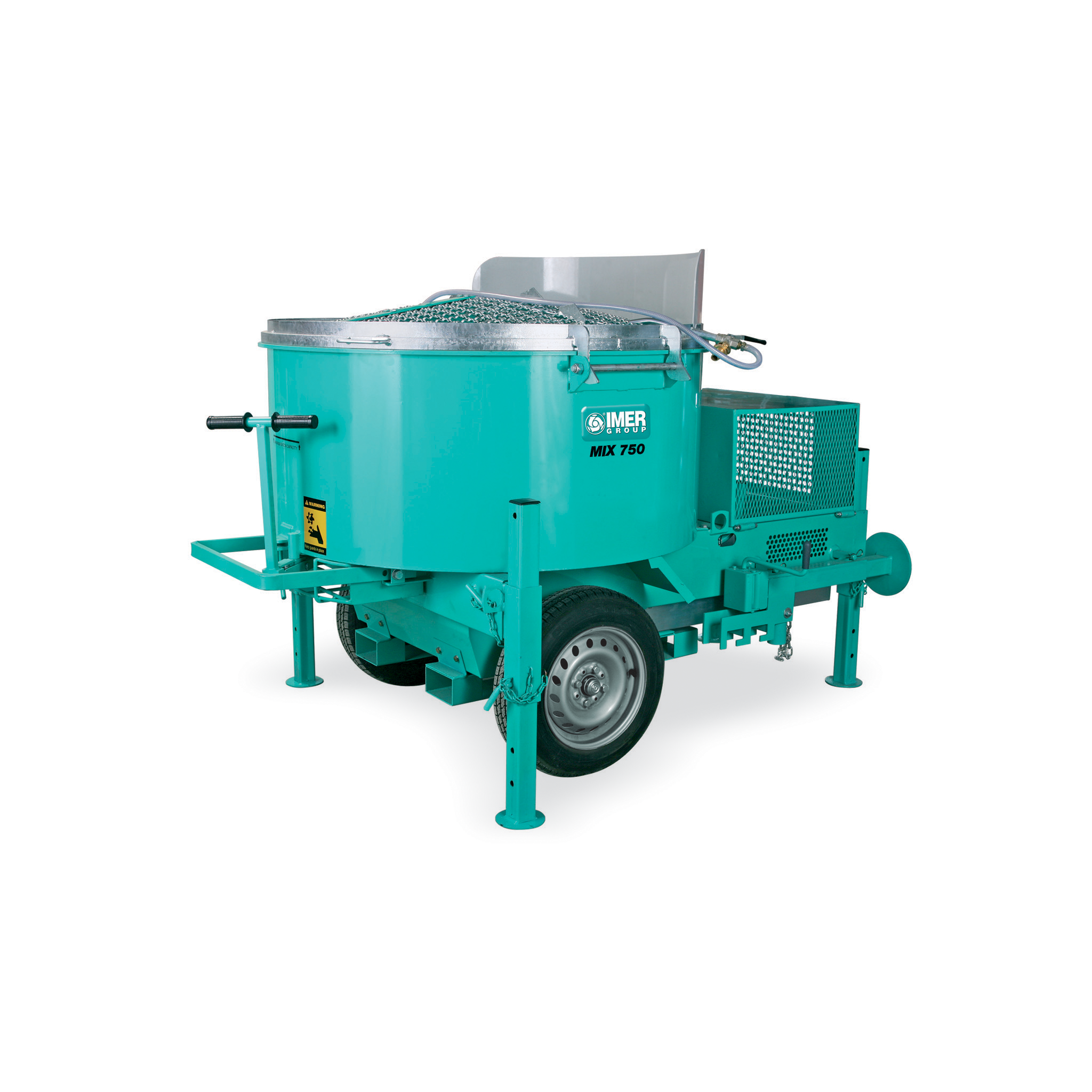

IMER Mix 750 Towable Vertical Shaft Mixer
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Power Source
No Motor
Drum Capacity
22 cu. ft.
Batch Output
18 cu. ft.
Maximum Aggregate Size
3/8"
Discharge Height
Adjustable 23"ā29"
Mixer Type
Vertical Shaft Towable Mixer
Applications
Refractory, Precast & Specialty Materials
Transport
Towable Chassis
Why Choose This Product
Key Benefits
18 cu. ft. Batch Output
Produces large batches for demanding construction projects
Vertical Shaft Mixing
Efficiently mixes stiff, dry, refractory, and specialty materials
Protected Discharge Assembly
Helps reduce damage from loading equipment
Adjustable Discharge Height
Accommodates various collection bins and containers
Towable Chassis
Easily transports between jobsites
Multiple Power Options
Available in electric, gasoline, and non-motorized configurations
Product Information
Product Details
Specifications
Brand
IMERĀ®
Part Number
1194640
UPC
8033679003333
Product Type
Towable Vertical Shaft Mixer
Power Configuration
No Motor
Drum Capacity
22 cu. ft.
Batch Output
18 cu. ft.
Mixing System
Vertical Shaft
Maximum Aggregate Size
3/8"
Discharge Height
Adjustable 23"ā29"
Protected Discharge Assembly
Yes
Safety Grate
Hinged with Auto-Shutdown Protection
Towable Chassis
Yes
Suspension
Torsion Bar
Drum Diameter
52"
Wheel Size
22"
Overall Length
90"
Overall Width
63"
Overall Height
62"
Weight
1,588 lbs
Applications
Stiff, Dry, Refractory & Specialty Construction Materials
Best For
Precast Concrete, Highway Construction, Refractory Mixing & High-Volume Material Production
About This Product
High-Output Vertical Shaft Mixing Performance
The IMERĀ® Mix 750 Towable Mixer is a heavy-duty vertical shaft mixer engineered for producing up to 18 cubic feet of material per batch. Its high-torque mixing system efficiently blends stiff, dry, refractory, and specialty construction materials that are difficult to mix with conventional drum mixers.
Built for Demanding Construction Applications
Designed for precast concrete production, refractory work, highway construction, and specialty material processing, the Mix 750 features a protected discharge assembly, hinged safety grate with automatic shutdown protection, and an adjustable discharge height for loading into a variety of containers and material handling equipment.
Towable Design with Multiple Power Options
The integrated towable chassis and torsion bar suspension allow the mixer to be transported between jobsites while maintaining jobsite stability during operation. Available configurations include electric, gasoline-powered, and non-motorized models to accommodate different jobsite power requirements.
Designed for Consistent Material Production
A 22 cubic foot drum capacity, 18 cubic foot batch output, and vertical shaft mixing action provide consistent mixing performance while maintaining material quality. The heavy-duty design supports continuous production for contractors handling demanding concrete, refractory, and specialty construction applications.
Common Questions
Frequently Asked Questions
What materials is the IMER Mix 750 designed to mix?
The Mix 750 is designed for stiff, dry, refractory, and specialty construction materials used in precast, highway, and general construction applications.
What is the drum capacity and batch output?
The mixer has a 22 cubic foot drum capacity and produces up to 18 cubic feet of mixed material per batch.
What is the maximum aggregate size?
The Mix 750 is designed to handle aggregate up to 3/8 inch in size.
Is the discharge height adjustable?
Yes. The discharge height adjusts from approximately 23 inches to 29 inches to accommodate different containers and material handling equipment.
What safety features are included?
The mixer includes a hinged safety grate with automatic shutdown protection and a protected discharge assembly to help reduce damage during loading operations.
Is the Mix 750 towable?
Yes. The mixer is built on a towable chassis with torsion bar suspension for transporting between jobsites.
What power configurations are available?
The Mix 750 is available as a non-motorized unit, multiple electric motor configurations, and a 13 HP Honda gasoline engine with electric start.
What types of projects is the Mix 750 best suited for?
It is well suited for precast concrete production, refractory work, highway construction, specialty material mixing, and other high-volume construction applications.
