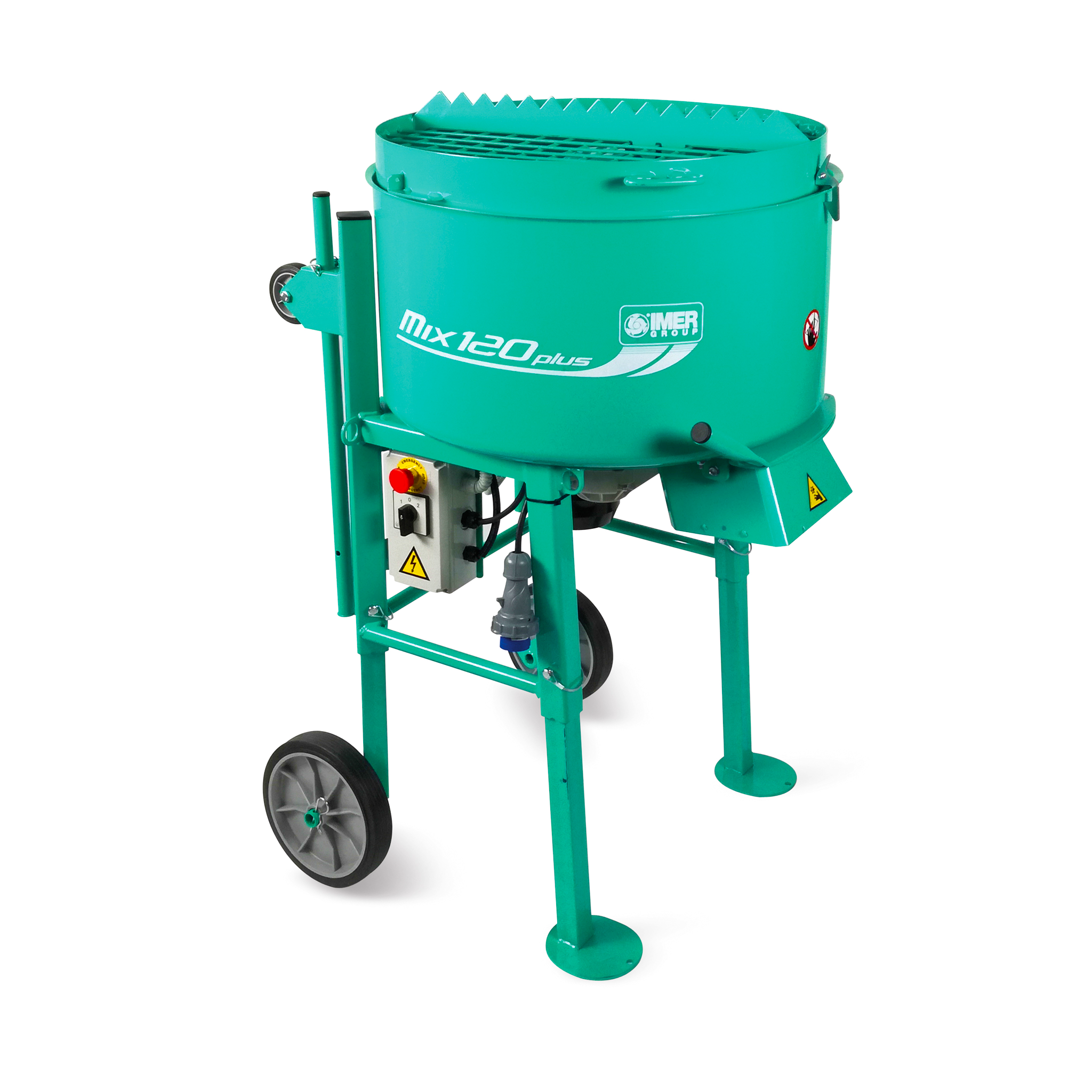

IMER Mix 120 PLUS Vertical Shaft Mixer
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Batch Output
3 cu ft
Drum Capacity
4.25 cu ft
Motor
120V / 2 HP
Paddle Speed
38 RPM
Maximum Aggregate
3/8"
Grate Type
Open Grate
Weight
286 lbs
Applications
Mortar, Grout, Stucco & Dry Pack Cement
Why Choose This Product
Key Benefits
Vertical Shaft Mixing
Produces consistent mixing for cement-based materials
3 cu ft Batch Output
Mixes large batches for improved productivity
120V Operation
Runs on standard jobsite power
Rubber Paddles
Replaceable paddles provide thorough material blending
Aggregate Capacity
Handles materials with aggregate up to 3/8"
Grate Options
Available with iDust or open grate configurations
Product Information
Product Details
Specifications
Brand
IMERĀ®
Part Number
1194304
Product Type
Vertical Shaft Mixer
Grate Type
Open Grate
Batch Output
3 cu ft
Drum Capacity
4.25 cu ft
Drum Diameter
30 in
Motor Rating
120V / 2 HP
Current Draw
15 A
Paddle Speed
38 RPM
Maximum Aggregate Size
3/8 in
Mixing System
Vertical Shaft with Replaceable Rubber Paddles
Compatible Materials
Mortar, Grout, Stucco & Dry Pack Cement
Power Source
Electric
Noise Level
70 dB(A)
Weight
286 lbs
Dimensions
30 in Ć 33 in Ć 50 in
Applications
Tile Installation, Masonry & Concrete Repair
About This Product
Vertical Shaft Mixing for Cement-Based Materials
The IMERĀ® Mix 120 PLUS Vertical Shaft Mixer is engineered for mixing mortar, grout, stucco, and dry pack cement. Its vertical shaft mixing action provides thorough material blending while producing up to 3 cubic feet of material per batch, making it well suited for tile installation, masonry, and concrete repair applications.
Jobsite-Ready Performance
Powered by a 120V, 2 HP electric motor, the Mix 120 PLUS operates from standard jobsite power while delivering a paddle speed of 38 RPM. The 4.25 cubic foot drum accommodates materials containing aggregate up to 3/8", allowing the mixer to handle a wide range of cement-based products.
Rubber Paddle Mixing System
The mixer utilizes replaceable rubber paddles that thoroughly blend material while helping reduce wear on the drum. The vertical shaft design promotes consistent mixing performance across mortar, grout, stucco, and dry pack cement applications.
Available Grate Configurations
The Mix 120 PLUS is available with either an iDust grate or an open grate configuration to suit different jobsite preferences. Both models share the same mixing capacity, motor, drum size, and overall performance while allowing users to select the grate style that best fits their workflow.
Common Questions
Frequently Asked Questions
What materials can the IMER Mix 120 PLUS mix?
The Mix 120 PLUS is designed for mixing mortar, grout, stucco, and dry pack cement.
How much material does the mixer produce per batch?
The mixer produces up to 3 cubic feet of mixed material per batch.
What power does the Mix 120 PLUS require?
It operates on standard 120V power using a 2 HP electric motor.
What is the difference between the two Mix 120 PLUS models?
The models differ only by grate configuration. Model 1194302 includes an iDust grate, while model 1194304 includes an open grate. All other specifications remain the same.
What is the maximum aggregate size the mixer can handle?
The Mix 120 PLUS is designed for materials containing aggregate up to 3/8 inch.
Does the mixer use replaceable paddles?
Yes. The vertical shaft mixing system includes replaceable rubber paddles.
What is the drum capacity?
The mixer features a 4.25 cubic foot drum with a 3 cubic foot batch output.
Is the Mix 120 PLUS suitable for professional tile and masonry work?
Yes. It is designed for professional mixing of mortar, grout, stucco, and dry pack cement used in tile installation and masonry applications.
