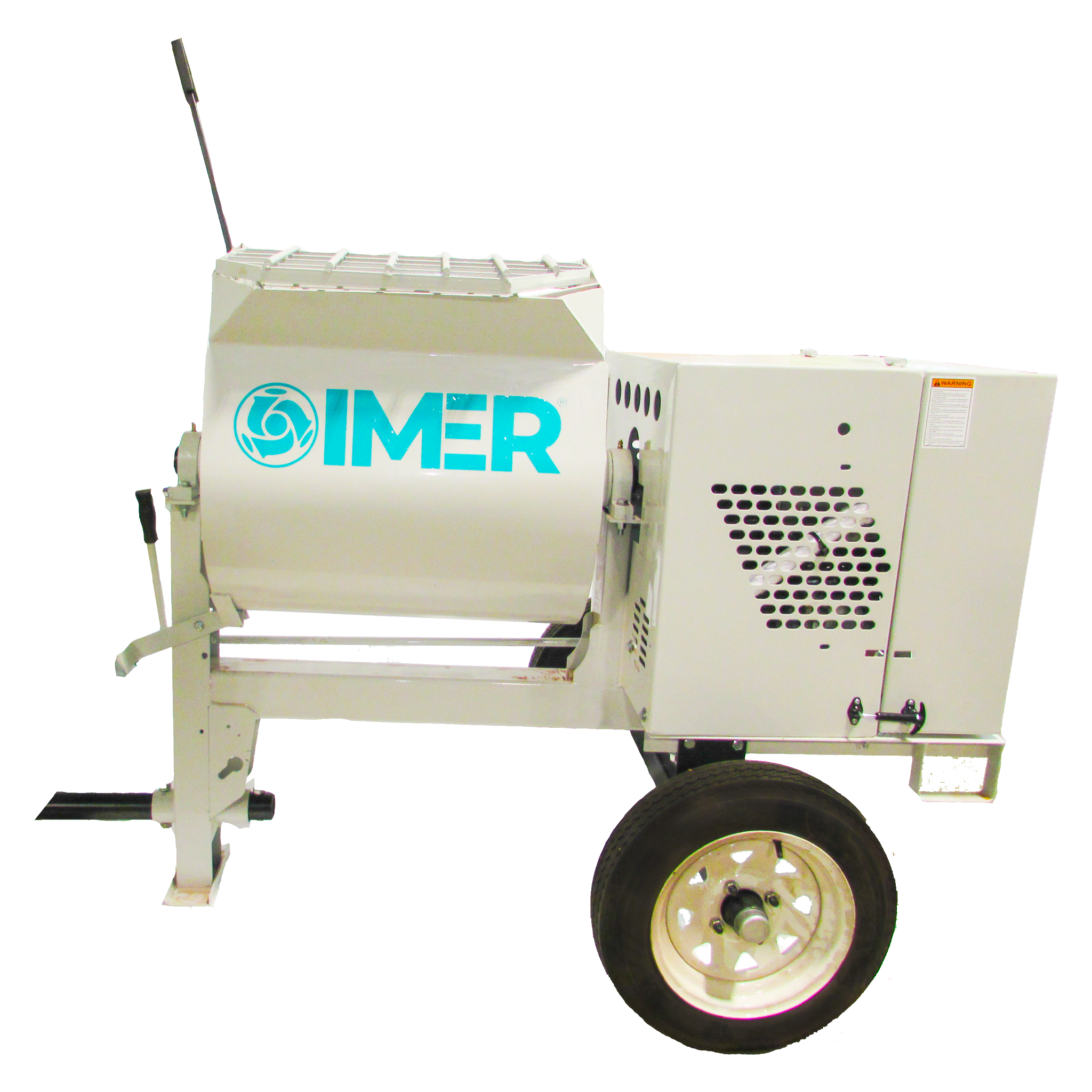

IMER HSM 6 Towable Mortar Mixer
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Power Source
120V / 240V 1.5 HP Electric Motor
Batch Capacity
6 cu ft
Bag Capacity
2ā2.5 Bags
Hitch Type
2" Ball
Drum Material
Steel
Towable
Yes
Charging Height
57.5 in
Application
Mortar, Stucco & Grout
Why Choose This Product
Key Benefits
6 Cubic Foot Output
Produces up to 6 cu ft of mixed material per batch
Gear-Driven Mixing
Transfers power directly to the paddles for consistent material blending
Gas or Electric Power
Available with Honda GX-160 gas or 120V/240V electric drive
Towable Design
Easily transported between jobsites using ball or pintle hitch options
Steel or Poly Drum
Choose between durable steel or optional poly drum configurations
Professional Capacity
Handles 2ā2.5 bag mortar, stucco, and grout batches
Product Information
Product Details
Specifications
Brand
IMERĀ®
Part Number
1130062
Product Type
Towable Mortar Mixer
Power Source
120V / 240V 1.5 HP Electric Motor
Drum Material
Steel
Hitch Type
2" Ball
Batch Output
6 cu ft
Bag Capacity
2ā2.5 Bags
Mixing System
Gear-Driven Paddle
Applications
Mortar, Stucco & Grout
Towable
Yes
Charging Height
57.5 in
Tire Size
5.3 Ć 12 in
Width
45 in
Length
75 in
Length with Tow Bar
94.5 in
Height
55 in
Weight
500 lbs
About This Product
6 Cubic Foot Mortar Mixing Capacity
The IMERĀ® HSM 6 Towable Mortar Mixer is designed for mixing mortar, stucco, and grout with batch outputs up to 6 cubic feet. Its gear-driven paddle mixing system transfers power directly to the mixing paddles for consistent material blending while handling typical 2 to 2.5 bag batches used in masonry and construction applications.
Gas and Electric Power Options
Available with either a 5.5 HP Honda GX-160 gasoline engine or a 120V/240V 1.5 HP electric motor, the HSM 6 can be configured to match jobsite power requirements. Steel and poly drum options allow contractors to choose the mixer configuration best suited for durability, maintenance, and material handling preferences.
Towable Design for Jobsite Mobility
The towable frame allows the mixer to be transported between work areas using either a 2" ball hitch or pintle hitch configuration depending on the selected model. A charging height of 57.5 inches and a compact footprint help simplify loading while maintaining a substantial 6 cubic foot batch capacity.
Built for Masonry and Construction Applications
Designed for professional masonry contractors, the HSM 6 is well suited for mixing mortar, stucco, grout, and similar materials on residential, commercial, and industrial jobsites. Its gear-driven transmission, multiple power options, and available poly drum upgrade provide the flexibility required for a wide range of mixing applications.
Common Questions
Frequently Asked Questions
What materials is the IMER HSM 6 Towable Mortar Mixer designed to mix?
The HSM 6 is designed for mixing mortar, stucco, grout, and similar masonry materials in professional construction applications.
What is the batch capacity of the HSM 6 mixer?
The mixer produces up to 6 cubic feet of material per batch and accommodates approximately 2 to 2.5 bags per mix.
What power options are available?
The HSM 6 is available with either a 5.5 HP Honda GX-160 gasoline engine or a 120V/240V, 1.5 HP electric motor.
What drum options are available?
The mixer can be configured with either a steel drum or an optional poly drum depending on the selected model.
What hitch configurations are available?
Depending on the model selected, the HSM 6 is available with either a 2" ball hitch or a pintle hitch for towing between jobsites.
How does the gear-driven transmission improve mixing?
The gear-driven transmission transfers power directly to the mixing paddles, providing consistent paddle speed and reliable mixing performance for mortar, stucco, and grout.
Is the IMER HSM 6 designed for transport between jobsites?
Yes. The HSM 6 features a towable frame that allows it to be transported between jobsites using the selected hitch configuration.
What are the overall dimensions of the HSM 6 Towable Mortar Mixer?
The mixer measures 75" long (94.5" with the tow bar), 45" wide, 55" high, weighs approximately 500 lbs, and has a charging height of 57.5".
