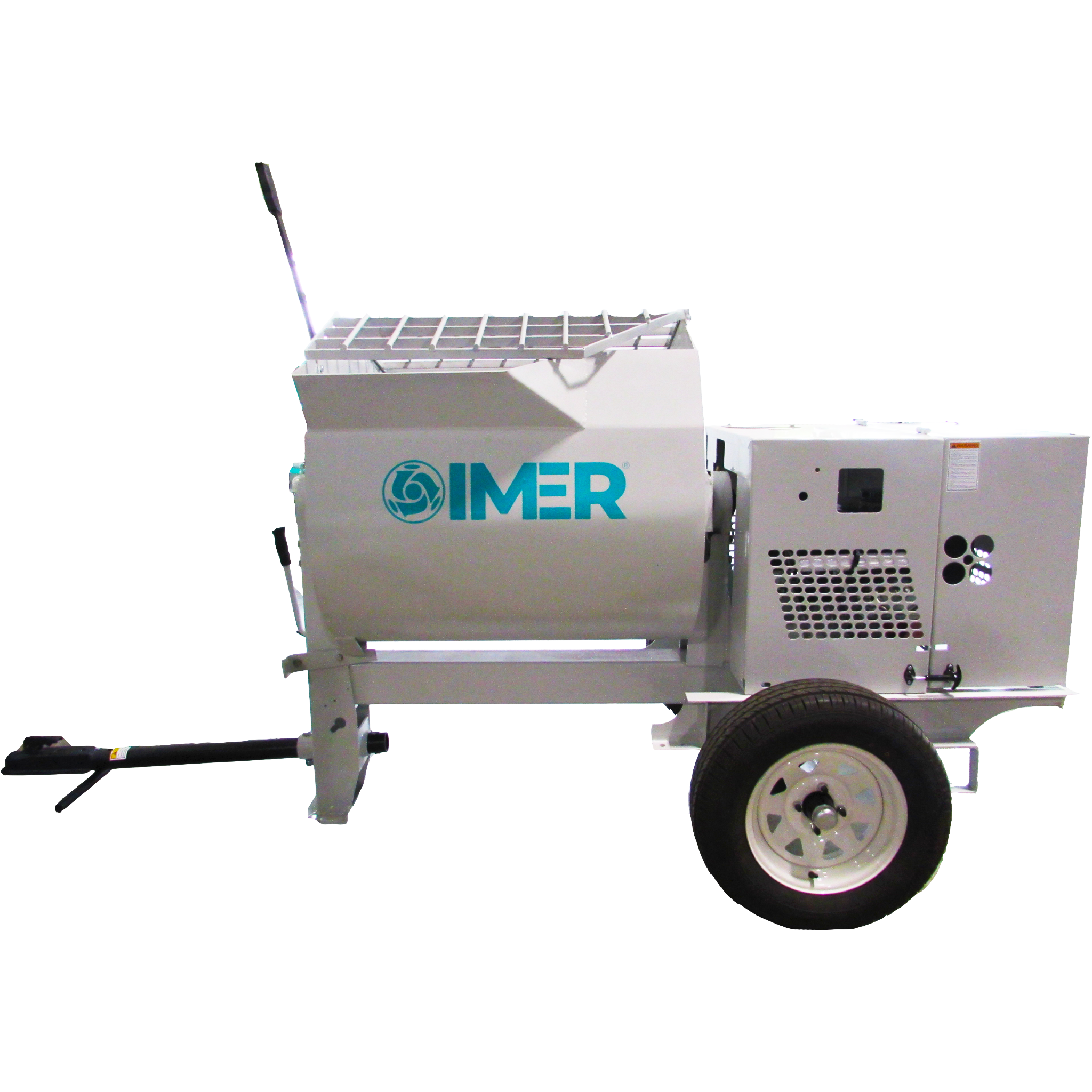

IMER HSM 12 Towable Mortar Mixer
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Power Source
240V / 5 HP Electric Motor
Batch Output
12 cu ft
Bag Capacity
3.5-4 Bags
Hitch Type
2" Ball Hitch
Mixing System
Gearbox-Driven Paddles
Application
Mortar, Stucco & Grout
Frame
Towable
Charging Height
58 in
Why Choose This Product
Key Benefits
Large Batch Capacity
Produces up to 12 cu ft of mixed material
Gearbox Drive
Transfers power directly to the mixing paddles
Power Options
Available with gas or electric drive systems
Towable Frame
Easily transported between jobsites
Heavy-Duty Construction
Built for demanding masonry applications
Professional Performance
Ideal for high-volume mortar, stucco and grout mixing
Product Information
Product Details
Specifications
Brand
IMERĀ®
Part Number
1130122
Product Type
Towable Mortar Mixer
Power Source
240V / 5 HP Electric Motor
Hitch Type
2" Ball Hitch
Batch Output
12 cu ft
Bag Capacity
3.5-4 Bags
Mixing System
Gearbox-Driven Paddle System
Applications
Mortar, Stucco & Grout
Frame
Towable
Drum Construction
Steel
Charging Height
58 in
Tire Size
B78-13
Width
52.5 in
Length
84 in
Length with Tow Bar
104.5 in
Height
56.5 in
Weight
1,200 lbs
About This Product
High-Capacity Mixing for Mortar, Stucco and Grout
The IMERĀ® HSM 12 Towable Mortar Mixer is built for contractors who need high-volume mixing of mortar, stucco, and grout on demanding jobsites. With a 3.5 to 4 bag capacity and up to 12 cubic feet of batch output, it efficiently produces consistent mixes for masonry and plastering applications.
Gearbox-Driven Paddle Mixing System
The HSM 12 uses a gearbox-driven paddle system that transfers power directly to the mixing paddles for thorough material blending. This design delivers consistent mixing performance while handling large batches of mortar and grout throughout the workday.
Gas and Electric Power Options
Choose between a reliable 13 HP Honda GX-390 gasoline engine or a powerful 240V 5 HP electric motor to match your jobsite requirements. Both configurations provide the same heavy-duty mixing capacity while offering flexibility for locations with or without available electrical service.
Towable Design for Jobsite Mobility
A heavy-duty towable frame allows the mixer to move easily between work areas and jobsites. Available with either a 2" ball hitch or pintle hitch, the HSM 12 is designed for convenient transportation while maintaining the durability needed for professional masonry contractors.
Common Questions
Frequently Asked Questions
What materials can the IMER HSM 12 mix?
The HSM 12 is designed for mixing mortar, stucco, and grout in high-volume construction applications.
What is the batch capacity of the HSM 12?
The mixer produces up to 12 cubic feet of mixed material and accommodates approximately 3.5 to 4 bags per batch.
What power options are available?
The HSM 12 is available with either a 13 HP Honda GX-390 gasoline engine or a 240V 5 HP electric motor.
What hitch options are available?
Customers can choose either a 2" ball hitch or a pintle hitch depending on their towing requirements.
How does the gearbox-driven paddle system improve mixing?
The gearbox transfers power directly to the mixing paddles, providing consistent blending of mortar, stucco, and grout throughout the batch.
Is the mixer towable?
Yes. The HSM 12 features a heavy-duty towable frame for transporting the mixer between jobsites.
How much does the IMER HSM 12 weigh?
The mixer weighs approximately 1,200 pounds.
What are the dimensions of the mixer?
The HSM 12 measures 84" long, 104.5" with the tow bar, 52.5" wide, and 56.5" high.
