At a Glance
Why Choose This Product
100% XPS foam core resists water absorption
Modified cement coating accepts direct tile installation
Fiberglass mesh improves durability and stability
Drain frame adjusts to finished tile thickness
Drain allows up to 1/2" movement for plumbing alignment
Includes drain components, mesh tape and installation accessories
Product Information

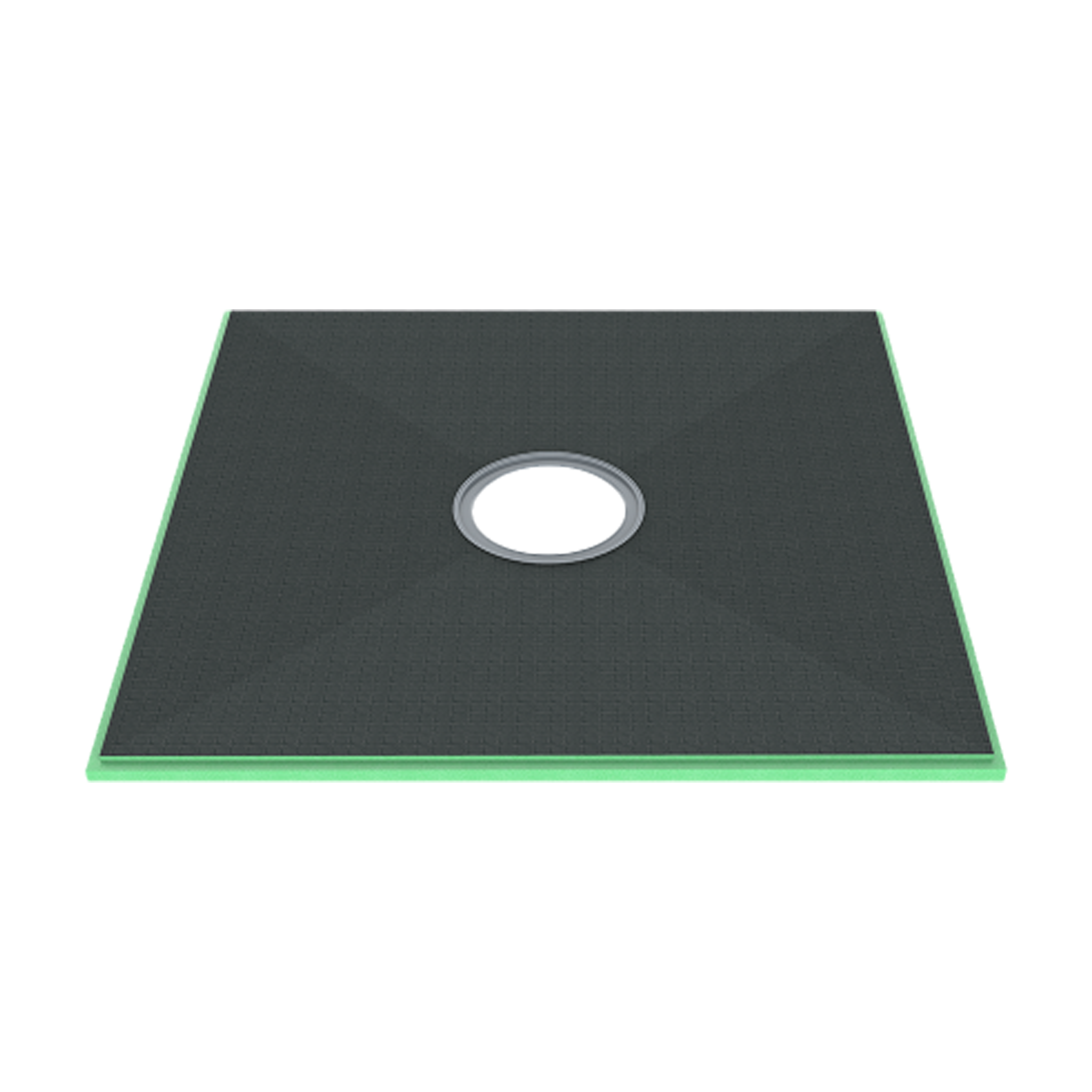

The HYDRO-BLOK® Low Profile Shower Pan is a waterproof, tile-ready shower base designed for new shower installations and tub-to-shower conversions. Its lightweight XPS foam core is reinforced with fiberglass mesh and finished with a modified cement coating, creating a durable surface ready for direct tile installation without additional waterproofing.
The cement-coated surface accepts ceramic, porcelain, natural stone, glass, and mosaic tile, providing flexibility for a wide range of residential and commercial shower designs. Factory-built slope directs water toward the center drain while maintaining a low-profile installation.
The included drain assembly features a grout-over drain frame that adjusts to the finished tile thickness and allows up to 1/2" movement from center to simplify plumbing alignment. Every shower pan also includes drain components, mesh tape, and installation accessories needed for installation.
Constructed with a 100% waterproof XPS foam core, fiberglass mesh reinforcement, and a modified cement coating, HYDRO-BLOK Low Profile Shower Pans provide a lightweight, durable foundation for tiled showers while eliminating the need for traditional mortar shower pans.
Common Questions
Yes. The modified cement-coated surface is tile-ready and accepts ceramic, porcelain, natural stone, glass, and mosaic tile.
The pan features a 100% waterproof XPS foam core reinforced with fiberglass mesh and finished with a modified cement coating.
Yes. The drain assembly allows up to 1/2" movement from center to simplify plumbing alignment and the drain frame adjusts to the finished tile thickness.
Each shower pan includes drain components, mesh tape, and installation accessories.
Yes. It is designed for both new shower installations and tub-to-shower conversions.
The tile-ready surface is compatible with ceramic, porcelain, natural stone, glass, and mosaic tile.
The shower pan itself features a waterproof XPS foam core. Follow HYDRO-BLOK installation instructions to properly waterproof seams and connections during installation.
All listed Low Profile Shower Pan sizes feature a center drain configuration.
