Why Choose This Product
Supplies the primary pan, wall, curb, drain, sealing, and fastening components in one package.
Compatible HYDRO-BLOK Shower System components work together to protect the shower base, walls, seams, and plumbing penetrations.
Provides the required shower-floor slope without forming a traditional mortar bed.
Modified cement coatings accept ceramic, porcelain, natural stone, glass, and mosaic finishes.
Foam-core panels, pan, and curb simplify carrying, cutting, and positioning during construction.
Choose a 48" × 48" or 48" × 60" configuration to suit square or rectangular shower layouts.
Product Information
The HYDRO-BLOK Classic Shower Kit combines a pre-sloped center drain pan, waterproof wall panels, a mini curb, brass drain components, seals, joint sealant, fasteners, and installation accessories in one coordinated package. Designed for tiled shower construction, it reduces the need to source the primary waterproofing components separately.
The pan, wall panels, and curb use waterproof XPS foam cores reinforced with fiberglass mesh and coated with modified cement surfaces. HYDRO-BLOK Joint Sealant connects seams and transitions, while the included pipe and mixing valve seals address common plumbing penetrations. When properly installed, the components form a continuous tile-ready shower substrate.
The factory-formed slope directs water toward the center drain without requiring a traditional sloped mortar bed. Lightweight foam components are easier to carry, cut, and position during construction, helping installers prepare the shower for tile with fewer heavy materials and fewer individually sourced system components.
The modified cement surfaces accept ceramic, porcelain, natural stone, glass, and mosaic finishes using an appropriate thin-set mortar. Available 48" × 48" and 48" × 60" configurations provide square and rectangular options for different shower footprints while retaining the same coordinated waterproofing approach.
Common Questions

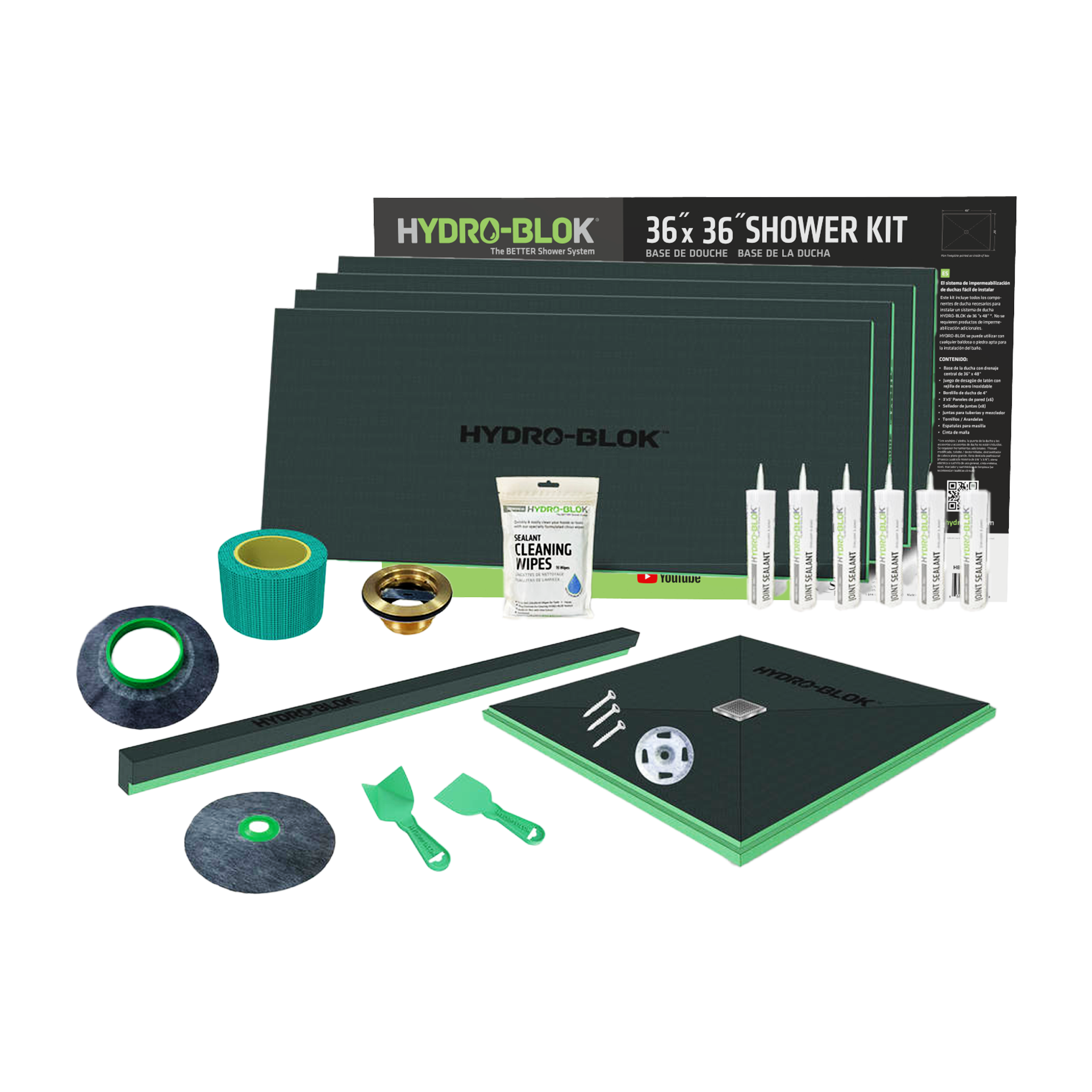

Each kit includes a pre-sloped Classic center drain pan, waterproof wall panels, a mini curb, a solid brass drain kit with stainless steel grate, joint sealant, pipe and mixing valve seals, screws and washers, mesh tape, putty knives, and sealant cleaning wipes. Component quantities vary by selected kit size.
The available kits use 48" × 48" and 48" × 60" Classic center drain pans. Wall-panel and accessory quantities vary by configuration, so choose the footprint that matches the framed shower and confirm the center drain location and required wall coverage before ordering.
Yes. The slope is formed into the Classic shower pan and directs water toward the center drain. This removes the need to construct a traditional sloped mortar bed, but the pan and drain must still be installed on a properly prepared substrate according to HYDRO-BLOK instructions.
The modified cement surfaces accept ceramic, porcelain, natural stone, glass, and mosaic finishes installed with an appropriate thin-set mortar. For tile measuring 2" × 2" or smaller, HYDRO-BLOK recommends a higher-compression grout, such as epoxy or urethane, to provide additional support.
The pan, panels, and curb contain waterproof XPS foam cores with reinforced, tile-ready cement surfaces. HYDRO-BLOK Joint Sealant seals seams and transitions, while the included pipe and mixing valve seals address plumbing penetrations. All connections must be completed according to manufacturer instructions.
The kit includes a solid brass drain assembly made for the Classic center drain pan, along with a stainless steel drain grate. It also includes a mini curb measuring 2" high by 2.5" deep, providing a lower-profile threshold than the standard HYDRO-BLOK shower curb.
The kit can support a tub-to-shower conversion when the selected 48" × 48" or 48" × 60" footprint and center drain configuration fit the planned layout. Check the framed opening, subfloor condition, plumbing position, wall coverage, and local installation requirements before ordering.
Tile or stone, thin-set mortar, grout, shower doors, plumbing fixtures, and general installation tools are not included. The package supplies the primary HYDRO-BLOK waterproofing components and listed accessories for creating the tile-ready substrate, while finish materials and project-specific items must be purchased separately.
