Adjustable Tile Hole Locator for Layout & Drilling

$16.95 - $16.95
$16.95
$16.95 - $16.95
$16.95
BIHUI  |  MPN: DBG6  |  UPC: 6970431879237
Free Shipping Eligible
Availability:
10 in stock!

Multi-Functional Adjustable Tile Hole Locator Specifications

  • Material: 1/10" alloy
  • Measurement Units: Inches and centimeters
  • Guide Sizes: 1 in, 1-1/2 in, 1-3/4 in
  • Arm Design: Six-sided foldable arms with 360° locking knobs
  • Compatible Materials: Tile, glass, marble, granite, and hard surfaces
  • Application: Measuring, layout alignment, and hole positioning

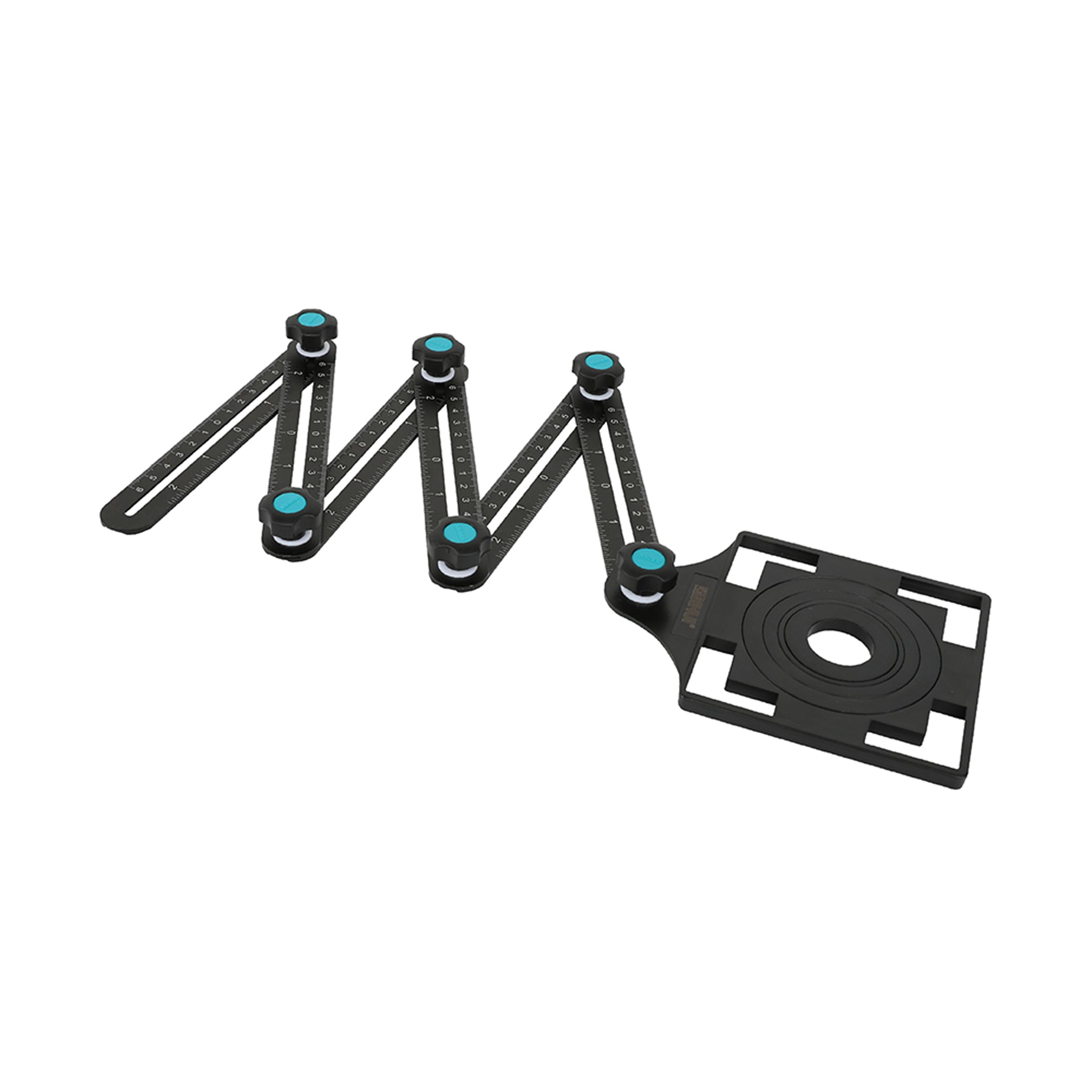

The BIHUI® Multi-Functional Adjustable Tile Hole Locator is a measuring and drilling guide designed for accurate hole positioning on tile and other hard surfaces. Its adjustable foldable arm design allows precise alignment around reference points for consistent layout, marking, and drilling accuracy.

Key Features
  • Adjustable Foldable Arms: Supports precise layout across multiple hole positions and reference points.
  • Laser-Calibrated Scale: Provides accurate measurements in both inches and centimeters.
  • 360° Locking Knobs: Secure arm positioning for repeatable layout and drilling alignment.
  • Integrated Drill Guides: Includes common hole sizes for consistent drilling locations.
  • Rigid Alloy Construction: Maintains stability during measuring and drilling setup.
  • Multi-Surface Compatibility: Suitable for tile, glass, marble, granite, and other hard surfaces.
Best For
  • Accurate hole layout for plumbing and fixture installations
  • Tile, glass, marble, and granite drilling
  • Repeatable hole positioning and alignment
  • Measuring and marking multiple hole locations
  • Professional tile and stone installation

Why Professionals Choose Tile This

  • Free shipping on eligible orders $200+
  • Same-day shipping before 2 PM CST (Mon–Sat) for in-stock items
  • Eligible for our Contractor Pricing Program
  • Authorized BIHUI Dealer
BIHUI Multi-Functional Adjustable Tile Hole Locator $16.95

Description

The BIHUI® Multi-Functional Adjustable Tile Hole Locator is designed to simplify hole layout and drilling alignment on tile and other hard surfaces. Its adjustable foldable arm system allows installers to accurately position and transfer measurements for plumbing fixtures, outlets, pipe penetrations, and other drilling applications.

Constructed from rigid alloy material, the locator features laser-calibrated markings in both inches and centimeters for accurate measurement reference. Six adjustable arms with 360° locking knobs provide flexible positioning, while integrated drill guides help maintain consistent hole placement across tile, glass, marble, granite, and other hard materials.

Specifications

Specification Details
Material 1/10" Alloy
Measurement Units Inches and Centimeters
Guide Sizes 1", 1-1/2", 1-3/4"
Arm Design Six-Sided Foldable Arms with Locking Knobs
Surface Compatibility Tile, Glass, Marble, Granite, and Hard Surfaces

Frequently Asked Questions

What surfaces can this hole locator be used on?
The BIHUI® Multi-Functional Adjustable Tile Hole Locator is designed for tile, glass, marble, granite, and other hard surfaces. Its locking arm system helps maintain accurate positioning during layout and drilling preparation.
What hole sizes do the drill guides support?
The BIHUI® Multi-Functional Adjustable Tile Hole Locator includes integrated drill guides sized at 1", 1-1/2", and 1-3/4" for common plumbing and fixture installation applications.
How do the locking arms improve accuracy?
The BIHUI® Multi-Functional Adjustable Tile Hole Locator uses six foldable arms with 360° locking knobs to hold measurements in place, helping maintain consistent alignment and repeatable hole positioning.
Does the locator use inches and centimeters?
Yes. The BIHUI® Multi-Functional Adjustable Tile Hole Locator features laser-calibrated markings in both inches and centimeters for convenient measuring and layout work.
