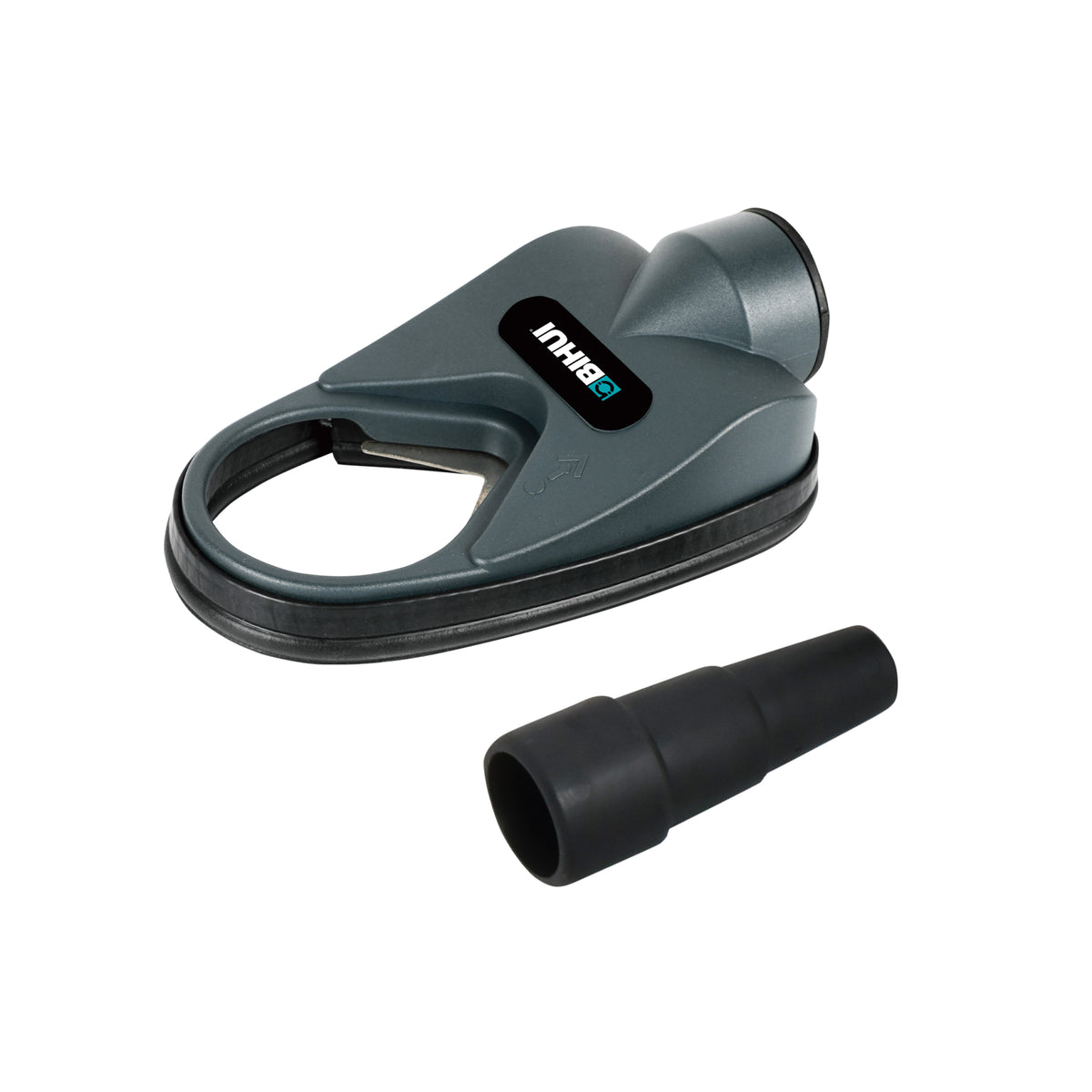

BIHUI Drilling Dust Extractor
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Primary Use
Drilling dust collection
Maximum Hole Size
2-5/6"
Vacuum Connection
1" to 1-3/8"
Working Positions
Walls and floors
Compatible Materials
Tile, concrete and brick
Dust Seal
Rubber base
Reinforcement
Steel V-frame
Part Number
TDBS
Why Choose This Product
Key Benefits
Dust Collection
Connects to a vacuum to collect debris while drilling.
Cleaner Work Area
The rubber sealing base helps limit fine dust leakage.
Guided Drilling
The integrated guide helps position the drill over the intended hole.
Flexible Vacuum Fit
Three-step rubber connector accommodates 1" to 1-3/8" connections.
Reinforced Construction
A steel V-frame provides additional strength around the drilling area.
Multiple Materials
Suitable for drilling tile, concrete, and brick.
Wall and Floor Use
Supports dust collection in horizontal and vertical drilling locations.
2-5/6" Capacity
Accommodates drilled holes up to 2-5/6" in diameter.
Product Information
Product Details
About This Product
BIHUI Dust Extractor for Drilling Walls and Floors
BIHUI Drilling Dust Extractor collects dust while guiding hole drilling through tile, concrete, and brick on walls or floors. Connected to a compatible vacuum, it helps contain drilling debris near the source for a cleaner working area and more controlled hole positioning.
Sealed Vacuum Connection for Fine Dust Control
A three-step rubber connector accommodates vacuum fittings from 1" to 1-3/8" in diameter. The rubber sealing base rests against the working surface and helps limit fine dust leakage as the connected vacuum draws debris away from the drilling area.
Reinforced Guidance for Holes Up to 2-5/6"
The integrated guide helps align the drill with the intended hole location, while a steel V-frame reinforces the extractor for added strength. The opening accommodates hole sizes up to 2-5/6", providing useful capacity for drilling tile, concrete, brick, and other compatible materials.
Specifications
Brand
BIHUI
Part Number
TDBS
UPC
6973702580078
Product Type
Drilling dust extractor and guide
Maximum Hole Size
2-5/6"
Vacuum Connection Range
1" to 1-3/8"
Vacuum Connector
Three-step rubber adapter
Working Positions
Walls and floors
Compatible Materials
Tile, concrete and brick
Sealing Base
Rubber
Frame
Steel V-frame
Primary Functions
Dust collection and drill guidance
Vacuum Required
Yes
Common Questions
Frequently Asked Questions
What materials can the BIHUI Drilling Dust Extractor be used on?
BIHUI identifies the extractor for drilling tile, concrete, and brick. The manufacturer also references other materials without providing a complete compatibility list. Confirm that the drill bit, drilling method, and connected vacuum are appropriate for the specific material before beginning work.
What is the maximum hole size supported by the extractor?
The extractor accommodates drilled holes up to 72 mm in diameter, approximately 2.83 inches. The selected drill or hole saw must fit within this capacity and remain compatible with the power tool and the tile, concrete, brick, or other approved material being drilled.
Which vacuum connections fit the BIHUI Dust Extractor?
The universal three-step rubber connector is designed for vacuum connections from 25 to 35 mm in diameter. Measure the vacuum hose or fitting before use, since BIHUI does not list compatibility with connections outside that range or identify additional adapters.
How does the rubber sealing base control drilling dust?
The rubber sealing base sits against the wall or floor and helps limit fine dust leakage while the connected vacuum draws debris away. BIHUI describes the seal as largely preventing leakage, not eliminating every dust particle under all working conditions.
How does the drilling guide work?
The extractor is designed to help guide the drill toward the intended hole location while collecting debris. A steel V-frame strengthens the unit around the drilling area, providing a reinforced guide structure for supported hole sizes up to 72 mm.
Can the dust collector be used on both walls and floors?
Yes. BIHUI designs the extractor for drilling on walls and floors. Its sealing base contacts the working surface while the vacuum connection removes debris, making the same unit suitable for horizontal and vertical drilling locations within its stated capacity.
Does the extractor eliminate all drilling dust?
No. The rubber sealing base is described as largely preventing fine dust leakage, which does not mean the system captures all dust. Collection performance also depends on maintaining a proper seal and using a compatible vacuum connection within the listed 25 to 35 mm range.
