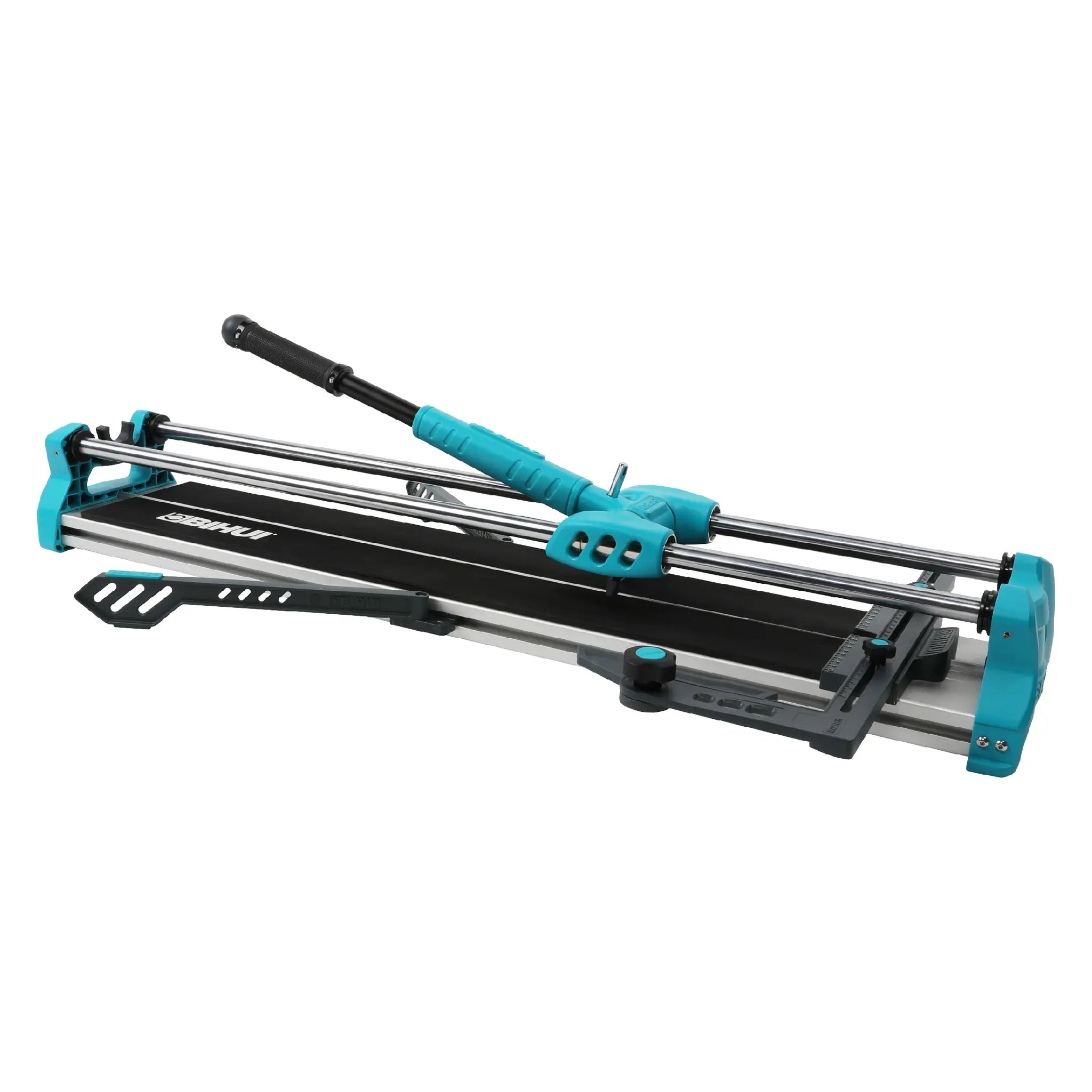

The BIHUI® C-Lion Manual Tile Cutter is a heavy-duty scoring and snapping cutter designed for accurate cutting of ceramic wall tile, polished tile, and glazed tile. Its rigid aluminum chassis and high breaking force support consistent results across a wide range of tile sizes and thicknesses.
The cutter combines a tungsten carbide scoring wheel, adjustable guides, and a magnetic breaking system to support controlled, single-handed operation during repetitive cutting tasks.
Key Features
- Tungsten Carbide Scoring Wheel: Features an etched scale to support scoring across different tile thicknesses.
- Double-Layer Aluminum Alloy Chassis: Provides strength and rigidity for stable cutting performance.
- Magnetic Breaking System: Fast-release breaking device delivers up to 1,750 lbs of breaking force for single-handed operation.
- Adjustable Measurement Guide and Side Ruler: Supports straight and angled cuts with repeatable accuracy.
- Anti-Slip Handle with Locking Function: Designed for controlled operation and compact storage.
- Integrated LED Light: Provides added visibility along the scoring line.
Specifications
| Model | Straight Cut | Diagonal Cut | Cutting Thickness |
|---|---|---|---|
| BT-TCB600 | 24" | 16.6" × 16.6" | 1/8" – 3/4" |
| BT-TCB800 | 31.5" | 22" × 22" | 1/8" – 3/4" |
| BT-TCB1000 | 40" | 27.5" × 27.5" | 1/8" – 3/4" |
| BT-TCB1200 | 47.25" | 33.5" × 33.5" | 1/8" – 3/4" |
The BIHUI® C-Lion Manual Tile Cutter delivers controlled scoring and high breaking force for repeatable straight and diagonal cuts across a wide range of ceramic tile formats.
