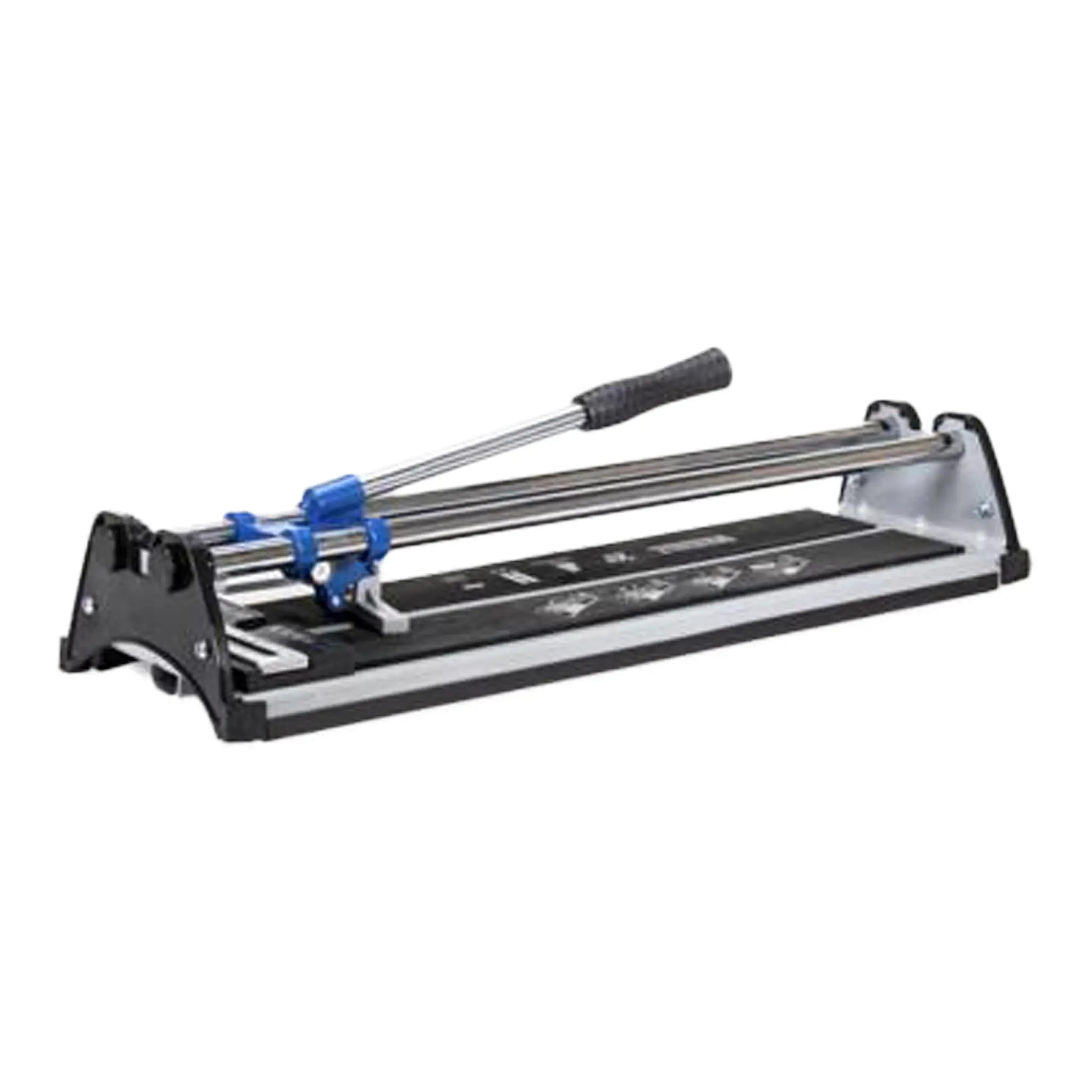

BARWALT 20" Manual Tile Cutter
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Maximum Cut Length
20" (508 mm)
Maximum Tile Thickness
1/2" (13 mm)
45° Cutting Capacity
14" × 14" (356 × 356 mm)
Compatible Tile
Ceramic, Glass & Mosaic
Cut Types
Straight & Angled
Rail System
Two-Rod
Measuring Guide
Adjustable
Scoring Wheel
5/8" Tungsten Carbide
Why Choose This Product
Key Benefits
Clean Manual Cutting
Cuts tile without the water, dust or noise of a wet saw
20" Cutting Capacity
Handles tile up to 20" long for common installation work
Diagonal Cutting
Cuts tile up to 14" × 14" at a 45° angle
Smooth Scoring
Two-rod rail system supports controlled scoring movement
Accurate Layout
Adjustable measuring guide helps produce precise, repeatable cuts
Durable Scoring
5/8" tungsten carbide wheel scores compatible tile surfaces
Product Information
Product Details
Specifications
Brand
BARWALT®
Part Number
TC20
UPC
035965331777
Product Type
Manual Tile Cutter
Maximum Cut Length
20" (508 mm)
Maximum Tile Thickness
1/2" (13 mm)
45° Cutting Capacity
14" × 14" (356 × 356 mm)
Compatible Tile
Ceramic, Glass & Mosaic
Cut Types
Straight & 45° Angled
Rail System
Two-Rod
Measuring Guide
Adjustable
Scoring Wheel Size
5/8"
Scoring Wheel Material
Tungsten Carbide
Operation
Manual
Water Required
No
About This Product
20" Manual Tile Cutter for Ceramic, Glass and Mosaic
The BARWALT® 20" Manual Tile Cutter provides clean straight and angled cuts for ceramic, glass, and mosaic tile without the water, dust, or noise associated with a wet saw. It handles tile up to 20" (508 mm) long and up to 1/2" (13 mm) thick for common tile installation and remodeling work.
Straight and 45° Tile Cutting Capacity
The cutter handles straight cuts on tile up to 20" long and diagonal cuts on tile up to 14" × 14" (356 × 356 mm) at a 45° angle. This cutting capacity supports both standard layouts and diagonal installations without requiring a powered tile saw.
Two-Rod Rail System and Adjustable Measuring Guide
A two-rod rail system provides smooth scoring movement across the tile, while the adjustable measuring guide helps maintain accurate, repeatable cuts. The manual cutting design also eliminates the setup and cleanup associated with water-cooled cutting equipment.
5/8" Tungsten Carbide Scoring Wheel
The cutter uses a durable 5/8" tungsten carbide scoring wheel to score compatible tile before snapping. Its combination of manual operation, measuring control, and compact 20" cutting capacity makes it suitable for professional installers and DIY tile projects.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What size tile can the BARWALT 20" Tile Cutter cut?
The cutter handles straight cuts on tile up to 20" (508 mm) long and up to 1/2" (13 mm) thick.
What tile materials can the BARWALT TC20 cut?
The cutter is designed for ceramic, glass, and mosaic tile.
Can the BARWALT 20" Tile Cutter make diagonal cuts?
Yes. It can cut tile up to 14" × 14" (356 × 356 mm) at a 45° angle.
Does this manual tile cutter require water or electricity?
No. The cutter operates manually and does not require water or powered cutting equipment, eliminating the water, dust, and noise associated with a traditional wet saw.
What type of scoring wheel does the BARWALT TC20 use?
The cutter uses a durable 5/8" tungsten carbide scoring wheel.
How does the BARWALT 20" Tile Cutter help with accurate cuts?
The cutter uses a two-rod rail system for smooth scoring movement and an adjustable measuring guide to help position tile for precise, repeatable cuts.
