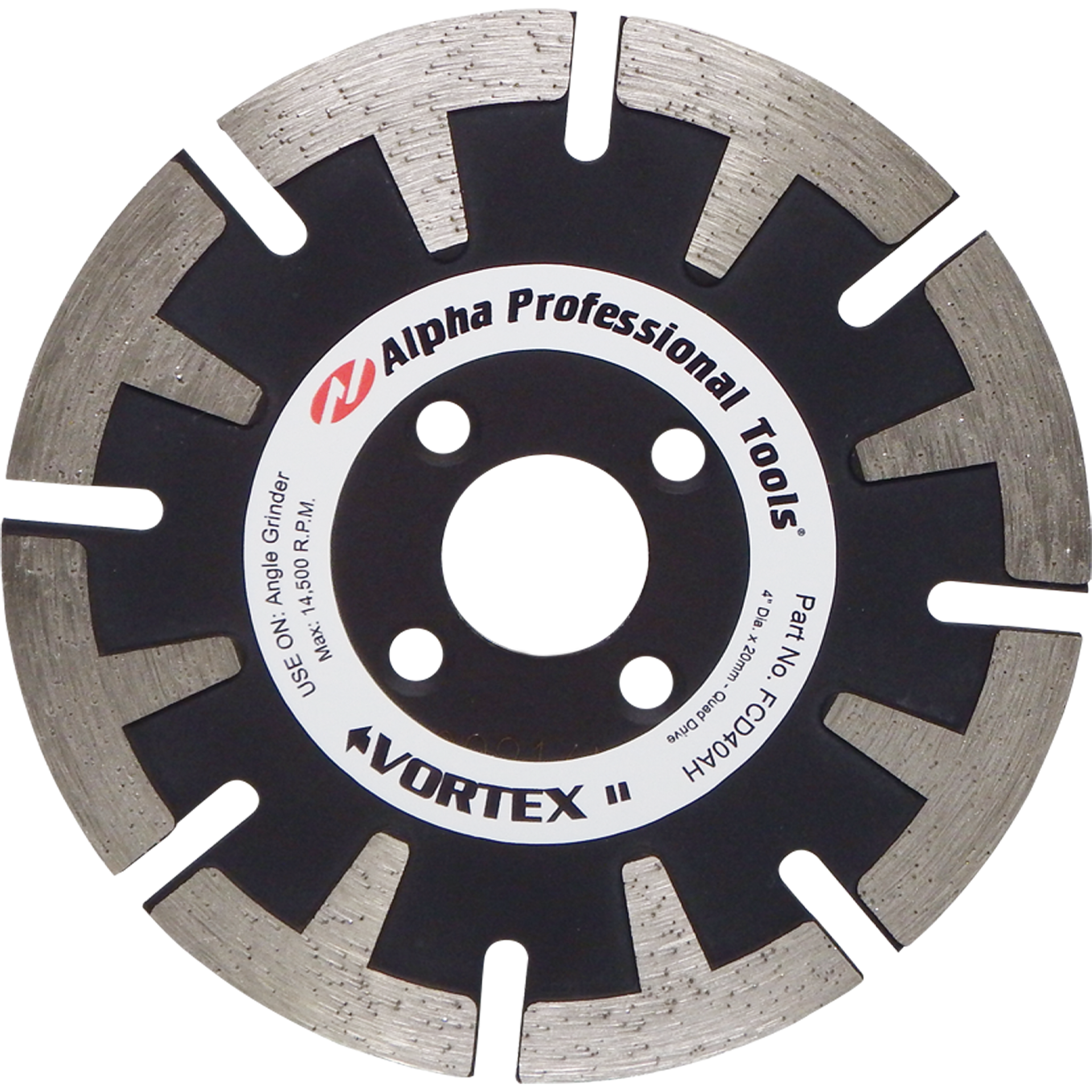

Alpha Vortex Diamond Blade for Granite (4" & 5")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Blade Diameter
4"
Blade Thickness
2.5mm
Maximum RPM
14,500
Arbor
20mm Quad Drive
Primary Materials
Granite & Engineered Stone
Cutting Application
Flush Cutting
Cutting Method
Wet or Dry
Side Protection
Dual Side Protection Segments
Why Choose This Product
Key Benefits
Flush Cutting
Specialized blade design supports flush cutting operations
Dual Side Protection
Reinforced segments improve blade strength and durability
Straight Cutting
Side protection segments help maintain a straight cut
Aggressive Performance
Cuts quickly and efficiently through demanding materials
Chip-Free Results
Designed for chip-free cutting on demanding applications
Wet or Dry Use
Supports either cutting method for fabrication flexibility
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
FCD40AH
UPC
749173470332
Product Type
Diamond Blade
Blade Series
Vortex
Blade Diameter
4"
Blade Thickness
2.5mm
Maximum RPM
14,500
Arbor
20mm Quad Drive
Primary Materials
Granite & Engineered Stone
Cutting Application
Flush Cutting
Cutting Method
Wet or Dry
Side Protection
Dual Side Protection Segments
Cutting Performance
Aggressive, Fast Cutting
Cut Quality
Chip-Free Cutting on Demanding Applications
Straight Cutting
Side Protection Segments Help Maintain Straight Cuts
Tool Compatibility
High-Speed Angle Grinder with Quad Drive
Quad Drive Required
Yes
About This Product
Flush Cutting Diamond Blade for Granite and Engineered Stone
The Alpha® Vortex is an aggressive diamond blade for cutting granite and engineered stone, with a design focused on flush cutting applications. Dual side protection segments reinforce both sides of the blade while supporting straight, controlled cuts and chip-free cutting on demanding stone fabrication work.
Dual Side Protection for Strength and Cutting Control
Protection segments on both sides of the blade increase strength and durability while helping the blade track straight through the material. The reinforced design gives stone fabricators a blade suited for fast, efficient cutting where flush access and cut quality are important.
Wet or Dry Cutting with High-Speed Angle Grinders
The Vortex can be operated wet or dry and is available in 4" and 5" diameters. Both sizes use a 20mm Quad Drive arbor and require Quad Drive compatibility for use with a high-speed angle grinder. The 4" blade is rated up to 14,500 RPM, while the 5" blade is rated up to 12,200 RPM.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What materials can the Alpha Vortex blade cut?
The Vortex is designed for cutting granite and engineered stone, including demanding stone fabrication applications.
Can the Alpha Vortex be used for flush cutting?
Yes. The blade is specifically designed for flush cutting, with dual side protection segments that reinforce the blade and help it cut straight.
Can the Vortex diamond blade be used wet or dry?
Yes. Both the 4" and 5" Vortex blades can be used for wet or dry cutting.
What arbor does the Alpha Vortex use?
Both blade sizes use a 20mm Quad Drive arbor and require Quad Drive compatibility when used with a high-speed angle grinder.
What is the maximum RPM for the 4" Vortex blade?
The 4" FCD40AH blade has a maximum operating speed of 14,500 RPM.
What is the maximum RPM for the 5" Vortex blade?
The 5" FCD50AH blade has a maximum operating speed of 12,200 RPM.
What do the side protection segments do?
The dual side protection segments reinforce the blade for added strength and durability while helping maintain straight cuts during fabrication.
