Alpha Spike Diamond Coating Removal Disc
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Disc Size
4-1/2"
Grit
50
Maximum RPM
13,200
Arbor
5/8"-11
Primary Use
Thick Coating Removal
Removes
Epoxy, Urethane, Glue & Adhesives
Surface Protection
Removes Coatings Without Damaging Concrete
Anti-Clogging Design
Open-Mesh Diamond Layout
Why Choose This Product
Key Benefits
Fast Coating Removal
Diamond clusters remove thick coatings without requiring aggressive concrete grinding
Reduced Surface Damage
Removes coatings while preserving the underlying concrete surface
Reduced Clogging
Open-mesh diamond layout allows removed material to clear the disc
Lower Heat Build-Up
Open construction reduces heat that can burn metal surfaces
Long Cutting Performance
Multiple diamond grits in each bead maintain sharp cutting capability
Reduced Noise & Vibration
Rubber-cushioned lightweight body improves operation
Multiple Surface Compatibility
Works on concrete, steel, wood, GFRP and CFRP
Dust Control Compatibility
Works with Alpha Ecoguard G for a virtually dust-free solution
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
VCS455H
UPC
749173670299
Product Type
Diamond Coating Removal Disc
Disc Size
4-1/2"
Grit
50
Maximum RPM
13,200
Arbor
5/8"-11
Recommended For
Coating Removal
Coating Compatibility
Epoxy, Urethane, Glue & Adhesives
Surface Compatibility
Concrete, Steel, Wood, GFRP & CFRP
Diamond Technology
Vacuum-Brazed Multi-Layer Diamond Clusters
Diamond Layout
Open Mesh
Body Construction
Sandwiched Rubber-Cushioned Lightweight Body
Surface Protection
Removes Coatings Without Damaging Concrete
Clogging Control
Open-Mesh Layout Reduces Clogging
Heat Control
Open-Mesh Layout Reduces Heat Build-Up
Noise & Vibration Control
Rubber-Cushioned Body
Dust Control Compatibility
Alpha Ecoguard G
About This Product

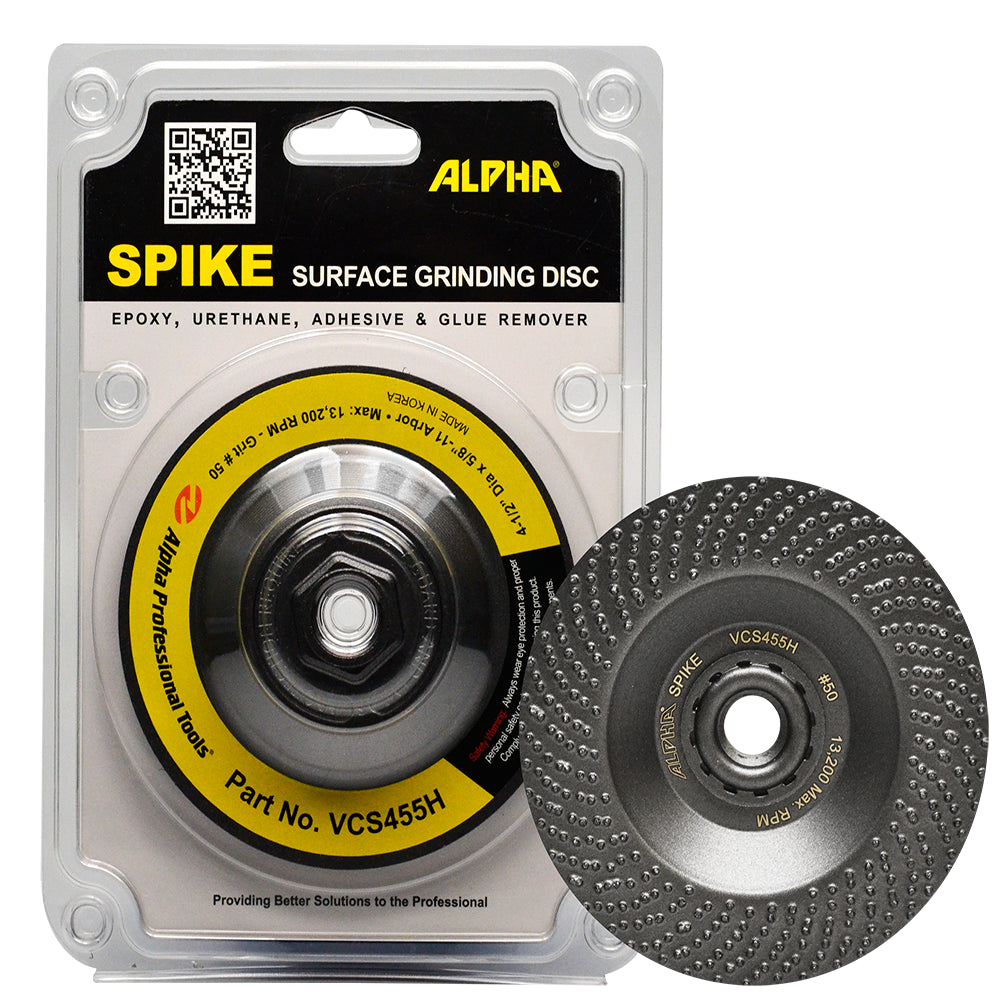

Diamond Disc for Thick Coating Removal
The Alpha® Spike Disc is a diamond-clustered coating removal disc for removing thick epoxy, urethane, glue, and adhesive coatings. Multiple layers of high-quality diamond grits are vacuum-brazed into clustered diamond beads for fast material removal while maintaining cutting performance throughout the life of the disc.
Coating Removal Without Grinding the Concrete Surface
The Spike Disc removes coatings from concrete without damaging the underlying surface like more aggressive PCD cup wheels can, reducing the need for a separate grinding step after coating removal. This makes it suited for restoration and surface preparation where the existing concrete needs to remain intact.
Open-Mesh Design for Reduced Clogging and Heat
A unique open-mesh diamond layout allows removed material to clear the working surface, reducing clogging and the heat buildup that can burn metal surfaces. The sandwiched rubber-cushioned lightweight body also reduces noise and vibration during operation.
Coating Removal on Concrete, Steel, Wood and Composites
In addition to concrete floor coating removal, the Spike Disc can be used on steel, wood, Glass Fiber Reinforced Polymer (GFRP), and Carbon Fiber Reinforced Polymer (CFRP). It is available in 4-1/2", 5", and 7" diameters with 35 or 50 grit and a 5/8"-11 threaded hub. The disc can also be combined with the Alpha Ecoguard G for a virtually dust-free solution.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What coatings can the Alpha Spike Disc remove?
The Spike Disc is designed for removing thick epoxy, urethane, glue, and adhesive coatings.
Will the Spike Disc damage the concrete underneath the coating?
The Spike Disc is designed to remove coatings without damaging the underlying concrete surface, reducing the need for a separate grinding process after coating removal.
What surfaces can the Alpha Spike Disc be used on?
It can be used on concrete, steel, wood, Glass Fiber Reinforced Polymer (GFRP), and Carbon Fiber Reinforced Polymer (CFRP).
How does the Spike Disc reduce clogging?
Its open-mesh diamond layout allows removed coating material to clear the working area, reducing clogging and associated heat buildup.
What is the difference between the 35 and 50 grit Spike Discs?
The Spike Disc is available in both 35 and 50 grit configurations. Select the grit appropriate for the coating removal and surface preparation requirements of the application.
What sizes are available?
The Spike Disc is available in 4-1/2", 5", and 7" diameters. The listed models use a 5/8"-11 threaded hub.
Can the Alpha Spike Disc be used with dust collection?
Yes. Alpha recommends combining the Spike Disc with the Ecoguard G for a virtually dust-free coating removal solution.
