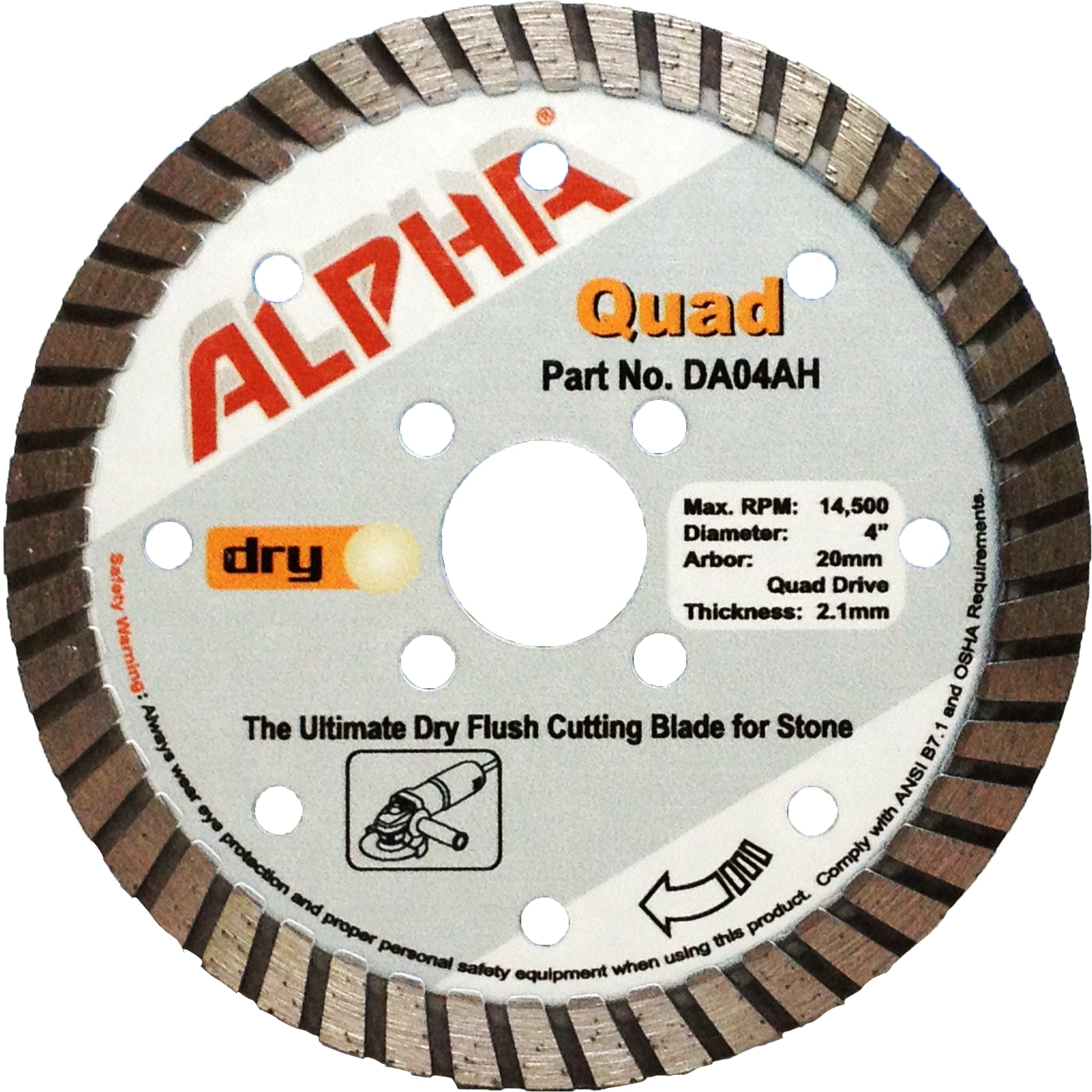

Alpha Quad Dry Flush Cutting Diamond Blade
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Blade Diameter
4"
Blade Thickness
2.1mm
Maximum RPM
14,500
Arbor
20mm Quad Drive
Cutting Method
Dry
Cutting Style
Flush Cutting
Tool Compatibility
High-Speed Angle Grinder
Quad Drive Adapter
Required
Why Choose This Product
Key Benefits
Flush Cutting Design
Allows close cutting for inside corners and specialized applications
Dry Cutting Performance
Turbo diamond blade designed for demanding dry cutting
Clean Cutting
Designed to minimize chipping during demanding cutting applications
Hard-to-Reach Access
Useful for corners, cleanup cuts and confined cutting areas
Angle Grinder Use
Converts compatible high-speed angle grinders for specialized cutting work
Multiple Blade Sizes
Available from 4" through 10" for different cutting requirements
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
DA04AH
UPC
749173460128
Product Type
Dry Flush Cutting Diamond Blade
Blade Series
Quad
Blade Diameter
4"
Blade Thickness
2.1mm
Maximum RPM
14,500
Arbor
20mm Quad Drive
Cutting Method
Dry
Cutting Style
Flush Cutting
Blade Design
Turbo Diamond Blade
Tool Compatibility
High-Speed Angle Grinder
Quad Drive Adapter
Required
Lock Nut
Not Required with Quad Drive Adapter
Applications
Flush Cuts, 90° Inside Corners, Cleanup Cuts & Hard-to-Reach Areas
About This Product
Dry Flush Cutting with High-Speed Angle Grinders
The Alpha® Quad Dry Flush Cutting Diamond Blade combines the cutting performance of the Alpha Plus blade with a specialized design for flush cutting applications. When used with the appropriate Quad Drive Adapter, the blade mounts to compatible high-speed angle grinders without the conventional lock nut, allowing the blade to cut closer to the work surface.
Clean Cuts in Corners and Hard-to-Reach Areas
The Quad blade is designed for dry cutting applications where access and cut positioning are critical. Fabricators can use it to create clean 90-degree inside corners, while monument builders can clean up marks left by larger diameter saw blades. Its flush-cutting configuration also makes it useful for sculpting, jobsite cutting, and reaching tight areas that are difficult to access with conventional blade setups.
Quad Drive System for Flush Cutting Applications
The 4", 5", 6", and 7" blades use a 20mm Quad Drive connection and require the appropriate Quad Drive Adapter for installation on a high-speed angle grinder. The 8", 9", and 10" blades use a 20mm flange with eight holes. The larger-diameter Quad Drive configuration is designed to support cutting with the angle grinder's existing safety guard in place when used with the appropriate setup.
Turbo Diamond Blade for Demanding Dry Cuts
The Alpha Quad is designed to deliver fast dry cutting with minimal chipping in demanding applications. Available in diameters from 4" through 10", the blade series provides size-specific thicknesses and maximum RPM ratings for use with angle grinders across fabrication, construction, monument work, and sculpting applications.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What is the Alpha Quad diamond blade designed for?
The Alpha® Quad is designed for dry flush cutting with angle grinders. It is particularly useful for 90-degree inside corners, cleanup cuts, tight areas, and other applications where a conventional blade setup cannot cut close enough to the work surface.
Does the Alpha Quad blade require a Quad Drive Adapter?
The 4", 5", 6", and 7" models use a 20mm Quad Drive and require the appropriate Quad Drive Adapter for use with a high-speed angle grinder. The 8", 9", and 10" models use a 20mm flange with eight holes.
Can the Alpha Quad be used for dry cutting?
Yes. The Quad is specifically designed as a dry cutting turbo diamond blade for flush cutting and other demanding applications.
What size Alpha Quad blades are available?
The Alpha Quad is available in 4", 5", 6", 7", 8", 9", and 10" diameters. Blade thickness, maximum RPM, and mounting configuration vary by size.
What applications is the Alpha Quad blade useful for?
Typical applications include flush cutting, creating clean 90-degree inside corners, cleaning up marks left by larger saw blades, jobsite cutting, sculpting, and accessing tight or difficult-to-reach areas.
Does the Quad Drive system use a standard lock nut?
The Quad Drive Adapter used with compatible Quad Drive blades eliminates the conventional lock nut and uses a threaded arbor to mount the system to an angle grinder.
