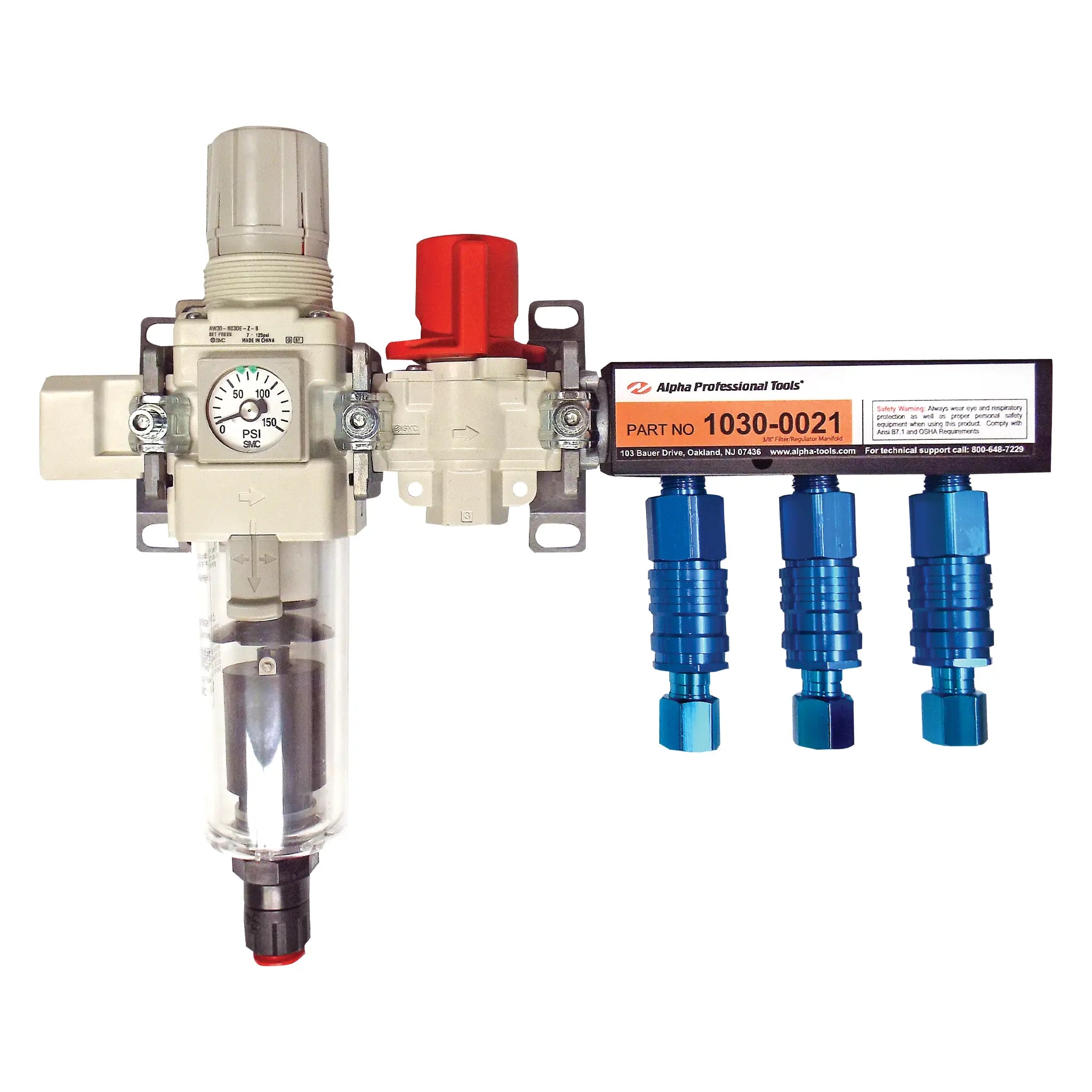

Alpha Filter/Regulator Manifold System for Pneumatic Tools
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Airflow Capacity
53 CFM
System Size
3/8"
Connection Thread
3/8" NPT
Tool Pressure
Supports Setting Tools at 85 PSI
Main System Pressure
Supports Operation at 125 PSI
Air Treatment
Filtration & Pressure Regulation
Tool Connections
(3) 1/4" Female NPT Plugs
Installation
Point of Use
Why Choose This Product
Key Benefits
Contaminant Protection
Filters rust and contamination before reaching pneumatic tools
Pressure Management
Helps prevent pressure drops during high-volume air demand
Point-of-Use Control
Regulates and distributes compressed air where tools are connected
Multiple Airflow Options
Choose 53 CFM or 106 CFM based on system demand
Shop Piping Integration
Multiple NPT configurations adapt to existing compressed air systems
Connection Compatibility
Works with multiple common high-flow coupler and plug styles
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
1030-0021
UPC
749173642791
Product Type
Filter/Regulator Manifold System
Airflow Capacity
53 CFM
System Size
3/8"
Connection Thread
3/8" NPT
Installation Location
Point of Use
Primary Function
Filter, Regulate & Distribute Compressed Air
Contaminant Protection
Helps Prevent Rust & Contaminants from Reaching Pneumatic Tools
Pressure Management
Helps Prevent Pressure Drops During High Air Demand
Tool Pressure
Supports Setting Pneumatic Tools at 85 PSI
Main System Pressure
Supports Main Air System Operation at 125 PSI
Manifold Material
Aluminum
Shut-Off/Dump Valve
Yes
Included Components
Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps & Couplers
Included Tool Connections
(3) 1/4" Female NPT Plugs
Coupler Compatibility
Milton V/M Styles; Truflate Hi-Flo & I/M Style; Flexilla High-Flow; Primefit HF; Amflo Type D; Camel Type D; Campbell Hausfeld I/M Style
Plug Compatibility
Milton V Style; Truflate Hi-Flo; Flexilla High-Flow; Primefit HF
About This Product
Point-of-Use Air Filtration and Pressure Regulation
The Alpha® Filter/Regulator Manifold System protects pneumatic tools from rust, contamination, and other debris carried through shop air piping and connections. Installed at the point of use, the system combines air filtration and pressure regulation with a manifold for connecting pneumatic tools to the existing compressed air supply.
Pressure Control for High Air Demand
The Filter/Regulator helps prevent pressure drops when pneumatic tools require a large volume of air. This allows tool pressure to be set at 85 PSI while the main compressed air system operates at 125 PSI, supporting consistent air delivery and pneumatic tool performance.
53 CFM and 106 CFM Manifold Configurations
The system is available in 53 CFM and 106 CFM configurations with 3/8", 1/2", or 3/4" NPT connections depending on the selected model. Each configuration includes a Filter/Regulator, relief valve, adapter blocks, T-clamps, couplers, and multiple female NPT plugs for connecting pneumatic tools.
High-Flow Quick-Disconnect Compatibility
The supplied couplers are interchangeable with compatible high-flow connections from Milton, Truflate, Flexilla, Primefit, Amflo, Camel, and Campbell Hausfeld. Plugs are interchangeable with compatible Milton V Style, Truflate Hi-Flo, Flexilla High-Flow, and Primefit HF connections, allowing the manifold system to integrate with a range of existing shop air setups.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What does the Alpha Filter/Regulator Manifold System do?
The system filters contaminants from the compressed air supply, regulates air pressure, and distributes air to connected pneumatic tools. It is designed to help protect tools and reduce pressure drops during high air demand.
What is the difference between the 53 CFM and 106 CFM systems?
The 53 CFM models use a 3/8" Filter/Regulator system and are available with 3/8" or 1/2" NPT connections. The 106 CFM models use a 1/2" Filter/Regulator system and are available with 1/2" or 3/4" NPT connections.
Where is the Filter/Regulator Manifold System installed?
The system is designed for point-of-use installation and can be adapted to existing shop compressed air piping.
How does the system help maintain pneumatic tool pressure?
The Filter/Regulator helps reduce pressure drops during high-volume air use, allowing pneumatic tools to be set at 85 PSI while the main compressed air system operates at 125 PSI.
What connections are included with the 53 CFM models?
The 53 CFM systems include three 1/4" female NPT plugs along with the Filter/Regulator, relief valve, adapter blocks, T-clamps, and couplers.
What connections are included with the 106 CFM models?
The 106 CFM systems include three 1/4" female NPT plugs and one 3/8" female NPT plug along with the Filter/Regulator, relief valve, adapter blocks, T-clamps, and couplers.
Are the quick-disconnect couplers compatible with other brands?
Yes. The couplers are interchangeable with specified styles from Milton, Truflate, Flexilla, Primefit, Amflo, Camel, and Campbell Hausfeld. Plug compatibility includes specified styles from Milton, Truflate, Flexilla, and Primefit.
