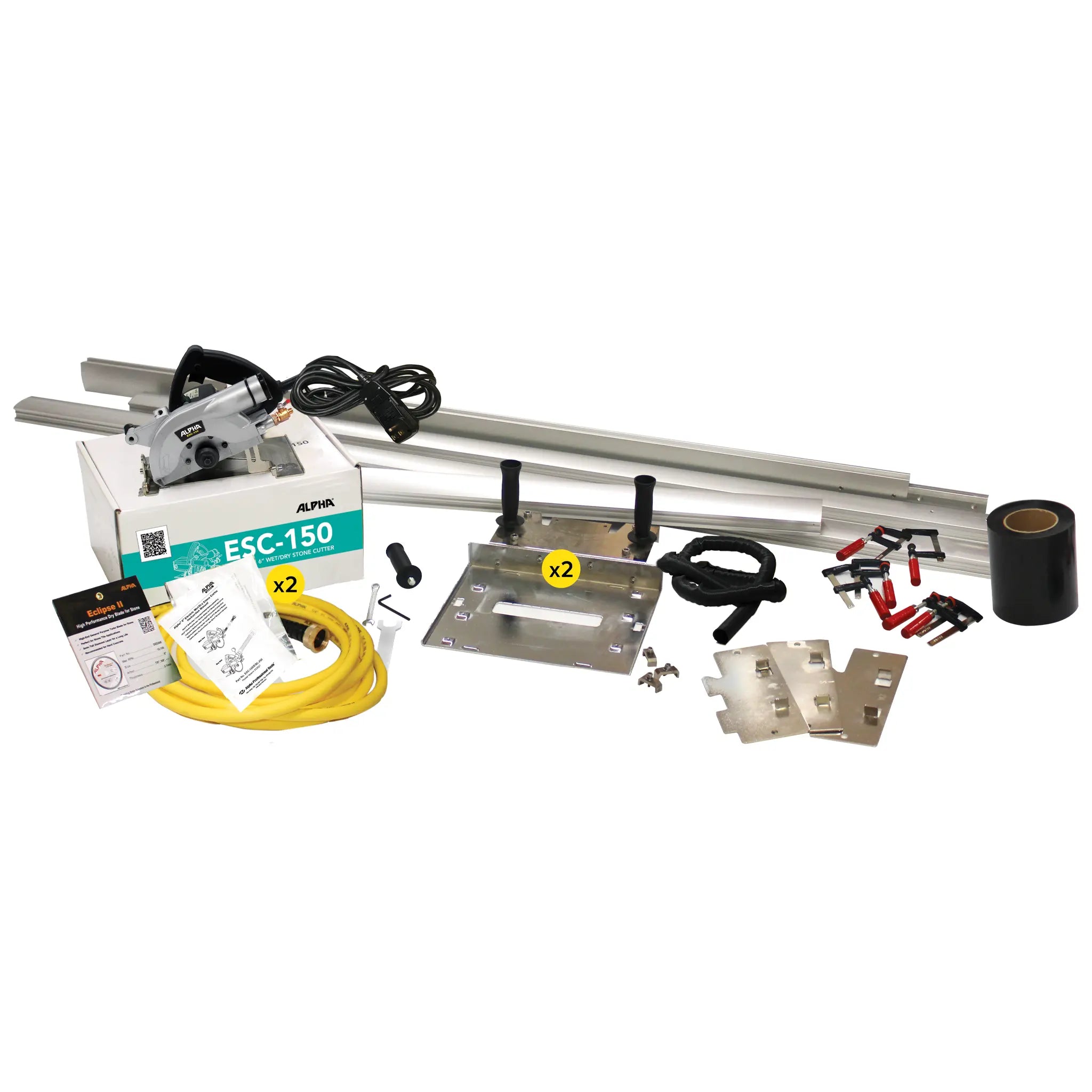

Alpha ESC-150 / ESC-250 Miter Cutting Kit
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Voltage
110V
Power
1200W
Blade Diameter
6"
Max Cutting Depth
2"
No-Load Speed
10,000 RPM
Arbor
7/8"
Cutting Setup
Straight, Left & Right Miter
Guide Rails Included
4', 7' & 12'
Why Choose This Product
Key Benefits
Precision Miter Cutting
Rail-guided system prepares accurate edges for lamination
Straight & Miter Cuts
Carriage supports straight, left-side and right-side cutting positions
One-Time Rail Setup
Reposition the cutter for opposing miters without relocating the guide rail
Dual Cutter System
Two cutters and carriages can be configured for efficient V-cut preparation
Broad Material Compatibility
Cuts stone, quartz, concrete, sintered slabs and porcelain
Complete Cutting System
Includes cutters, blades, carriages, three guide rails and protection tape
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
5480-5150
UPC
749173661709
Product Type
Miter Cutting Kit
Model
ESC-150
Cutting Capabilities
Straight, Left Miter & Right Miter Cuts
Applications
Waterfall Edges, Book Matching, Pool Copings, Step Treads, Risers, Wall Caps & Pillar Caps
Compatible Materials
Granite, Quartz Surfaces, Marble, Limestone, Concrete, Sintered Slabs, Porcelain Slabs & Pavers
Voltage
110V
Amperage
11.2A
Power
1200W
No-Load Speed
10,000 RPM
Cutting Disc Diameter
6" (150mm)
Max Cutting Depth
2" (50.88mm)
Arbor
7/8" (22.23mm)
Tool Weight
11.30 lbs (5.12 kg) Each
Cord
15' (4.5m), Single Phase
Plug Type
Type A
Stone Cutters Included
2 × ESC-150 Wet/Dry Stone Cutters
Standard Accessories
2 Sets
Blades Included
2 × 6" Eclipse II Blades (DEE006)
Carriage Assemblies
2 × 6" Carriage Assemblies (ASC-6CSM)
Carriage Positions
Straight, Left Miter & Right Miter
Guide Rails Included
4' (ASC-GR04), 7' (ASC-GR07) & 12' (ASC-GR12)
Surface Protection Tape
1 × BAB0650
Tool Warranty
1 Year
About This Product
Portable Miter Cutting System for Stone and Slabs
The Alpha® ESC-150 / ESC-250 Miter Cutting Kit is a portable cutting system for producing precise straight and miter cuts in granite, quartz surfaces, marble, limestone, concrete, sintered slabs, porcelain slabs, and pavers. Each kit includes two ESC-series wet/dry stone cutters with powerful 1200W motors, two 6" Eclipse II blades, two carriage assemblies, three guide rails, and surface protection tape for a complete rail-guided cutting setup.
Precise Miter Cuts for Lamination
The 6" Carriage Assembly (ASC-6CSM) supports straight cutting as well as left- and right-side miter cutting using three included positioning templates. With two cutter and carriage assemblies positioned in opposite directions on the same guide rail, both sides of a V-cut can be completed for lamination preparation. A single cutter setup can also produce both cuts by repositioning the cutter after the first pass without relocating the guide rail.
Stone, Quartz and Porcelain Cutting Applications
The system is built for fabrication work including laminated waterfall edges, book matching, pool copings, step treads, risers, and wall and pillar caps. The 6" cutting system provides up to 2" cutting depth, while the rail-guided setup reduces repeated positioning and setup time when preparing accurate cuts for lamination.
Complete Guide Rail and Cutting Kit
Each kit includes two ESC-150 or ESC-250 wet/dry stone cutters with standard accessories, two 6" Eclipse II blades (DEE006), two 6" Carriage Assemblies (ASC-6CSM), 4', 7', and 12' guide rails, and Surface Protection Tape (BAB0650). The ESC-150 operates at 110V with a Type A plug, while the ESC-250 operates at 220V with a Type C plug.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What is included with the Alpha ESC Miter Cutting Kit?
Each kit includes two ESC-150 or ESC-250 wet/dry stone cutters with standard accessories, two 6" Eclipse II blades, two 6" carriage assemblies, 4', 7', and 12' guide rails, and surface protection tape.
What materials can the ESC Miter Cutting Kit cut?
The system can be used on granite, quartz surfaces, marble, limestone, concrete, sintered slabs, porcelain slabs, and porcelain pavers.
Can the system make both straight and miter cuts?
Yes. The ASC-6CSM carriage assembly includes three positioning templates for straight cutting, left-side miter cutting, and right-side miter cutting.
What is the maximum cutting depth?
The ESC-150 and ESC-250 use 6" cutting discs and provide a maximum cutting depth of 2" (50.88mm).
What is the difference between the ESC-150 and ESC-250 kits?
The ESC-150 kit operates at 110V and 11.2A with a Type A plug. The ESC-250 kit operates at 220V and 5.5A with a Type C plug. Both models are rated at 1200W and 10,000 RPM.
Can the system create both sides of a V-cut for lamination?
Yes. Two cutter and carriage assemblies can be positioned in opposite directions on the same guide rail to cut both sides of a V for lamination preparation. A single cutter setup can also make both cuts by repositioning the cutter without moving the guide rail.
What guide rail lengths are included?
The kit includes 4' (1.2m), 7' (2.1m), and 12' (3.6m) guide rails.
What applications is the miter cutting system suited for?
The system can be used for fabrication work including laminated waterfall edges, book matching, pool copings, step treads, risers, and wall and pillar caps.
