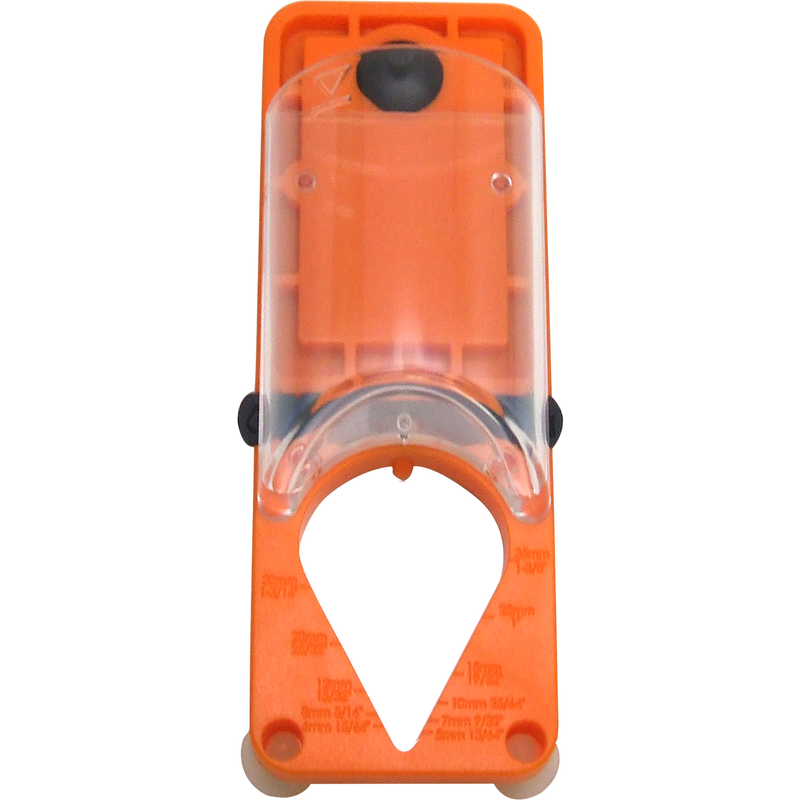

Alpha Drill Bit Guide & Water Delivery System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Drill Bit Range
3/16" to 1-3/8"
Drill Bit Type
Electroplated Diamond Drill Bits
Guide Function
Prevents Drill Bit Wandering
Water Delivery
Supplies Water to Cutting Edge
Mounting Method
Vacuum Suction Cup
Materials
Marble, Granite, Ceramic, Porcelain & Glass Tile
Anchor Hole Application
1/4" Holes
Common Uses
Fixtures, Shelves, Cabinets & Shower Door Frames
Why Choose This Product
Key Benefits
Stable Hole Starts
Prevents drill bits from wandering across the surface
Integrated Cooling
Delivers water directly to the cutting edge during drilling
Secure Positioning
Vacuum suction cup holds the guide in place
Wide Bit Range
Accommodates electroplated drill bits from 3/16" to 1-3/8"
Surface Versatility
Works on natural stone, ceramic, porcelain and glass tile
Quick Repositioning
Releases and moves between drilling locations in seconds
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
WDS138
UPC
749173461583
Product Type
Drill Bit Guide & Water Delivery System
Compatible Drill Bits
Electroplated Diamond Drill Bits
Drill Bit Diameter Range
3/16" to 1-3/8"
Guide Function
Prevents Drill Bit Wandering
Water Delivery
Supplies Cooling Water to Cutting Edge
Securing Method
Vacuum Suction Cup
Compatible Materials
Marble, Granite, Ceramic, Porcelain & Glass Tile
Anchor Hole Application
1/4" Holes
Common Applications
Towel Bars, Soap Dishes, Shelves, Cabinets & Shower Door Frames
About This Product
Drill Bit Guide for Tile and Natural Stone

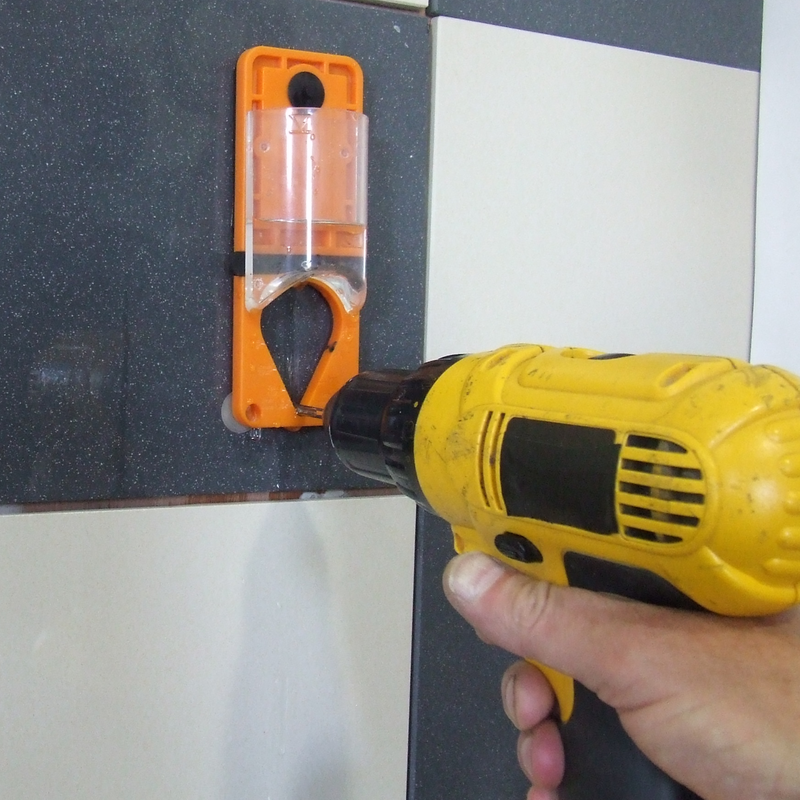

The Alpha® Drill Bit Guide & Water Delivery System provides a stable starting position for electroplated diamond drill bits when drilling marble, granite, ceramic, porcelain, and glass tile. The guide prevents the drill bit from wandering across the surface, improving control when starting holes for bathroom fixtures and other mounted accessories.
Integrated Water Delivery for Diamond Drill Bits
The system supplies water to the cutting edge during drilling to keep the diamond drill bit cool and support cutting performance and service life. Combining guidance and water delivery in one accessory reduces the need to control the drill position and cooling water separately.
Vacuum Suction Cup for Secure Positioning
A suction cup creates a vacuum that secures the guide to the work surface during drilling. Once a hole is complete, the guide can be released and repositioned for the next drilling location in seconds.
3/16" to 1-3/8" Drill Bit Compatibility
The guide works with electroplated drill bits ranging from 3/16" through 1-3/8" in diameter. It is particularly useful for drilling 1/4" anchor holes when installing towel bars, soap dishes, shelves, cabinets, and shower door frames.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What drill bit sizes fit the Alpha Drill Bit Guide?
The guide works with electroplated drill bits ranging from 3/16" through 1-3/8" in diameter.
How does the drill guide prevent the bit from wandering?
A suction cup creates a vacuum that secures the guide to the work surface, providing a stable drilling position and helping prevent the bit from wandering when starting the hole.
Does the drill bit guide provide water while drilling?
Yes. The system delivers water to the cutting edge to cool the diamond drill bit during drilling and support cutting performance and drill bit life.
What materials can the drill bit guide be used on?
It is intended for drilling marble, granite, ceramic, porcelain, and glass tile with compatible electroplated diamond drill bits.
Can the guide be used for drilling anchor holes?
Yes. It is particularly useful for drilling 1/4" anchor holes for towel bars, soap dishes, shelves, cabinets, shower door frames, and similar installations.
Can the drill guide be repositioned between holes?
Yes. The vacuum-mounted guide can be released and moved to the next drilling location after completing a hole.
