Alpha Countertop Trim Kit with ESC-125 / ESC-225 Stone Cutter
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Included Cutter
ESC-125 Wet/Dry Stone Cutter
Voltage
110V
Blade Diameter
5"
Maximum Cutting Depth
1-5/8"
No-Load Speed
12,000 RPM
Guide Rail Length
4'
Motor Power
1200W
Included Blade
5" Eclipse II Diamond Blade
Why Choose This Product
Key Benefits
Guided Straight Cutting
Carriage and 4' guide rail control the cutting path
Countertop Trimming
Built for fitting pre-fabricated countertops and stone slabs
Wet/Dry Cutting
ESC stone cutter supports wet and dry cutting applications
Deep Cutting Capacity
Cuts hard surfaces up to 1-5/8" deep
Complete Cutting Setup
Includes cutter, carriage, diamond blade and guide rail
Reduced Chipping
Eclipse II turbo blade supports clean cuts on hard surfaces
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
5480-4150
UPC
749173661563
Product Type
Countertop Trim Kit
Included Cutter
ESC-125 Wet/Dry Stone Cutter
Cutter Model
ESC-125
Voltage
110V
Amperage
11.2A
Motor Power
1200W
No-Load Speed
12,000 RPM
Cutting Disc Diameter
5" (125 mm)
Maximum Cutting Depth
1-5/8" (41 mm)
Arbor
7/8" (22.23 mm)
Guide Rail
ASC-GR04 4' (1.2 m)
Carriage Assembly
ASC-5CSM 5" Carriage Assembly
Included Blade
Alpha Eclipse II 5" (DEE005)
Blade Type
General-Purpose Turbo Diamond Blade
Diamond Layer Height
8 mm
Recommended Material
Stone & Hard Surfaces
Cutting Method
Wet/Dry
Tool Weight
8.9 lbs (4.0 kg)
Cord Length
15' (4.5 m)
Phase
Single Phase
Plug Type
Type A
Kit Contents

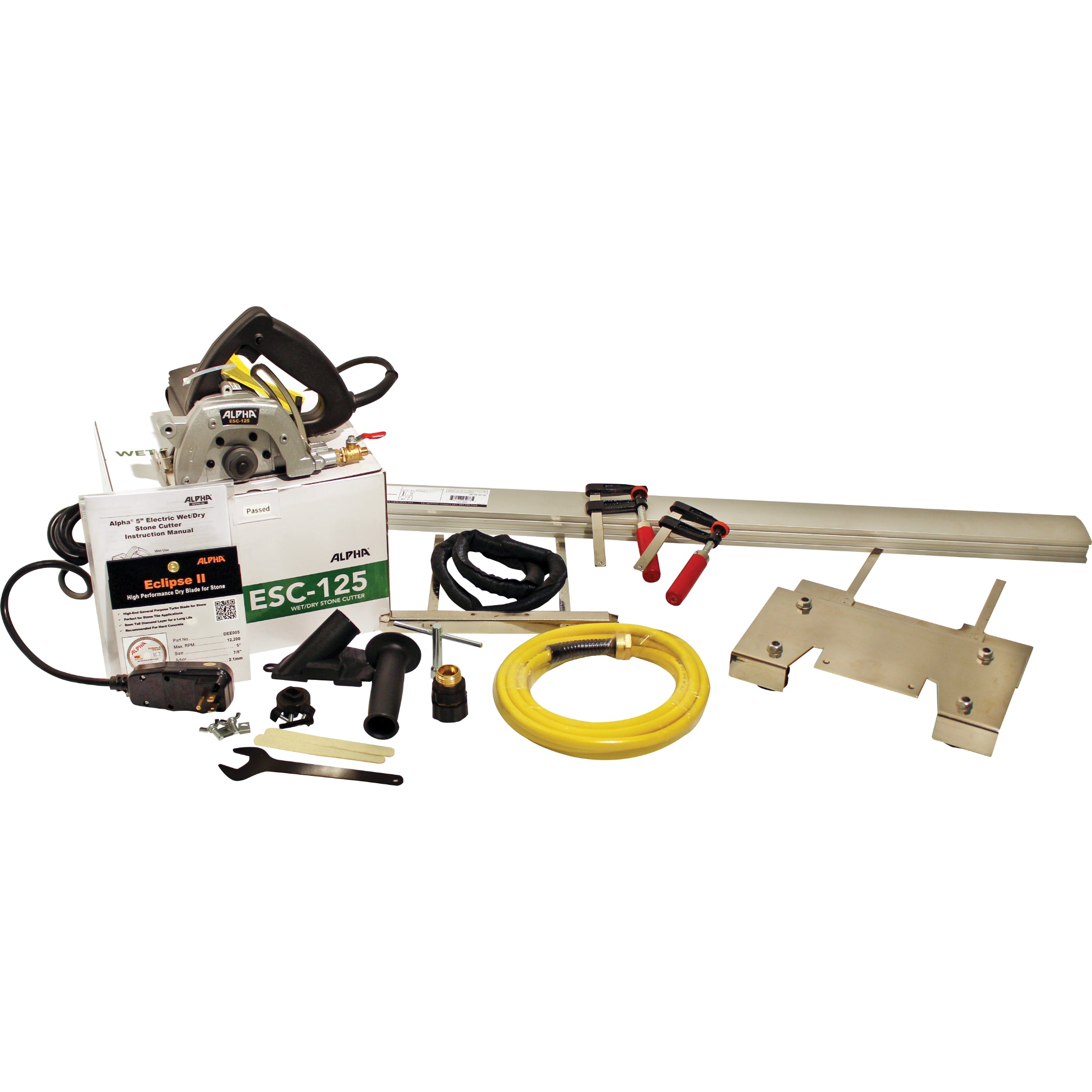

ESC-125 Stone Cutter, ASC-5CSM 5" Carriage Assembly, DEE005 5" Eclipse II Blade, ASC-GR04 4' Guide Rail & ESC-125 Standard Accessories
Tool Warranty
1 Year on ESC-125
About This Product
Countertop Cutting System with ESC Stone Cutter
The Alpha® Countertop Trim Kit with ESC-125 / ESC-225 Stone Cutter is a guided cutting system for trimming pre-fabricated countertops, stone slabs, and other hard surfaces for a custom fit. This second-generation kit combines an ESC Wet/Dry Stone Cutter with a carriage assembly and 4' guide rail to produce clean, straight cuts while keeping the cutter aligned through the application.
4' Guide Rail and 5" Carriage Assembly
The included ASC-5CSM 5" Carriage Assembly mounts the stone cutter to the ASC-GR04 4' Guide Rail, creating a guided setup for straight countertop and slab trimming. The system is designed for straightforward setup and operation where controlled cuts are needed on hard-surface materials.
5" Eclipse II Diamond Blade for Hard Surfaces
Each kit includes an Alpha® Eclipse II 5" diamond blade with an 8 mm tall diamond layer for extended blade life. The general-purpose turbo blade is intended for stone fabrication and tile applications, providing consistent cutting performance while minimizing chipping.
ESC-125 and ESC-225 Cutting Performance
The ESC stone cutter uses a 1200W motor with a no-load speed of 12,000 RPM and accepts 5" cutting discs with a 7/8" arbor. Maximum cutting depth is 1-5/8". The ESC-125 operates at 110V and 11.2A with a Type A plug, while the ESC-225 operates at 220V and 5.5A with a Type C plug.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What is included with the Alpha Countertop Trim Kit?
Each kit includes an ESC-125 or ESC-225 Wet/Dry Stone Cutter, ASC-5CSM 5" Carriage Assembly, DEE005 5" Eclipse II diamond blade, ASC-GR04 4' guide rail, and the standard accessories for the included cutter.
What is the difference between the ESC-125 and ESC-225 kits?
The ESC-125 kit operates at 110V and 11.2A with a Type A plug. The ESC-225 kit operates at 220V and 5.5A with a Type C plug. Both use a 1200W cutter with a 5" blade, 12,000 RPM no-load speed, and maximum cutting depth of 1-5/8".
How deep can the Countertop Trim Kit cut?
The ESC-125 and ESC-225 stone cutters provide a maximum cutting depth of 1-5/8" (41 mm).
What materials is the Countertop Trim Kit designed to cut?
The kit is recommended for stone and other hard surfaces, including pre-fabricated countertops and slabs that need to be trimmed for a custom fit.
What blade comes with the Countertop Trim Kit?
The kit includes an Alpha Eclipse II 5" general-purpose turbo diamond blade, model DEE005. It has an 8 mm tall diamond layer and is intended for stone fabrication and tile applications.
Can the ESC stone cutter be used for wet and dry cutting?
Yes. The ESC-125 and ESC-225 are Wet/Dry Stone Cutters and can be used for compatible wet or dry cutting applications.
How long is the included guide rail?
The kit includes the ASC-GR04 guide rail, which measures 4' (1.2 m) long.
