Alpha Contour Diamond Blade for Granite & Engineered Stone
Fast Shipping
Easy Returns
Secure Checkout
Recommended Add-Ons
You May Also Need
Alpha
Alpha Profiler Z-Series Vertical Grinding Wheel
Vertical Grinding Wheel for 90° Edge Shaping
$256.61
At a Glance
Quick Decision Guide
Blade Size
4"
Material
Granite, Engineered Stone & Quartzite
Primary Application
Sinkholes & Curved Cuts
Blade Thickness
4.0mm
Maximum RPM
14,500
Arbor
7/8"
Depth of Cut
3/4"
Cutting Method
Wet or Dry
Why Choose This Product
Key Benefits
Curved Cutting
Wider kerf improves maneuverability through sinkholes and curved cuts
Undercut Control
Interior diamond segments help prevent undercutting during curve cutting
Diamond Segment Design
Direct sintered segments cover both sides and the peripheral cutting edge
Fewer Plunge Cuts
Increased maneuverability reduces difficult and time-consuming plunge cutting
Wet or Dry Use
Supports wet and dry cutting for flexible fabrication setups
Equipment Compatibility
Fits compatible angle grinders, stone cutters and CNC cutting heads
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
CCB004
UPC
749173460012
Product Type
Contour Diamond Blade
Blade Size
4"
Blade Thickness
4.0mm
Maximum RPM
14,500
Arbor
7/8"
Depth of Cut
3/4"
Primary Application
Granite Sinkholes & Curved Cuts
Recommended Materials
Granite, Engineered Stone, Quartzite & Harder Natural Stone
Additional Material
Harder Types of Marble
Cutting Method
Wet or Dry
Diamond Segment Design
Direct Sintered Segments on Both Sides & Peripheral Edge
Kerf Design
Wide Kerf for Increased Maneuverability
Undercut Control
Interior Diamond Segments Help Prevent Undercutting
Compatible Equipment
Angle Grinders, Wet/Dry Stone Cutters & Compatible CNC Cutting Heads
About This Product
Curve Cutting for Granite Sinkholes and Engineered Stone

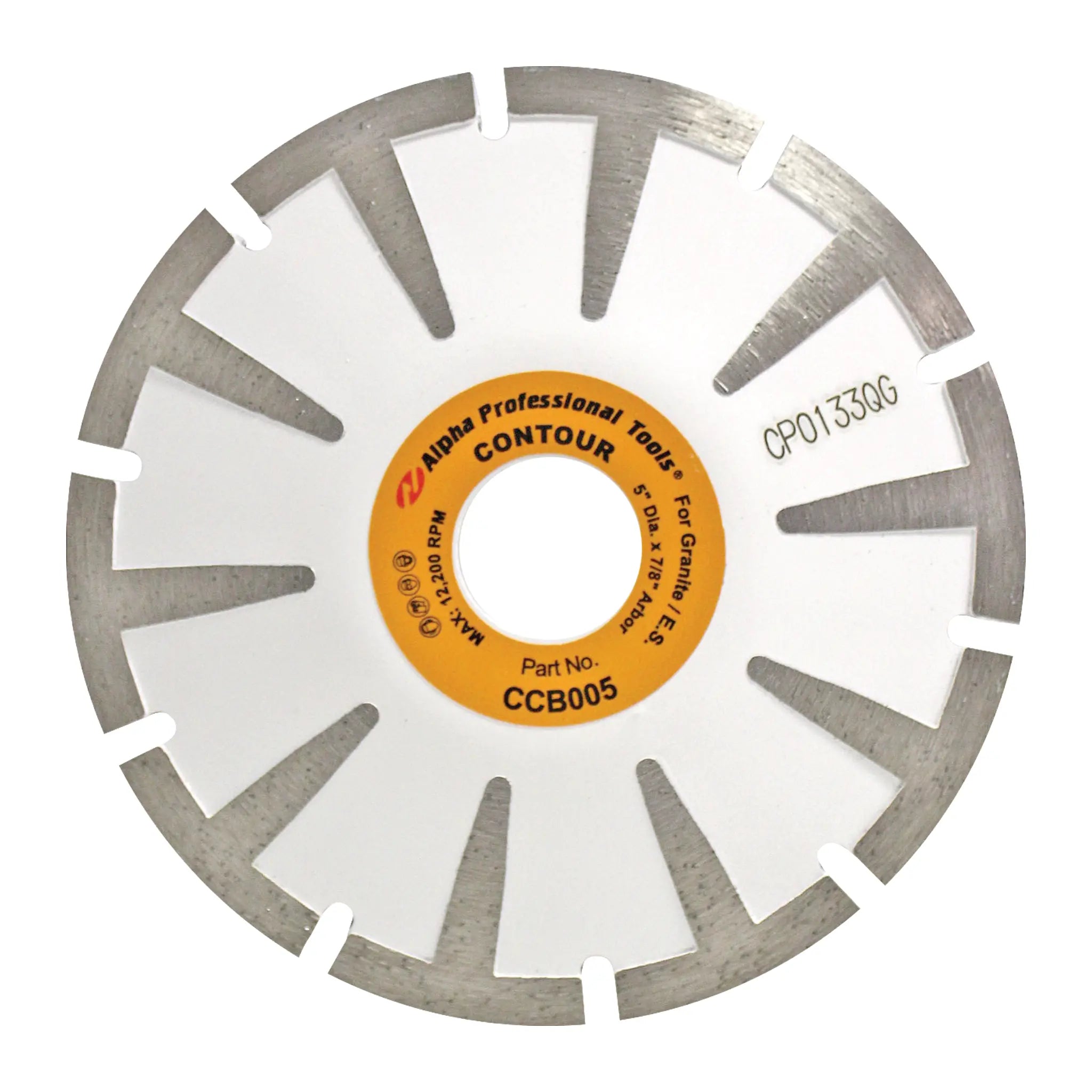

The Alpha® Contour Diamond Blade is specifically developed for cutting granite sinkholes and other curved applications in granite and engineered stone. It also performs well on quartzite, harder natural stone, and harder types of marble where controlled curved cutting and maneuverability are required.
Direct Sintered Diamond Segments for Curved Cuts
Diamond segments are direct sintered to both sides of the steel core and along the peripheral cutting edge. This design produces a wider kerf that allows the blade to move through curved cuts more easily while supporting clean, accurate cutting. Diamond segments on the inside of the steel core help prevent undercutting, a common problem when making curved cuts with conventional blades.
Increased Maneuverability for Sinkhole Cutting
The wider kerf and cutting design provide greater maneuverability than a standard diamond blade, reducing the need for difficult and time-consuming plunge cuts when shaping sinkholes and other curved openings. Available blade sizes from 4" to 6" provide cutting depths up to 1-5/8" for different fabrication requirements.
Wet or Dry Cutting with Stone Fabrication Equipment
The Contour Diamond Blade can be used wet or dry and features a 7/8" arbor. It fits compatible wet/dry stone cutters and common angle grinders and can also be used with CNC routers equipped with a compatible cutting head.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What materials can the Alpha Contour Diamond Blade cut?
The blade is developed for granite and engineered stone and also works on quartzite, harder natural stone, and harder types of marble.
Is this the Alpha Contour Blade for porcelain?
No. This version is specifically intended for granite, engineered stone, quartzite, and other supported natural stone applications. Alpha offers a separate Contour blade intended for porcelain applications.
What is the Contour Diamond Blade primarily used for?
It is specifically developed for cutting granite sinkholes and is also suited to other curved cutting applications where increased blade maneuverability is required.
How does the blade help prevent undercutting?
Diamond segments on the inside of the steel core help prevent undercutting during curved cutting applications.
Can the Alpha Contour Diamond Blade be used wet or dry?
Yes. The blade can be used for either wet or dry cutting with compatible equipment.
Why does the Contour Blade use a wider kerf?
The wider kerf improves maneuverability through curved areas, allowing the blade to make curved cuts more easily than a standard blade and reducing the need for difficult plunge cuts.
What equipment is compatible with the Contour Diamond Blade?
The blade can be used with compatible angle grinders and wet/dry stone cutters. It can also be used with CNC routers equipped with a compatible cutting head.
What sizes are available?
The Granite and Engineered Stone Contour Diamond Blade is available in 4", 4-1/2", 5", and 6" sizes with a 7/8" arbor.
