Alpha Black Belt Rail Saw
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Rip Cut Capacity
51" (130 cm)
Diagonal Cut Capacity
33" (84 cm)
Maximum Cutting Depth
2-1/4" Single Pass / 3-3/8" Step Cut
Miter Capacity
Up to 45°
Motor
2 HP (1.5 kW)
Blade Compatibility
10" & 12"
Blade Arbor
1" or 60 mm
Maximum Load
400 lbs (180 kg)
Why Choose This Product
Key Benefits
Large Format Capacity
Rip cuts up to 51" and diagonal cuts up to 33"
Deep Cutting
Cuts 2-1/4" in one pass or 3-3/8" with a step cut
Miter Cutting
Side-tilting cutting system supports angles up to 45°
Adjustable Cutting Depth
Mechanical vertical tilt adjusts cutting head depth
Stable Cutting Platform
Rugged aluminum table chassis supports precise operation
Smooth Head Movement
Stainless steel rails and armored ball bearings guide the cutting head
Dual-Side Water Delivery
Magnetic-induction pump supplies water to both sides of the blade
Jobsite Mobility
Retractable legs, table handles, and heavy-duty wheels simplify transport
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
BBS-012
UPC
749173621475
Product Type
Wet Rail Saw
Recommended Materials
Ceramic, Porcelain, Glass Panels & Other Compatible Materials
Rip Cut Capacity
51" (130 cm)
Diagonal Cut Capacity
33" (84 cm)
Single-Pass Cutting Depth
Up to 2-1/4"
Step-Cut Depth
Up to 3-3/8"
Miter Capacity
Up to 45°
Cutting Depth Adjustment
Mechanical Vertical Tilting System
Motor
2 HP (1.5 kW) Direct Drive
Voltage
115V
Frequency
60 Hz
Amperage
9.6A
Motor Speed
3,500 RPM
Blade Diameter
10" & 12"
Blade Arbor
1" or 60 mm
Table Chassis
Aluminum
Head Rails
Stainless Steel
Cutting Head Guidance
Adjustable Armored Ball Bearings
Water Pump
Maintenance-Free Magnetic-Induction
Water Delivery
Both Sides of Blade
Blade Guards
Front, Back & Bilateral
Legs
Retractable with Fall-Protection Device
Transport Features
Table Handles & Heavy-Duty Wheels
Maximum Load
400 lbs (180 kg)
Total Weight
128 lbs (58 kg)
Tool Warranty
1 Year
About This Product

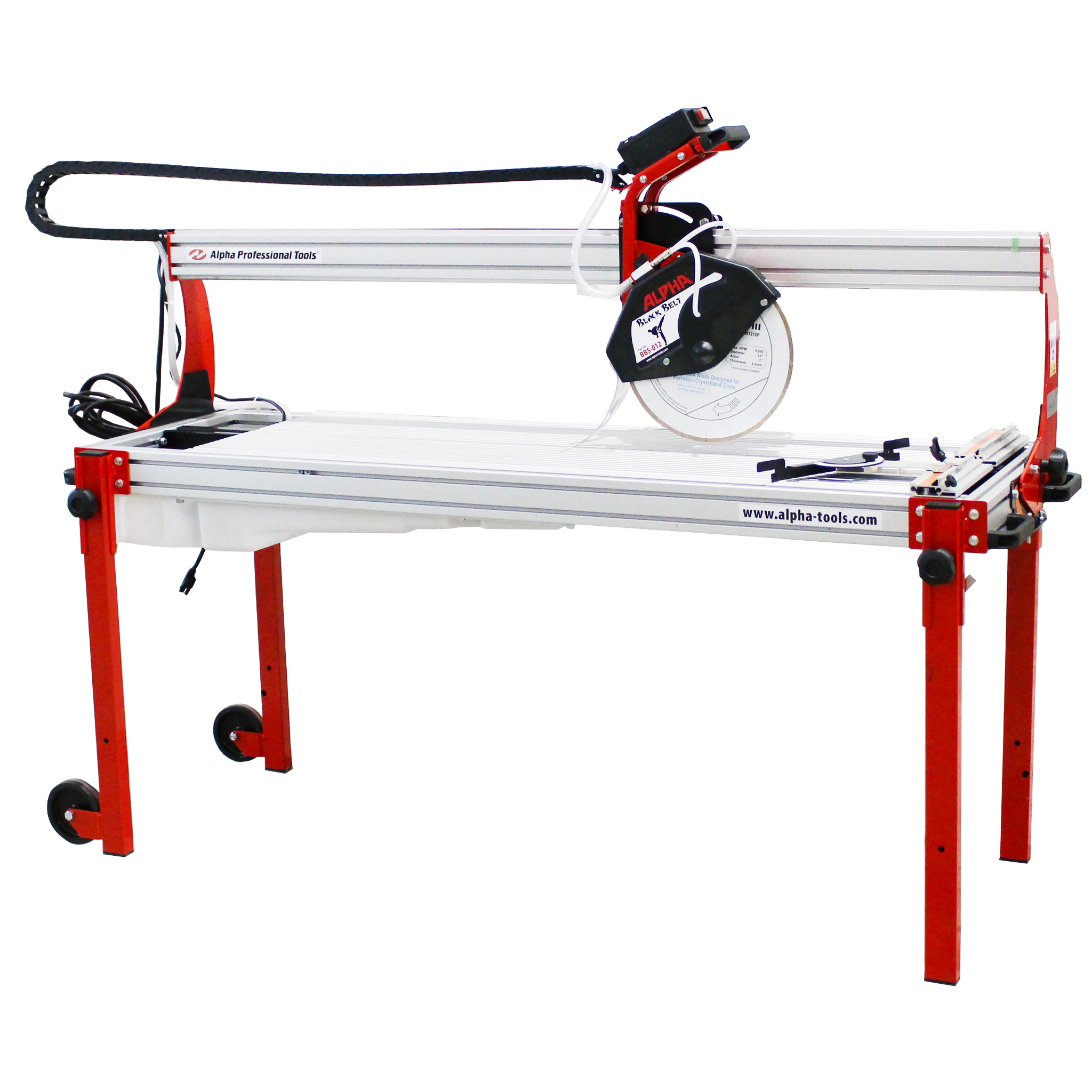

Professional Rail Saw for Large Format Tile
The Alpha® Black Belt Rail Saw is a professional wet rail saw for cutting ceramic, porcelain, glass panels, and other compatible materials. Its rugged aluminum table chassis provides a stable cutting platform, while stainless steel head rails and adjustable armored ball bearings support smooth, precise movement of the cutting head.
51" Rip Cutting and 45° Miter Capability
The saw provides rip cuts up to 51" (130 cm) and diagonal cuts up to 33" (84 cm) for handling large format tile and panels. A mechanical vertical tilting system provides cutting depth adjustment, while the side-tilting cutting system allows cuts up to 45° for miter applications. Maximum cutting depth is 2-1/4" in a single pass or 3-3/8" using a step cut.
2 HP Direct Drive Motor with 10" and 12" Blade Support
A 115V, 9.6A, 2 HP (1.5 kW) direct drive motor operates at 3,500 RPM and accepts both 10" and 12" blades with 1" or 60 mm arbors. This blade compatibility provides flexibility for different cutting depths and material requirements without changing saw platforms.
Integrated Water Delivery and Jobsite Transport
A maintenance-free magnetic-induction water pump supplies water to both sides of the blade during wet cutting. Front, rear, and bilateral blade guards reduce blade exposure and water splash, while retractable legs with a fall-protection device, table handles, and heavy-duty wheels support transportation and setup on the jobsite.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What is the maximum rip cut capacity of the Alpha Black Belt Rail Saw?
The Black Belt Rail Saw can make rip cuts up to 51" (130 cm) and diagonal cuts up to 33" (84 cm).
How deep can the Black Belt Rail Saw cut?
The saw cuts up to 2-1/4" deep in a single pass and up to 3-3/8" deep using a step cut.
What blade sizes does the Black Belt Rail Saw accept?
The saw accepts 10" and 12" diameter blades with either a 1" or 60 mm arbor.
Can the Black Belt Rail Saw make miter cuts?
Yes. The side-tilting cutting system supports cutting angles up to 45°, making it suitable for miter cuts.
What materials can the Black Belt Rail Saw cut?
The saw is intended for cutting ceramic, porcelain, glass panels, and other compatible materials.
What motor does the Black Belt Rail Saw use?
It uses a 115V, 60 Hz, 9.6A, 2 HP (1.5 kW) direct drive motor operating at 3,500 RPM.
How is water supplied to the blade during cutting?
A maintenance-free magnetic-induction water pump delivers water to both sides of the blade for wet cutting.
Is the Black Belt Rail Saw designed for jobsite transportation?
Yes. It includes retractable legs, table handles, and heavy-duty wheels to support setup and transportation between work areas.
