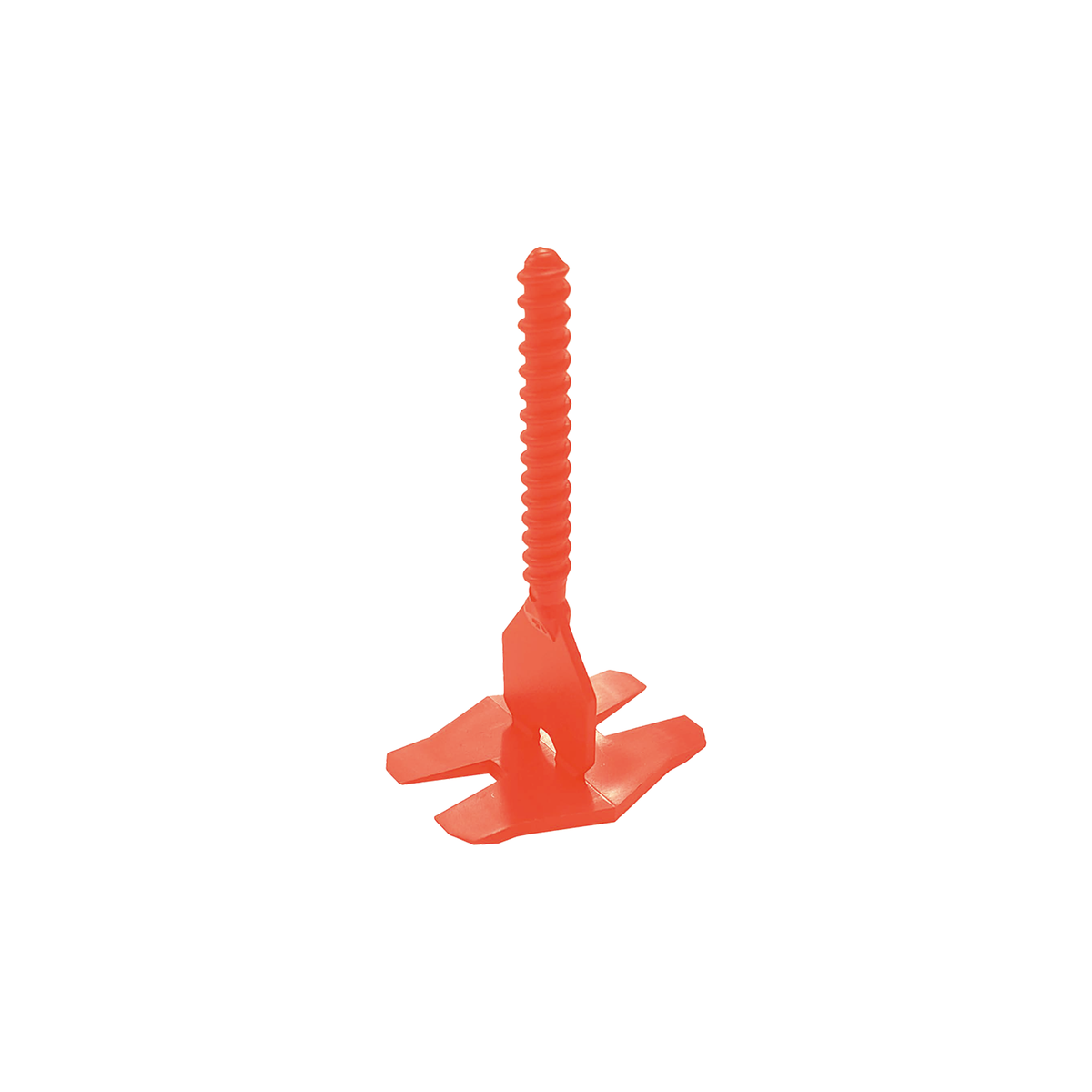

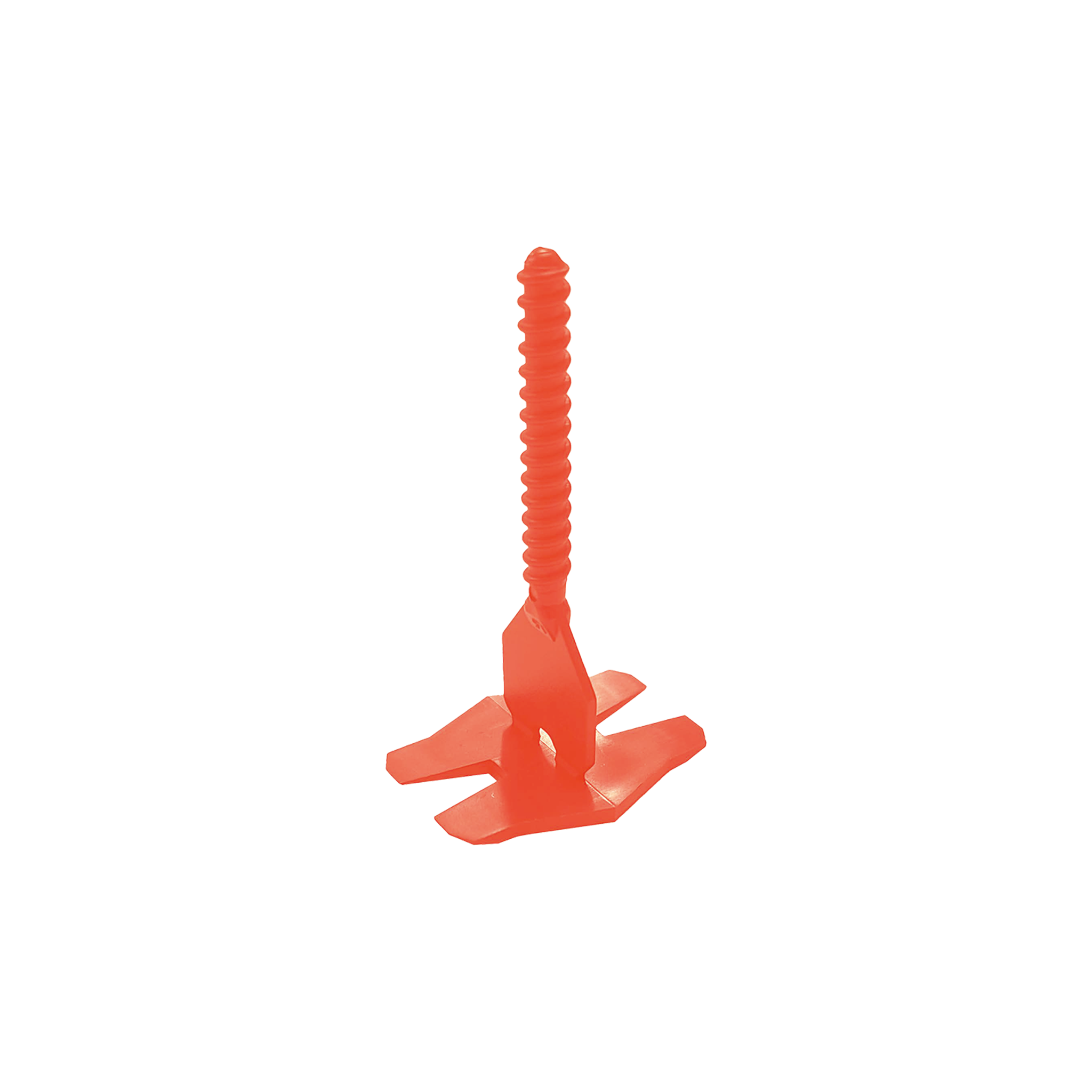

XPro Spin Tile Leveling System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Type
Leveling Spacer
Joint Size
1/32" (1 mm)
Quantity
250
Tile Thickness
3-15 mm
Installation
Walls & Floors
Tile Formats
Large-Format, Rectified & Smaller Tile
Tensioning Tools Required
No
System Compatibility
XPro Spin Leveling Caps
Why Choose This Product
Key Benefits
Reduces Tile Lippage
Applies vertical pressure to align adjoining tile surfaces
Tool-Free Tensioning
Spin caps tighten by hand without additional tensioning tools
Wall & Floor Installation
Suitable for leveling tile on vertical and horizontal surfaces
Multiple Joint Sizes
Leveling posts available for 1/32", 1/16" and 1/8" grout joints
Reusable Caps
Threaded caps can be reused across installations
Thin Post Base
Fits beneath tile while maintaining the selected joint spacing
Product Information
Product Details
Specifications
Brand
XPro
Part Number
600132
Product Type
Tile Leveling Spacer
Joint Size
1/32" (1 mm)
Quantity
250
Tile Thickness
3-15 mm
Installation Areas
Walls & Floors
Recommended Tile
Large-Format & Rectified Tile
Smaller Format Tile Compatible
Yes
Post Design
Thin Base, Non-Compressive
Cap Compatibility
XPro Spin Reusable Caps
Tensioning Tools Required
No
Material
High-Performance Plastic
About This Product
Spin Leveling System for Tile Installation
The XPro Spin Tile Leveling System helps prevent tile lippage by applying vertical pressure to align adjoining tile surfaces during installation. The system uses leveling posts positioned beneath the tile and reusable threaded caps that tighten by hand, eliminating the need for additional tensioning tools.
Large-Format and Rectified Tile Leveling
The system is primarily designed for large-format and rectified tile but can also be used with smaller formats. It accommodates tile from 3 mm to 15 mm thick and is suitable for both wall and floor installations.
Three Grout Joint Sizes
Leveling posts are available in 1/32" (1 mm), 1/16" (1.5 mm), and 1/8" (3 mm) sizes to establish consistent grout joints while leveling adjacent tiles. The thin post base fits beneath the tile, while the non-compressive design helps maintain consistent spacing during installation.
Reusable Tool-Free Spin Caps
The reusable Spin caps thread onto the leveling posts and are tightened by hand to distribute pressure across the tile surface. The system is designed for easy installation and removal without additional tools, helping installers achieve a faster and more uniform finished surface.
Common Questions
Frequently Asked Questions
What does the XPro Spin Tile Leveling System do?
The system helps prevent tile lippage by applying vertical pressure that aligns adjoining tile surfaces during installation.
What tile thickness works with the XPro Spin system?
The system is designed for tile from 3 mm to 15 mm thick.
What grout joint sizes are available?
XPro Spin leveling posts are available in 1/32" (1 mm), 1/16" (1.5 mm), and 1/8" (3 mm) sizes.
Can the XPro Spin system be used on walls and floors?
Yes. The leveling system is suitable for both wall and floor tile installations.
Does the XPro Spin system require a tensioning tool?
No. The threaded caps are tightened by hand, so an additional tensioning tool is not required.
Are XPro Spin leveling caps reusable?
Yes. The threaded caps are reusable. The leveling posts are installed beneath the tile and work with the caps during leveling.
Can the system be used with large-format tile?
Yes. It is primarily designed for large-format and rectified tile, although it can also be used with smaller tile formats.
