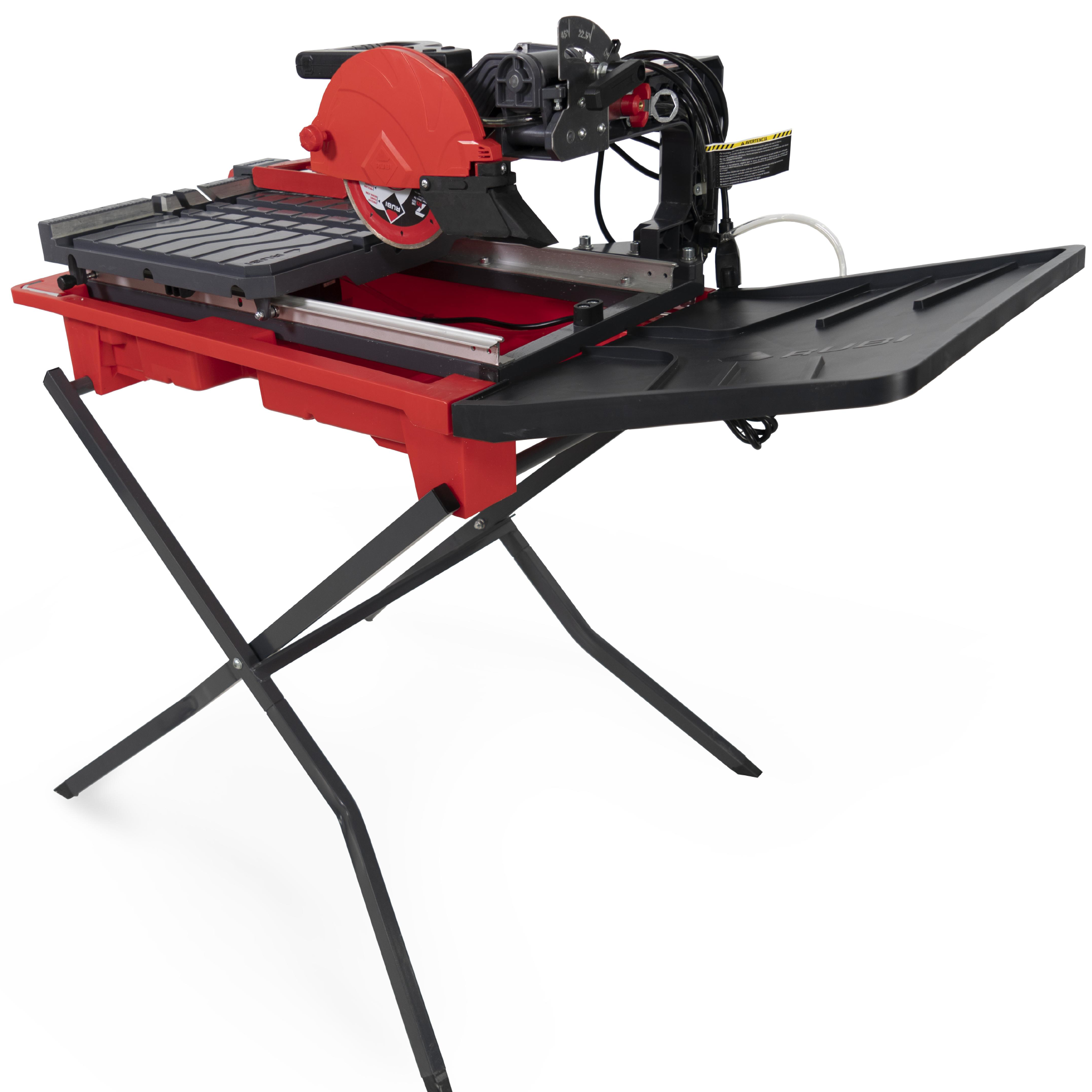

The RUBI® DT-7IN MAX is a transportable electric tile saw with a tilting cutting head designed to support straight and miter cuts with consistent finish quality. It is suitable for cutting ceramic, porcelain, stone, and glass tile in jobsite and shop environments.
Built with a foldable tubular steel support and integrated transport features, the saw is designed for easy setup, breakdown, and movement between work areas.
Key Features
- Tilting Cutting Head: Adjusts for precise 22.5° and 45° miter cuts.
- Lateral Stop with Angle Adjustment: Supports repetitive cuts with adjustment from 0° to 45°.
- Foldable Tubular Steel Support: Allows compact storage and easier transport.
- Universal Motor: Equipped with replaceable brushes for serviceability.
- Premium 7" Laser-Cut Blade Included: Designed for smooth, controlled cutting performance.
- Water Cooling System: Integrated water tank with minimum and maximum level indicators.
- Aluminum Cutting Table: Includes reinforced rear water tray extensions for material support.
Specifications
| Specification | Details |
|---|---|
| Voltage | 120V / 60Hz |
| Blade Speed | 6,000 RPM |
| Cutting Length | 24" |
| Diagonal Cutting Length | 18" |
| Cutting Height | 2 1/4" |
| Max Miter Thickness | 1" |
| Blade Diameter | 7" |
| Arbor Size | 5/8" |
| Water Tank Capacity | 4.27 gal (16.2 L) |
| Machine Dimensions | 48" x 23" x 45" |
| Weight | 56 lbs |
The RUBI® DT-7IN MAX provides controlled wet cutting and miter capability in a compact, transportable electric tile saw format.
