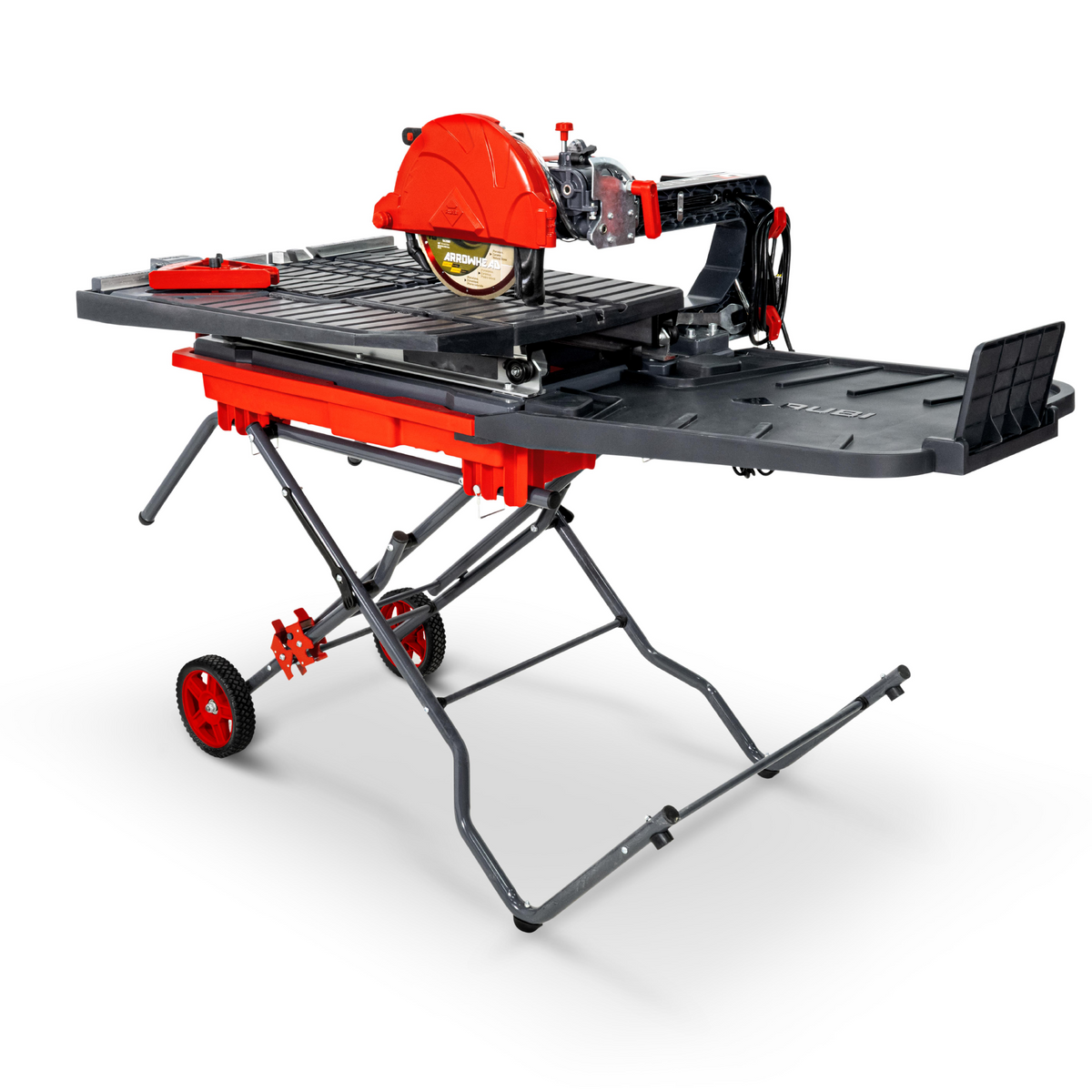

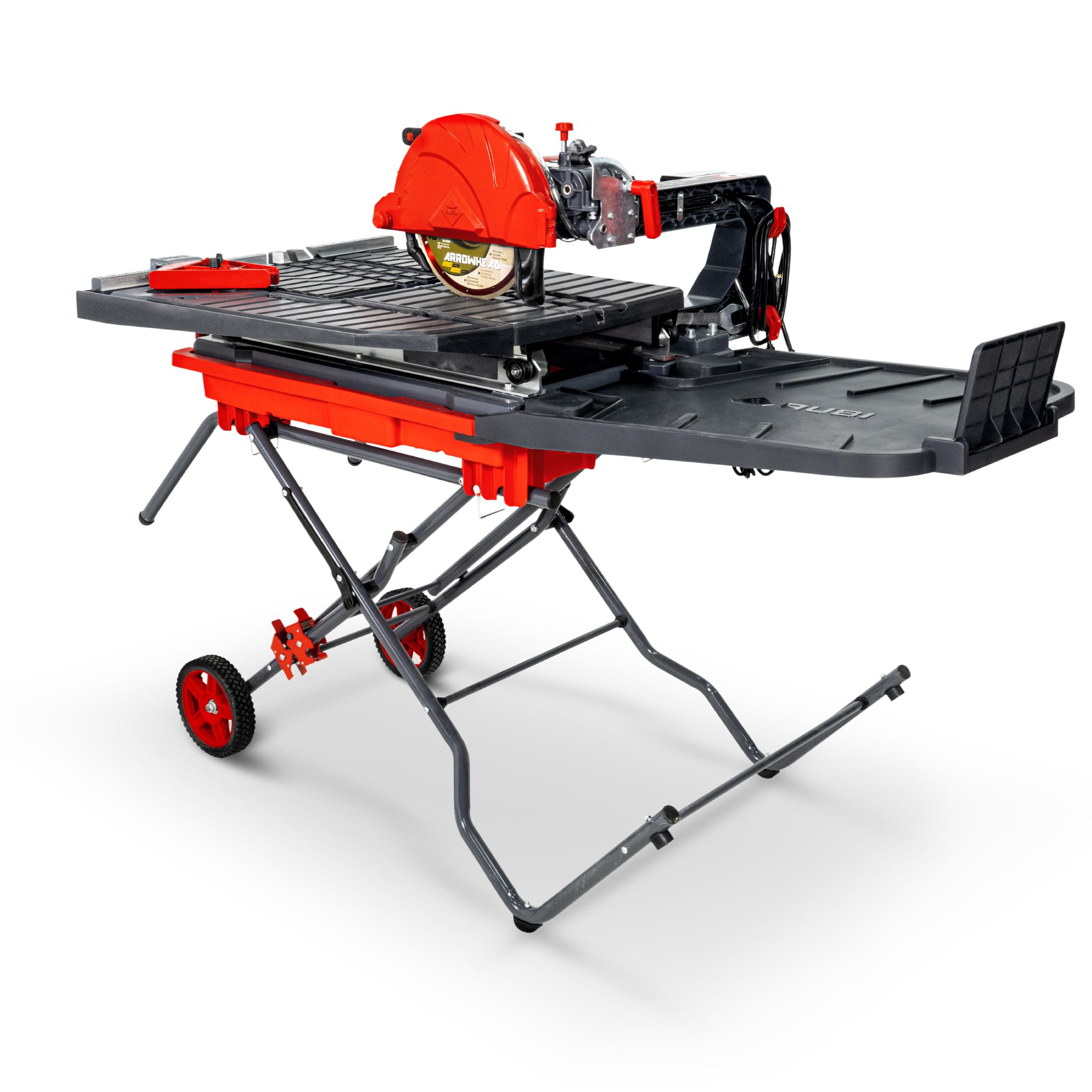

The RUBI® DT-10IN MAX is a transportable electric tile saw with a miter-capable cutting head designed for cutting stoneware, ceramic tile, porcelain, refractory materials, and similar surfaces. Its rigid construction and integrated cutting systems support accurate cuts with controlled water delivery and reduced splash during operation.
The saw features a foldable tubular steel stand with wheels for easier transport, along with an aluminum cutting table with a rubberized surface to support stable material positioning during cutting.
Key Features
- Python Cooling and Zero Dust Systems: Directs water to the cutting area to reduce splashing and improve visibility.
- Tilting Cutting Head: Adjusts for 22.5° and 45° miter cuts.
- Aluminum Cutting Table: Rubber surface supports material stability with a cutting capacity of 36".
- Expandable Cutting Capacity: Compatible with optional replaceable table (Ref. 58907) to increase cutting length to 48".
- Lateral Stop with Angle Adjustment: Adjustable from 0° to 45° for repetitive cuts.
- Laser Cutting Guide: Assists with material alignment for more precise placement.
- Integrated Water Tank: 5-gallon capacity with minimum and maximum level indicators.
- Transportable Steel Stand: Foldable tubular frame with wheels for jobsite mobility.
What’s Included
- RUBI® DT-10IN MAX tile saw
- Arrowhead 10" diamond blade
- Power cable
Specifications
| Specification | Details |
|---|---|
| Voltage | 120V / 60Hz |
| Blade Speed | 4,000 RPM |
| Cutting Length | 36" |
| Diagonal Cutting Length | 25" |
| Max Cutting Height | 3.5" |
| Max Miter Thickness | 1" |
| Blade Diameter | 10" |
| Arbor Size | 1" |
| Machine Dimensions | 62" x 68" x 49" |
| Machine Weight | 99 lbs |
The RUBI® DT-10IN MAX combines controlled water delivery, miter cutting capability, and a transportable frame to support accurate tile and stone cutting across a range of installation tasks.
