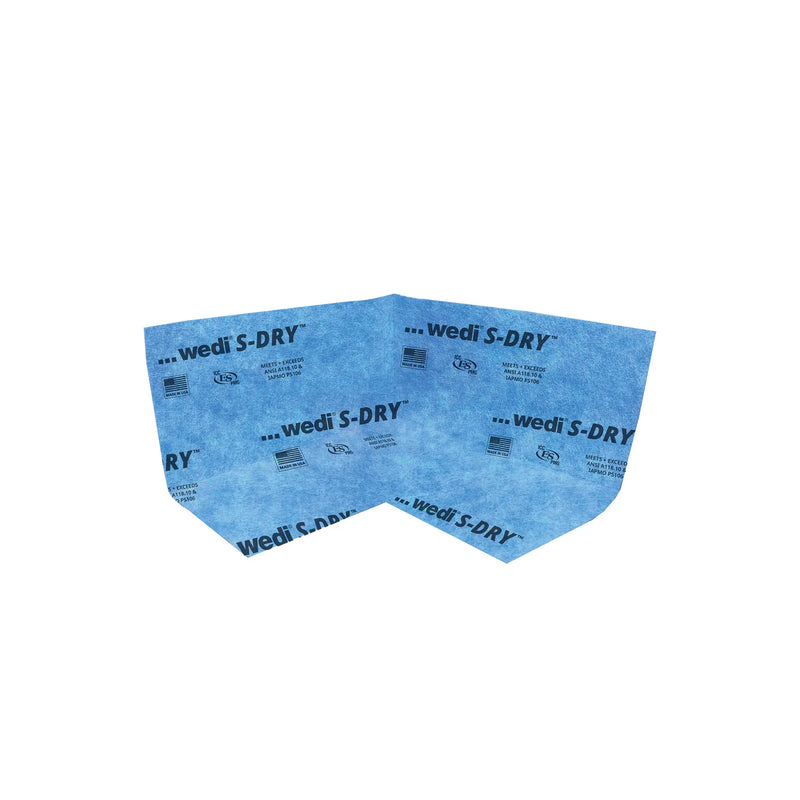

wedi S-DRY 90° Inside Corner is a preformed waterproofing component designed to seal internal corner transitions within wedi S-DRY™ shower systems. Made from the same S-DRY™ membrane material, it provides a consistent and reliable solution for waterproofing critical joints.
These inside corners are used at wall-to-floor connections, wall-to-wall joints, shower base transitions, curbs, and other internal corners. By eliminating the need to cut and fold membrane manually, they help simplify installation while reducing the risk of improper sealing.
Each corner features 5 inch by 5 inch flanges on either side of the crease, providing sufficient coverage for proper overlap. Installed using wedi S-DRY™ SEAL, the corner bonds to surrounding surfaces to create a continuous waterproof barrier across all transitions.
For angled or non-standard applications such as corner seats, 135° corner components are recommended to ensure proper fit and coverage.
Key Features
- Preformed 90° Corner: Eliminates the need for cutting and folding membrane at inside corners.
- Membrane-Based Construction: Made from wedi S-DRY™ waterproofing material.
- Critical Transition Sealing: Designed for walls, floors, curbs, and shower bases.
- 5 in. × 5 in. Coverage: Provides proper overlap for waterproofing performance.
- Installed with S-DRY™ SEAL: Creates a bonded and waterproof connection.
- Convenient Packaging: Includes 2 corners per bag.
- Made in the U.S.A.: Manufactured to meet consistent quality standards.
Specifications
| Specification | Details |
|---|---|
| Product Type | Preformed Waterproofing Inside Corner |
| Material | wedi S-DRY™ Membrane |
| Corner Type | 90° Inside Corner |
| Dimensions | 5 in. × 5 in. (Each Side) |
| Application | Wall, Floor, Base, and Curb Transitions |
| Installation Method | Applied with wedi S-DRY™ SEAL |
| Quantity | 2 Pieces per Bag |
| Item Number | US5076002 |
| Country of Origin | Made in the U.S.A. |
wedi S-DRY 90° Inside Corner provides a reliable solution for sealing internal transitions, helping ensure consistent waterproofing performance across wedi S-DRY™ shower system installations.
