BIHUI Mitre Jolly Cutting System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Power Output
1400W
Variable Speed
3,000–10,000 RPM
Cutting Angle
45°–48°
Blade Capacity
4-1/2" & 5"
Voltage
110V / 60Hz
Spindle Thread
5/8"-11
Dust Collection
Integrated Vacuum Port
Included Case
Padded Carrying Case
Why Choose This Product
Key Benefits
Accurate Bevel Cuts
Stainless steel guide maintains consistent 45°–48° cuts
Variable Speed Control
Adjust grinder speed from 3,000 to 10,000 RPM
Cleaner Work Area
Built-in vacuum port supports dust collection
Complete System
Includes grinder, guide frame and carrying case
Smooth Operation
Cushion strip protects tile during cutting
Jobsite Ready
Padded carrying case simplifies transport and storage
Product Information
Product Details
Specifications
Brand
BIHUI®
Part Number
LFMBA
UPC
6973702584083
Product Type
Guided Miter Cutting System
Power Output
1400W
Voltage
110V / 60Hz
Amperage
12 Amp
Variable Speed Range
3,000–10,000 RPM
Blade Capacity
4-1/2" & 5"
Spindle Thread
5/8"-11
Cutting Angle Range
45°–48°
Guide Frame Material
Stainless Steel
Guide Feature
Cushion Strip
Dust Collection
Integrated Vacuum Port
Included Grinder
5" Variable-Speed Angle Grinder (AG1400A)
Included Components
Mitre Cutting Frame, Stainless Steel Guide, Padded Carrying Case
Application
Miter Cutting Tile & Stone
About This Product
Guided Miter Cutting System for Tile and Stone

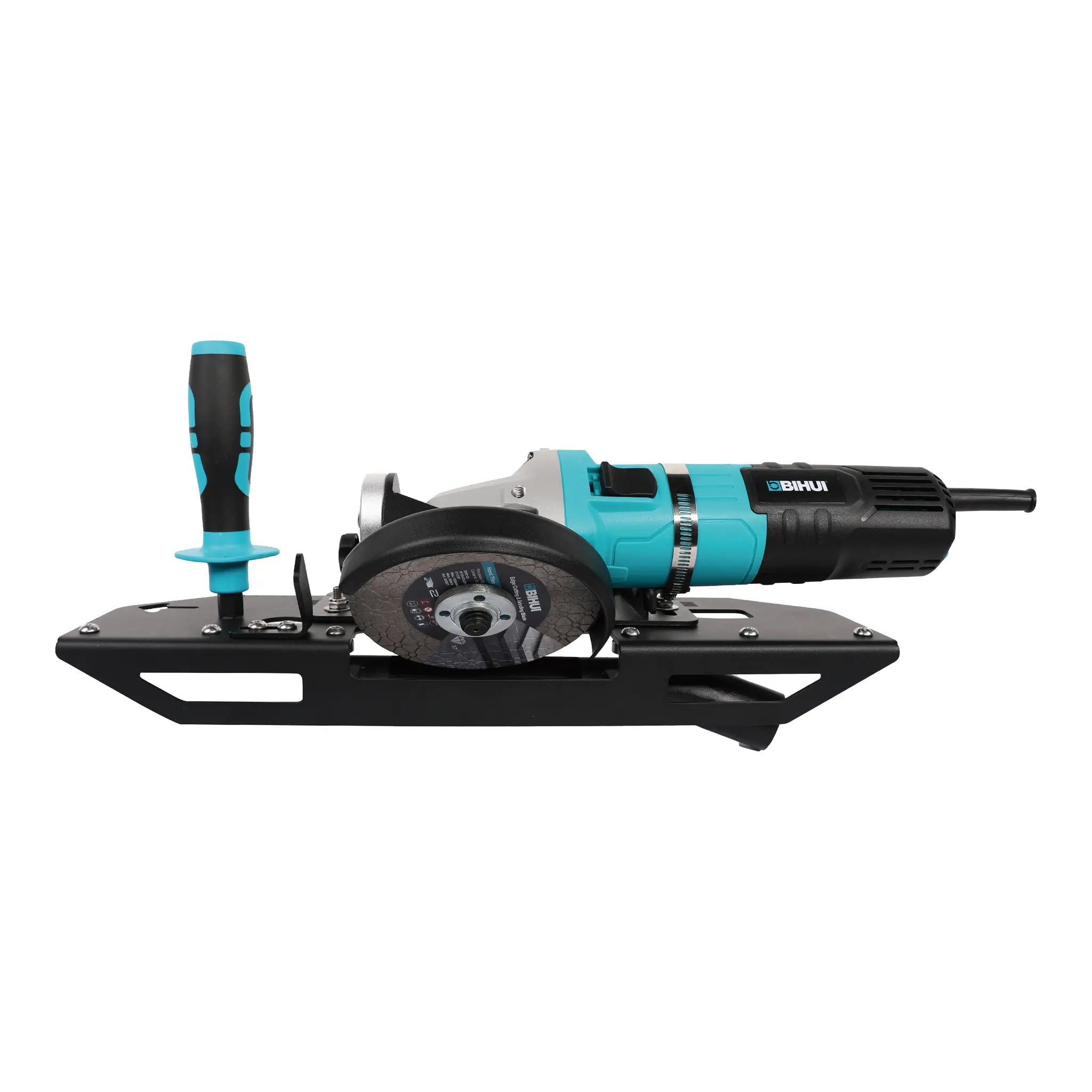

The BIHUI® Mitre Jolly Cutting System is a guided angle grinder system designed to produce accurate miter cuts on tile and stone. It combines a 5" variable-speed angle grinder with a stainless steel guide frame that maintains consistent bevel cuts from 45° to 48°.
Stainless Steel Guide Frame with Dust Collection
The guide frame features a stainless steel construction with an integrated cushion strip that rides on the tile surface to promote smooth movement during cutting. A built-in dust collection port allows connection to a vacuum for improved dust control while cutting.
Complete Cutting System Ready for the Jobsite
The system includes a 5" variable-speed angle grinder, mitre cutting frame, stainless steel guide with cushion strip, and a padded carrying case for transport and storage. The 1,400W grinder operates from 3,000 to 10,000 RPM and accepts both 4-1/2" and 5" blades with a standard 5/8"-11 spindle.
Common Questions
Frequently Asked Questions
What materials can the BIHUI Mitre Jolly Cutting System cut?
The system is designed for producing miter cuts on tile and natural stone.
What cutting angles does the guide support?
The guide frame supports bevel cutting from 45° to 48°.
What blade sizes are compatible with the included grinder?
The grinder accepts both 4-1/2" and 5" blades with a 5/8"-11 spindle.
Does the system support dust collection?
Yes. The guide frame includes an integrated dust collection port that can be connected to a vacuum.
What is included with the Mitre Jolly Cutting System?
The system includes a 5" variable-speed angle grinder, mitre cutting frame, stainless steel guide with cushion strip, and a padded carrying case.
What is the grinder's speed range?
The included 1,400W grinder features variable speeds from 3,000 to 10,000 RPM.
